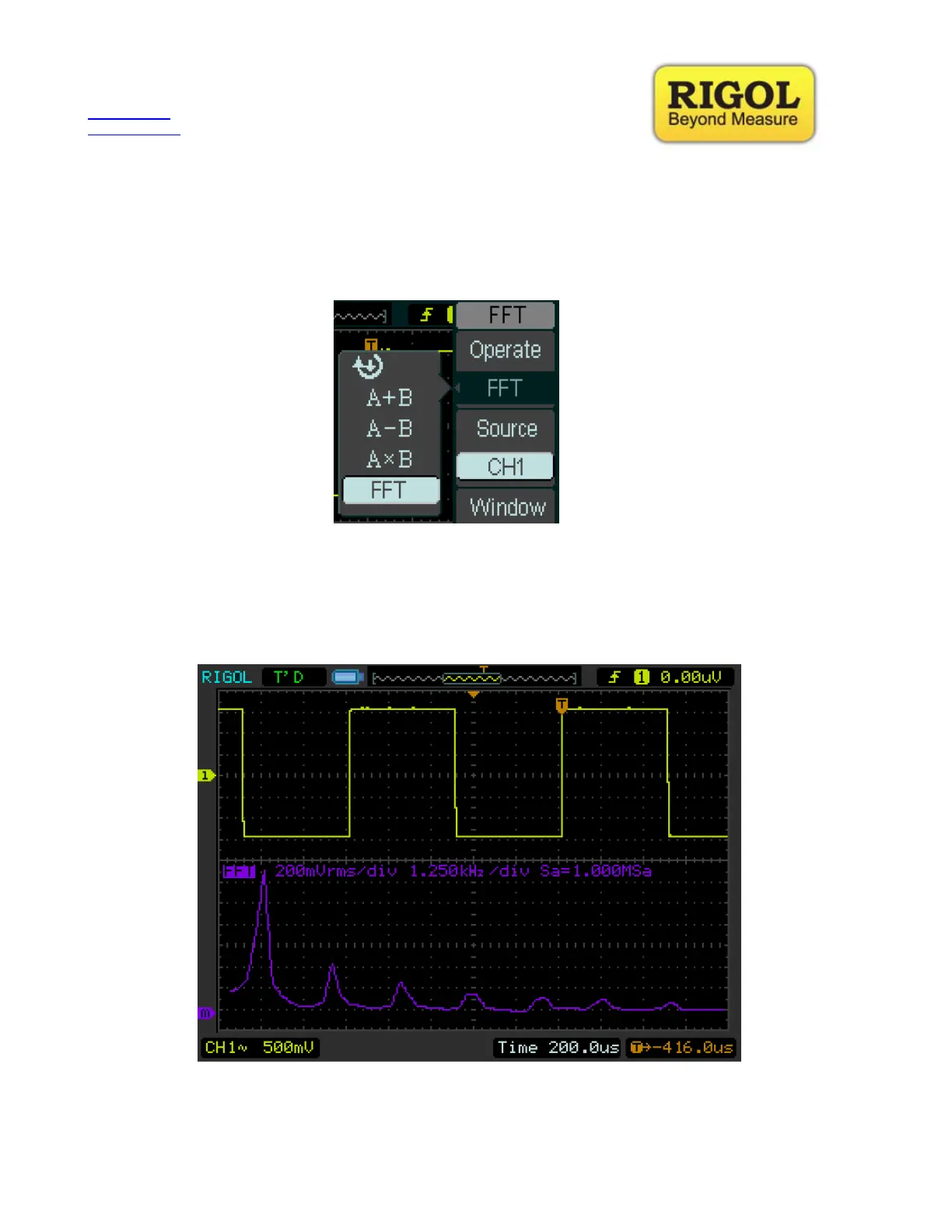

Pressthe“MATH”button,amenuwillappearontheside,thenselectFFT
andsetthesourcetoChannel1:


AFastFourierTransformofthecurrentsignalonChannel1willappearinthe
Purplecolorbelowthesquarewave.



