DSA1000&DSA1000A Options&Accessories

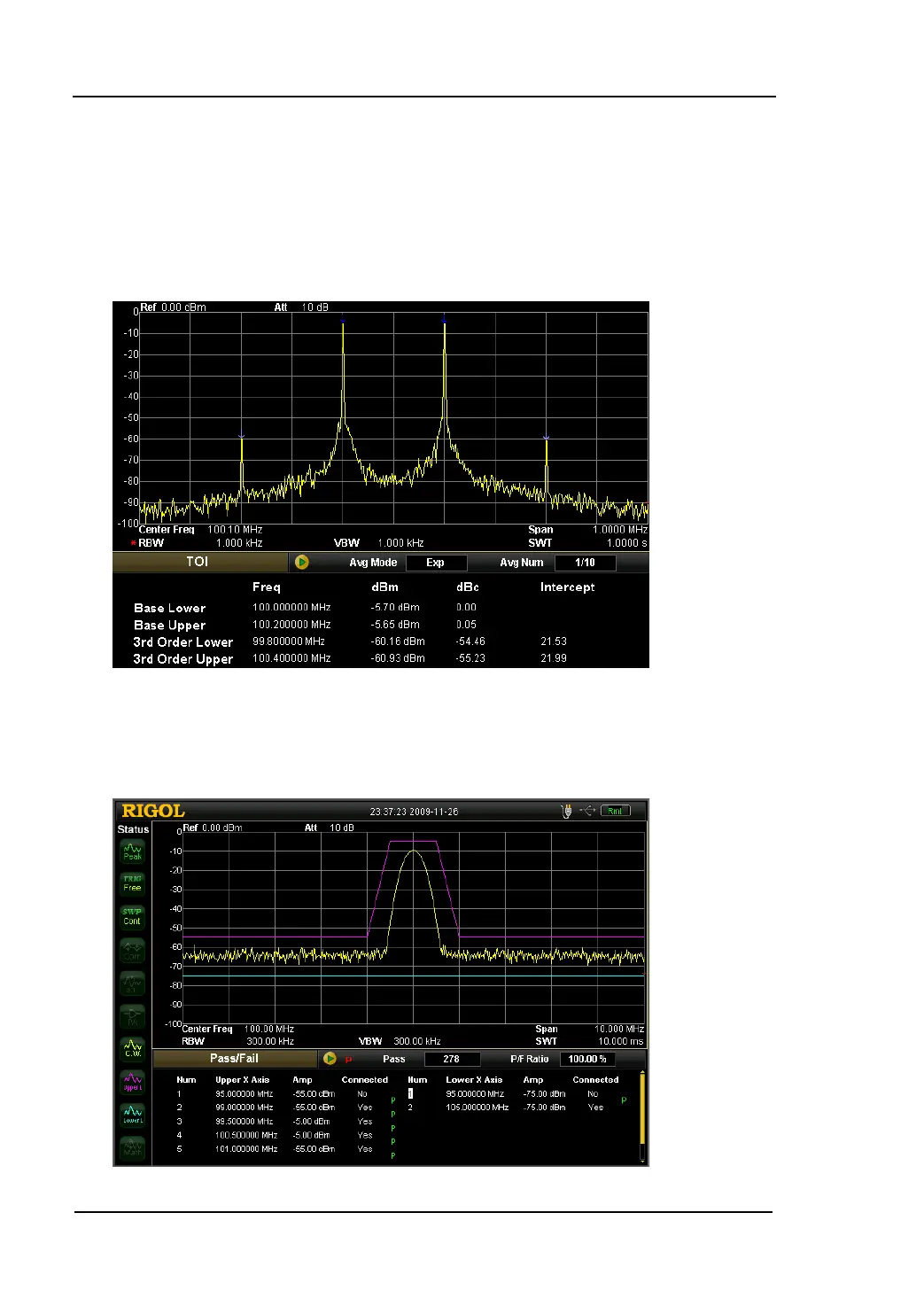

8. TOI (Third Order Intermodulation)
Measures the parameters of the TOI production generated by two signals which
have the same amplitude and similar frequency. The measured results include the
frequency and amplitude of the Base Lower, Base Upper, 3rd Order Lower and 3rd
Order Upper signals, as well as the Intercept of both the 3rd Order Lower and 3rd
Order Upper signals.
9. Pass/Fail
Compares the measured curve with the pre-edited, if the related rules are met,
the result will be “Pass”, or else is “Fail”.
