Rigol DSA832 User Manual

RIGOL Chapter 3 Remote Control
User’s Guide for DSA800/E Series
3-12
name is empty ). In addition, you can click to reset the
password.
3. Remote Control via GPIB
1) Connect the devices
Connect the analyzer to the PC (configured with GPIB card) using
RIGOL USB-GPIB interface converter (option).
2) Install the device driver of the GPIB card
Install the driver of the GPIB card connected to the PC.
3) Set the GPIB address
Set the GPIB address of the analyzer according to the description in
“GPIB” of “I/O Settings”.
4) Search device resource
Start-up Ultra Sigma and click
to open the panel as shown
in the figure below. Then, click “Search” and the software starts
searching for the GPIB device resources connected to the PC
automatically. When a GPIB resource is found, its device source
descriptor will be displayed on the right side of the panel.

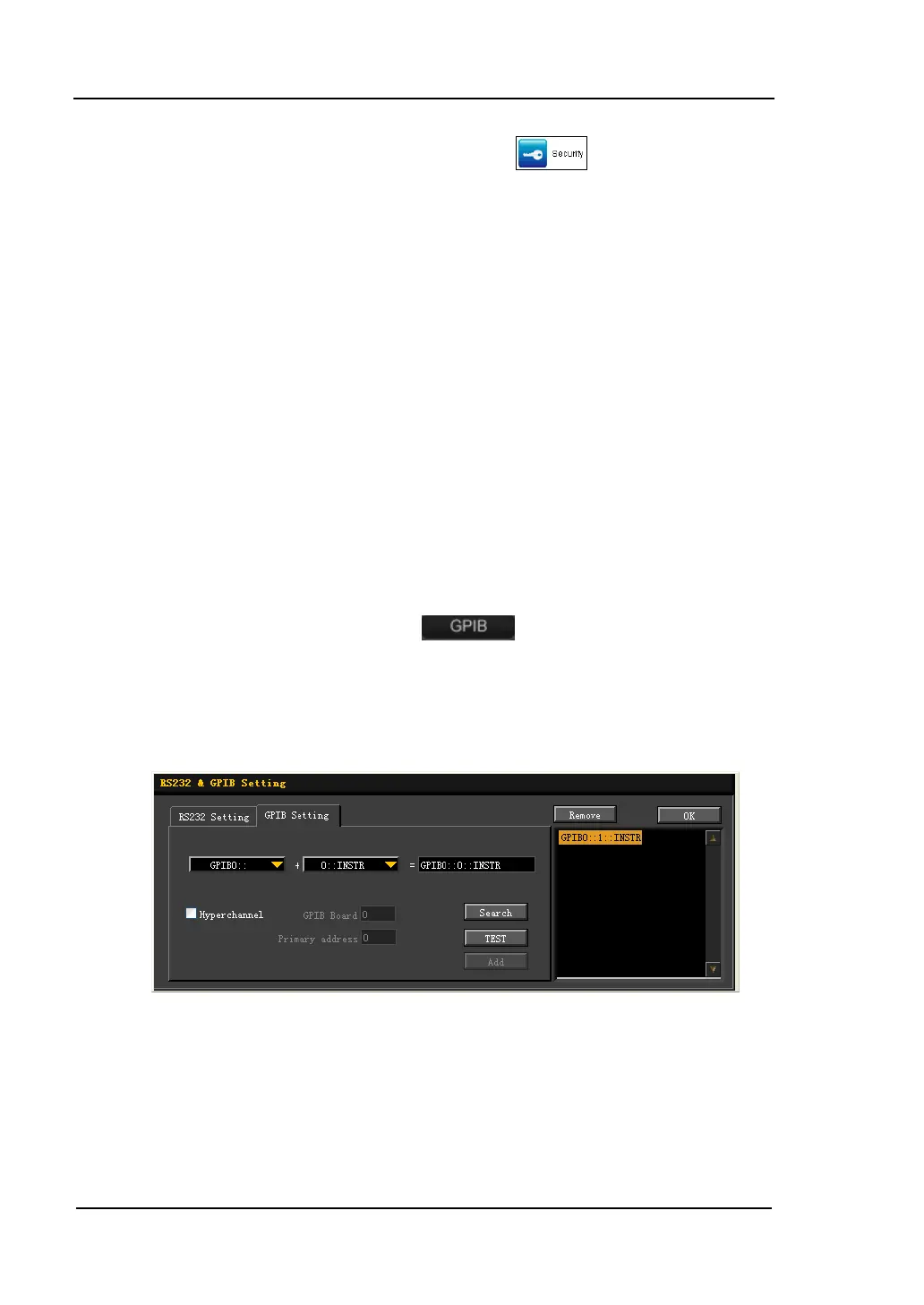

Figure 3-7 GPIB Setting
If resources cannot be found automatically:
 Select the GPIB card address of the PC and the GPIB address of the
analyzer from the “GPIB::” and “INSTR::” dropdown boxes
separately.
