Chapter 2 Front Panel Operation RIGOL
User’s Guide for DSA800/E Series
2-43
Freq (Hz)
Ampl (dBm)
Start Freq Stop Freq
TG Output
TG Level
Power
Range

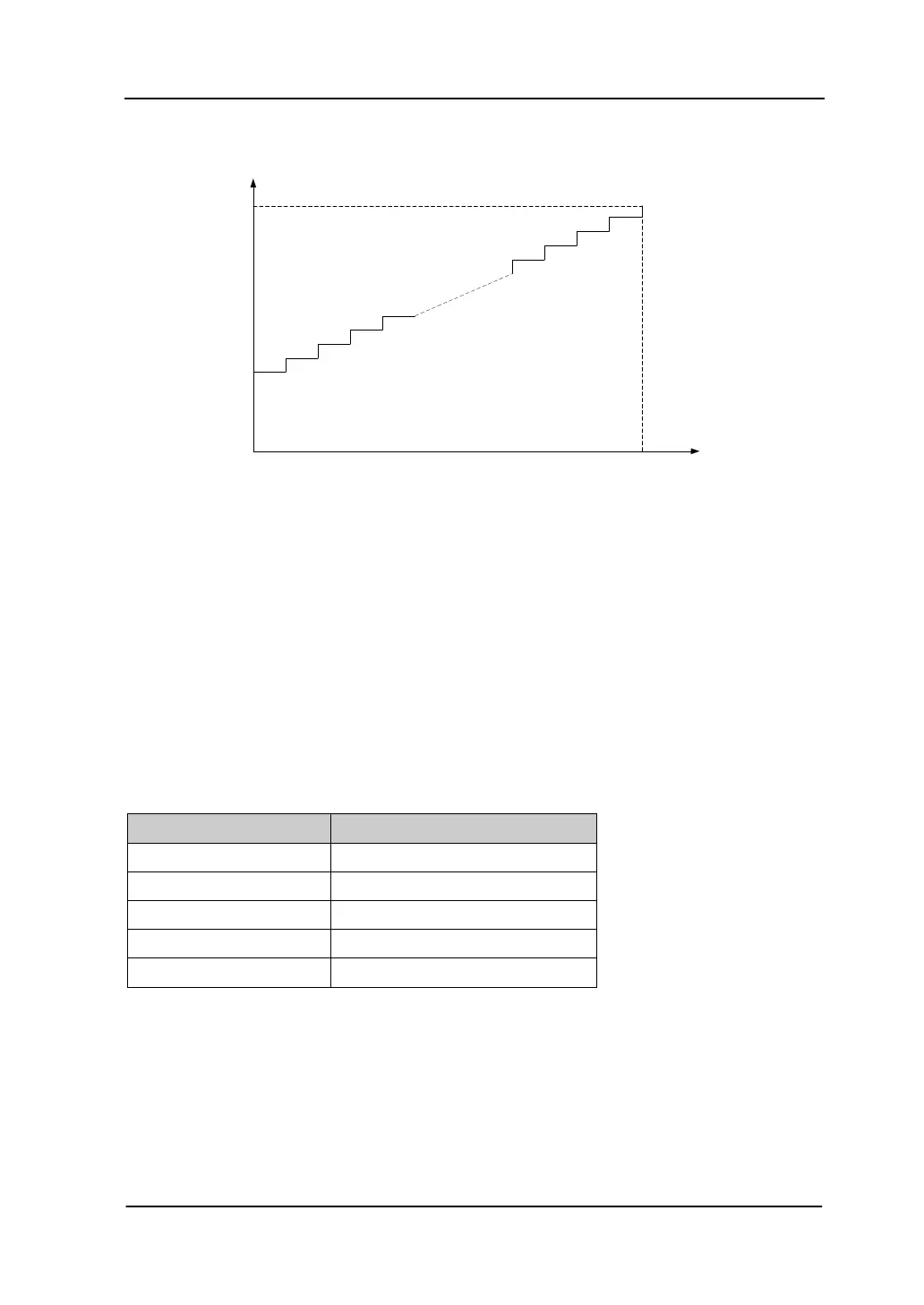

Figure 2-12 Power Sweep
Power Range (Only for DSA815)
Set the output power range of the TG in power sweep mode. This parameter
together with the TG level forms the boundary parameters in power sweep mode.
You can use the numeric keys, knob or direction keys to modify this parameter. For
more details, please refer to “Parameter Setting”.
Table 2-25 Power Range of TG
Parameter
Explanation
Default
0 dB
Range 0 dB to 20 dB
Unit dB
Knob Step 1 dB
Direction Key Step 10 dB
