Rinnai Control-R RWM101 User Manual

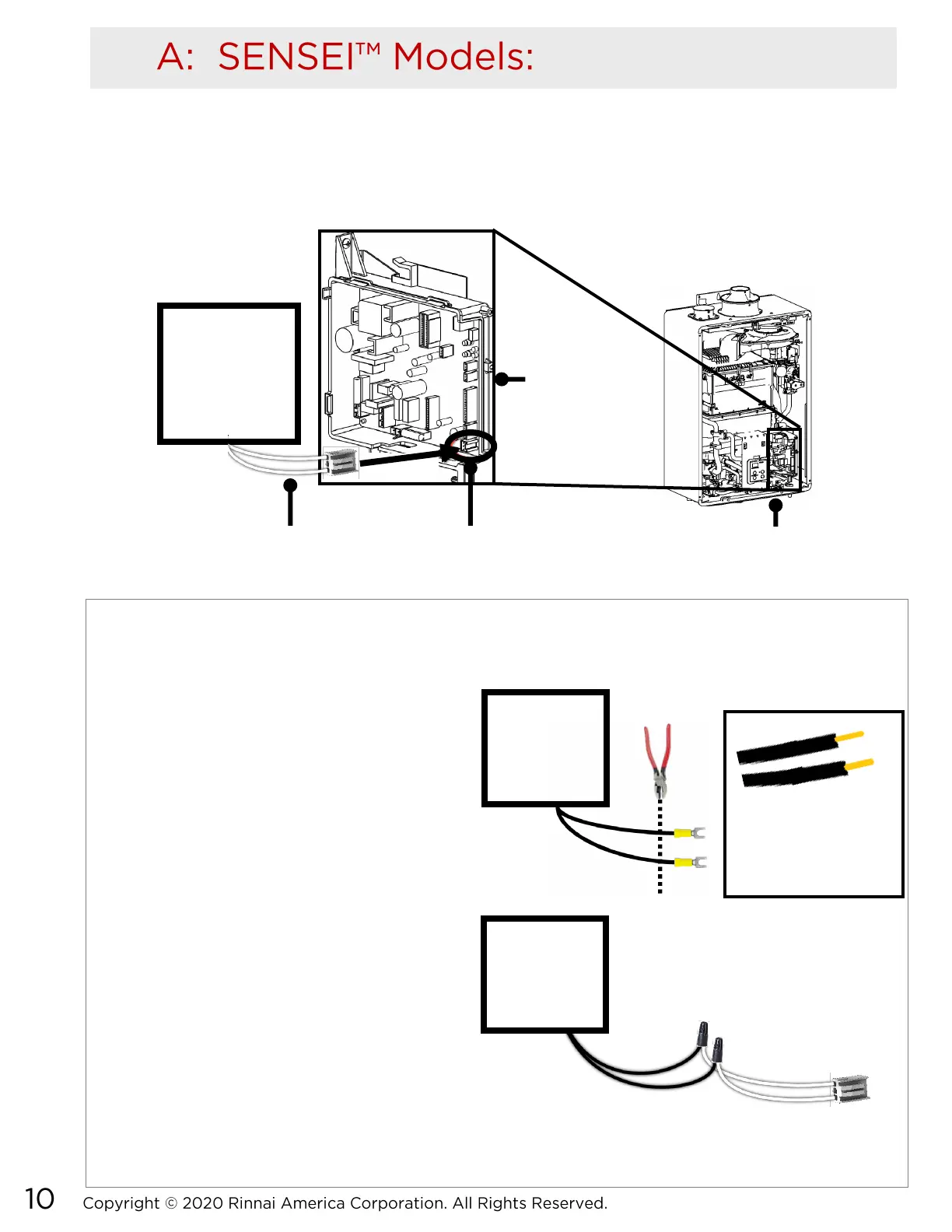

Route the module controller cable through the grommet
(located on the bottom, right side of the unit) and connect to
the mating terminal on the bottom, right side of the PC
Board.
❸
Important: If your module wires include spade end
connectors, follow the steps below:
• Cut the spade end
connectors off the two
module wires. Then,
strip the insulation off
both ends.
• Connect the module
cable to the SENSEI™
controller cable
(included in water heater
packaging or sold
separately) using wire
nuts or other approved
wire connectors.
Strip
insulation
MODULE
Controller
Cable
MODULE
Wire
Nuts
PC
Board
MODULE
Controller
Cable
Mating
Terminal
Grommet
Under Unit
