Rinnai E- Series User Manual

33 008082013GW

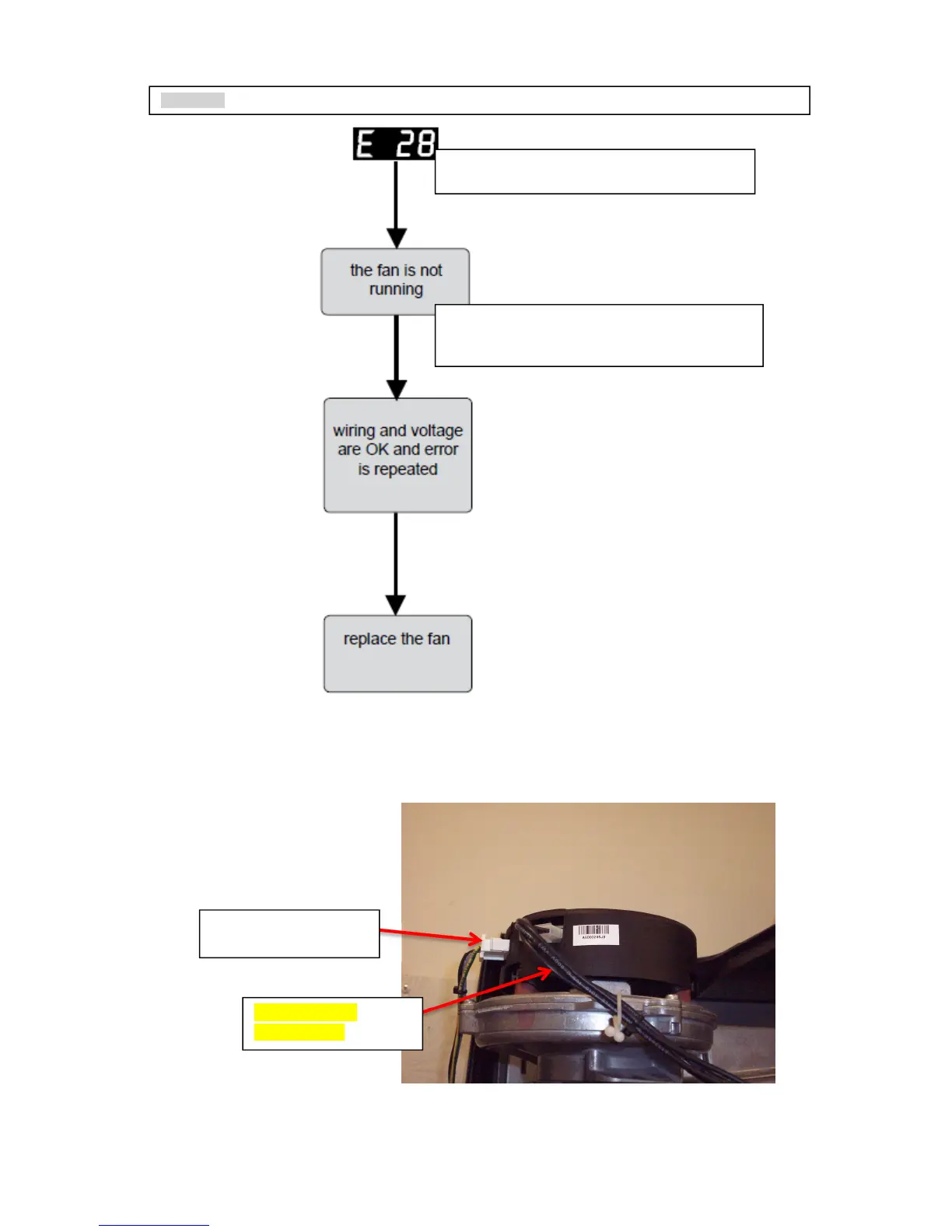

No feedback signal from fan motor.
Check the wiring harness to the fan motor and control
unit. Check power supply to motor during combustion
process, should be 24 volts DC.
Fan motor wiring harness
constant 24 volts DC.
Tachometer cable
Feedback signal
WARNING:
Turn off power
s
upply
to the boiler before removing or installing any parts.

Rinnai E- Series Specifications

General

Fuel Type	Natural Gas or Propane
Installation	Wall-mounted
Type	Condensing
Venting	Direct Vent
Dimensions	Varies by model
Weight	Varies by model
Warranty	12 years heat exchanger, 5 years parts
Heating Capacity	15, 000 - 199, 000 BTU/h
Vent Type	Direct Vent
