DELUXE WATER CONTROLLERS
ABOUT THE DELUXE KITCHEN WATER CONTROLLER (MC-100V)
HOW TO USE THE DELUXE KITCHEN WATER CONTROLLER (MC-100V)
Setting The Clock
The clock is a 12 hour AM/PM style display. To set the time press the 'Mode' button twice, this
places the controller into clock setting mode, in the digital monitor the word ‘Clock’ will be displayed
and the clock digits will flash, if this is the first time the clock has been set the starting time will be AM
12:00.
Use the or buttons to select the desired time, holding these buttons down continuously cycles
the digits. When you get close to the time you wish to set, press the button intermittently to avoid going
further than the desired time.
Turning on the Controller
If the controller is switched off (No digits other than the clock digits
displayed in the digital monitor) press the On/Off button once.
The On/Off and Transfer buttons illuminate to indicate that the hot
water unit will be ready to supply hot water once a hot water tap is
opened.
If more than one controller is fitted press the ‘Transfer’ button to
transfer priority to the desired controller.
The MC-100V controller is not water resistant, avoid direct exposure to water or
steam as these conditions may cause damage.

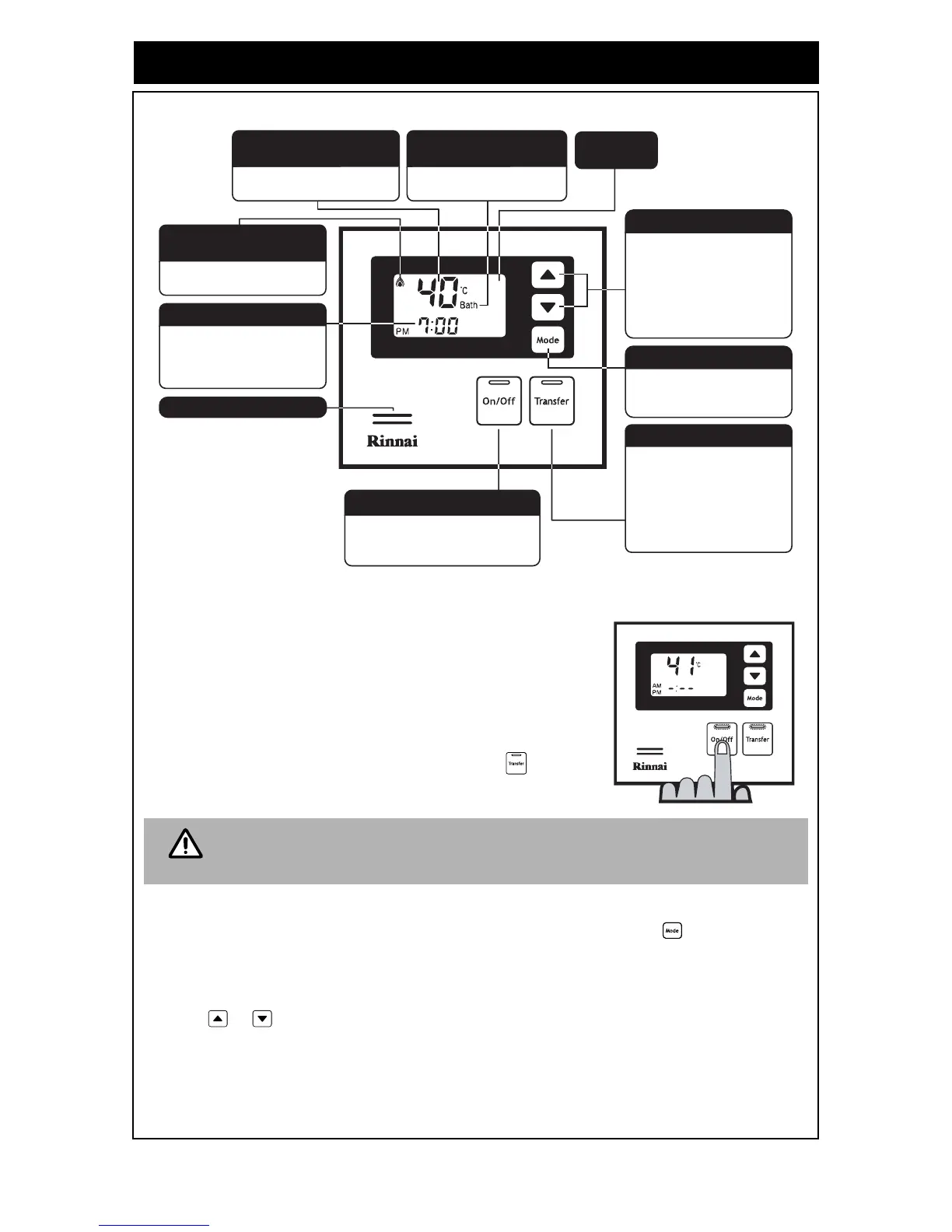

Used to switch the water heater on and
off. This button is illuminated when the
hot water heating system is on.
ON/OFF BUTTON
DIGITAL
MONITOR
Indicates that the water heater is in
operation and delivering hot water.
WATER HEATER
'In Use' INDICATOR
SPEAKER
When in Normal mode these
buttons are used to select the
water temperature.
In 'Setup' mode these buttons are
used to adjust the voice prompt
volume and to set the clock.
UP AND DOWN BUTTONS
Used to swith the controller
between Normal, Voice or Clock
modes.
MODE BUTTON
Indicates the selected hot water
temperature.
WATER TEMPERATURE
INDICATOR
Indicates that the Shower Saver /
Bath Fill function is operating.
SHOWER SAVER /
BATH FILL INDICATOR
12 Hour AM / PM clock display.
In the event of a fault, codes for
error messages will flash here.
CLOCK
Used to transfer control priority
between the temperature
controllers. The controller with
priority has command of the hot
water delivery temperature. This
button is illuminated when this
controller has priority.
TRANSFER BUTTON
