38 Manual - Rinnai Condensing Water Heaters

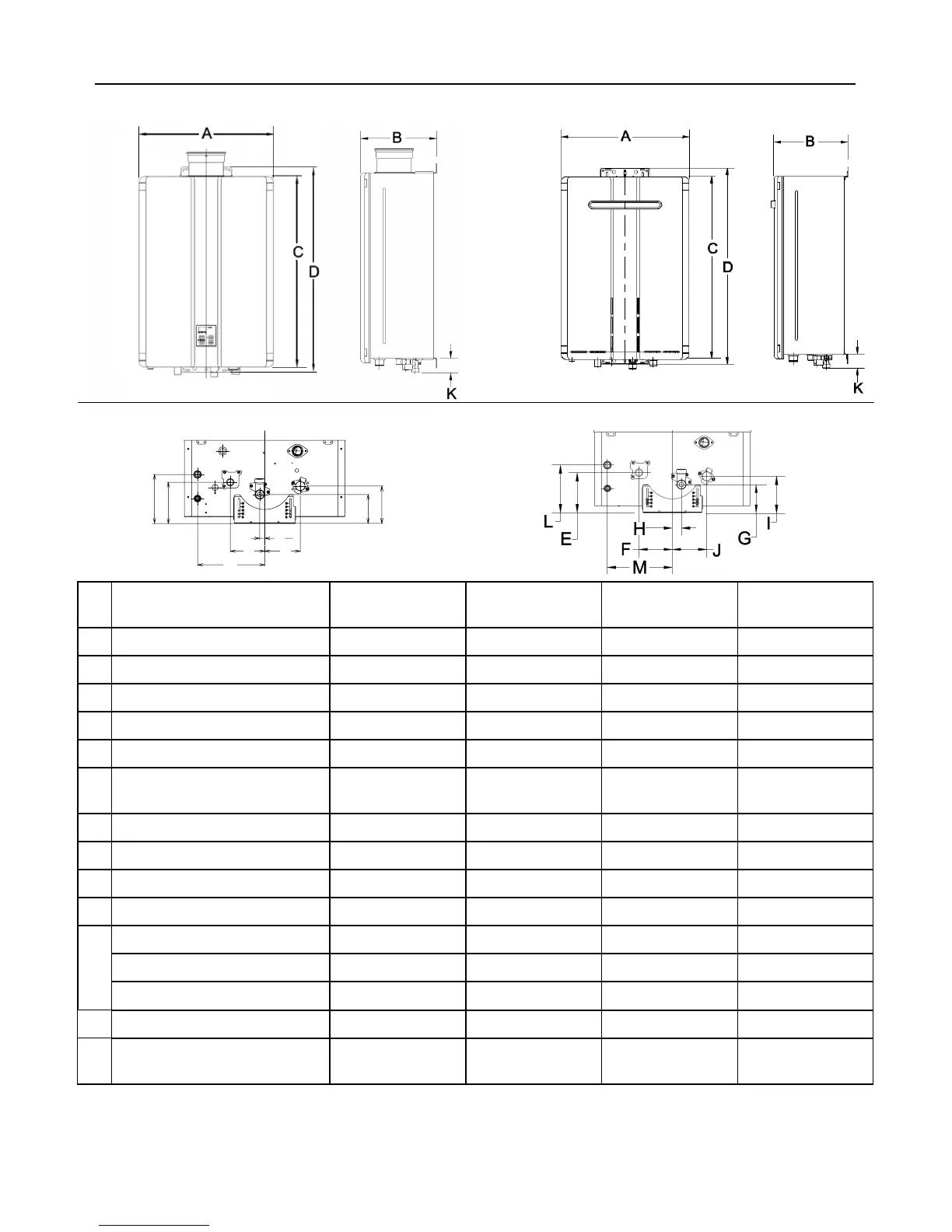

Dimensions
DI
M
DESCRIPTION
RC80HPi
in (mm)
A Width 18.5 (470)
B Depth 10.5 (266.9) *
C Height - Unit 26.4 (670)
D Height - with brackets 28.5 (723.2)
E Hot Water Outlet - from wall 4.3 (110) *
F Hot Water Outlet - from
center
3.9 (100)
G Cold Water Inlet - from wall 2.8 (70.0) *
H Cold Water Inlet - from center 0.5 (12.8)
I Gas Connection - from wall 3.9 (99) *
J Gas Connection - from center 4.1 (103.2)
K
From base to gas connection 1.6 (40.2)
From base to cold connection 2.0 (50.2)
From base to hot connection 1.6 (41.2)
L Condensate Dain - from wall 5.2 (132.6) *
M
Condensate Drain - from
center
7.7 (195)
RC80HPe
in (mm)
18.5 (470)
10.7 (271.9)
26.4 (670)
28.4 (721.6)
4.5 (115)
3.9 (100)
3.0 (75.0)
0.5 (12.8)
4.1 (104)
4.1 (103.2)
1.6 (40.2)
2.0 (50.2)
1.6 (41.2)
5.4 (137.6)
7.7 (195)
RC98HPi
in (mm)
18.5 (470)
10.5 (266.9) *
26.4 (670)
28.5 (723.2)
4.3 (110) *
3.9 (100)
2.9 (74.6) *
1.1 (27.7)
3.9 (99) *
4.1 (103.2)
1.6 (40.2)
2.0 (50.2)
1.6 (41.2)
5.2 (132.6) *
7.7 (195)
RC98HPe
in (mm)
18.5 (470)
10.7 (271.9)
26.4 (670)
28.4 (721.6)
4.5 (115)
3.9 (100)
3.1 (79.6)
1.1 (27.7)
4.1 (104)
4.1 (103.2)
1.6 (40.2)
2.0 (50.2)
1.6 (41.2)
5.4 (137.6)
7.7 (195)
* This is the minimum dimension from the wall. The wall bracket is adjustable to allow an additional 1.57 inches
(40 mm).
RC80HPi, RC98HPi RC80HPe, RC98HPe
RC98HPi, RC98HPe RC80HPi, RC80HPe
L
E
M
F
H
J
G
I
