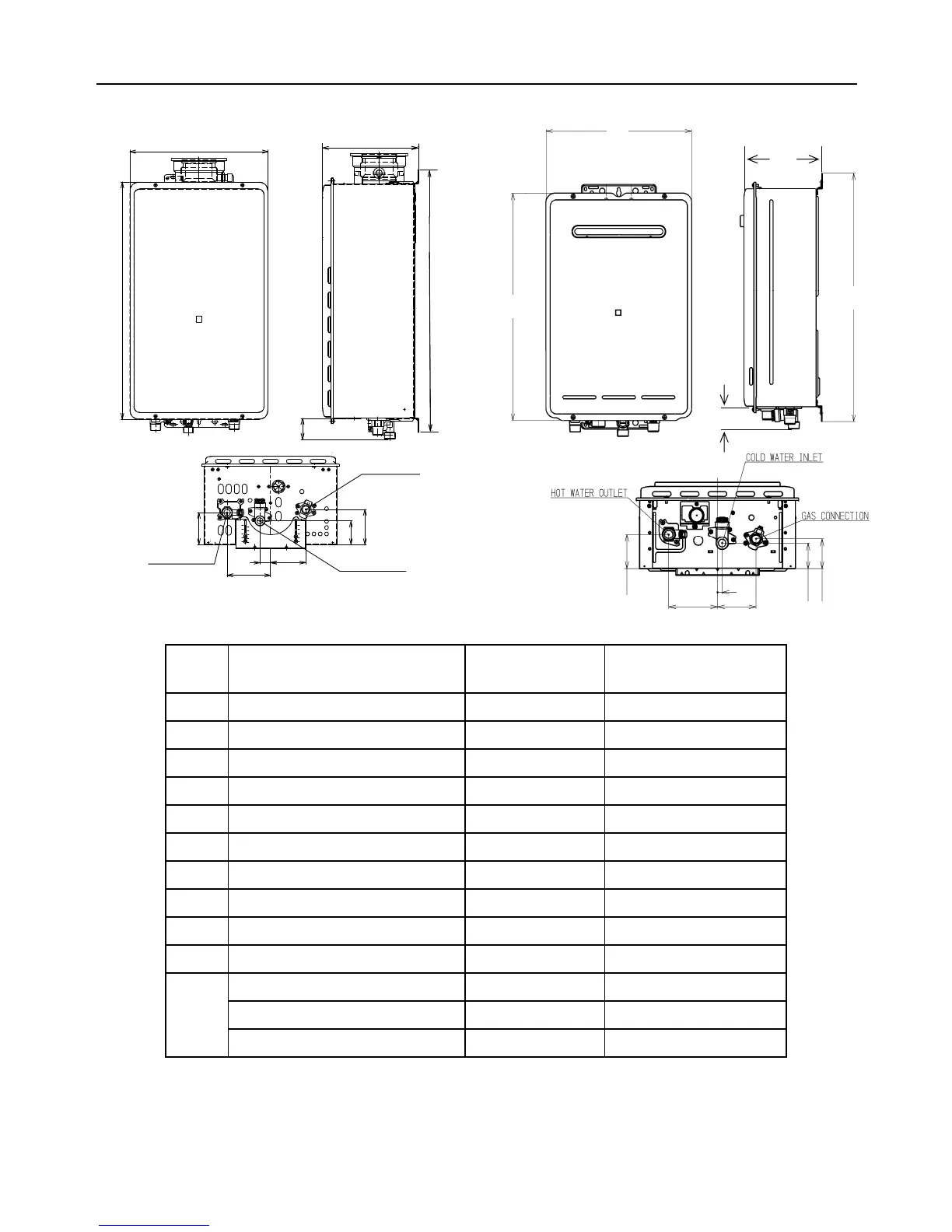

Dimensions
DIM DESCRIPTION
RV53i
in (mm)
RV53e
in (mm)
A Width 13.8 (350) 13.8 (350)
B Depth * 9.2 (234) 7.3 (186)
C Height - Unit 23.6 (600) 20.9 (530)
D Height - with brackets 24.7 (627) 22.5 (571)
E Hot Water Outlet - from wall * 3.6 (91) 2.8 (72)
F Hot Water Outlet - from center 4.3 (110) 4.1 (105)
G Cold Water Inlet - from wall * 2.8 (70) 2.1 (53)
H Cold Water Inlet - from center 1.1 (27) 0.4 (10)
I Gas Connection - from wall * 3.9 (99) 2.4 (62)
J Gas Connection - from center 3.5 (89) 3.3 (83)
K
From base to gas connection 1.6 (41) 1.6 (40)
From base to cold connection 2.0 (51) 2.0 (50)
From base to hot connection 1.7 (42) 1.6 (42)
* This is the minimum dimension from the wall. The wall bracket is adjustable to allow an additional 1.57 inches
(40 mm).
RV53i
E
F J
H
I G
D
B
K
C
A
RV53e
A
C
B
K
H
J
F
E
G
I
GAS CONNECTION
COLD WATER INLET
HOT WATER OUTLET
