WORK INSTRUCTION M500-605-100-M01 Rev 1.00
Page 2 M500-605-100-M01

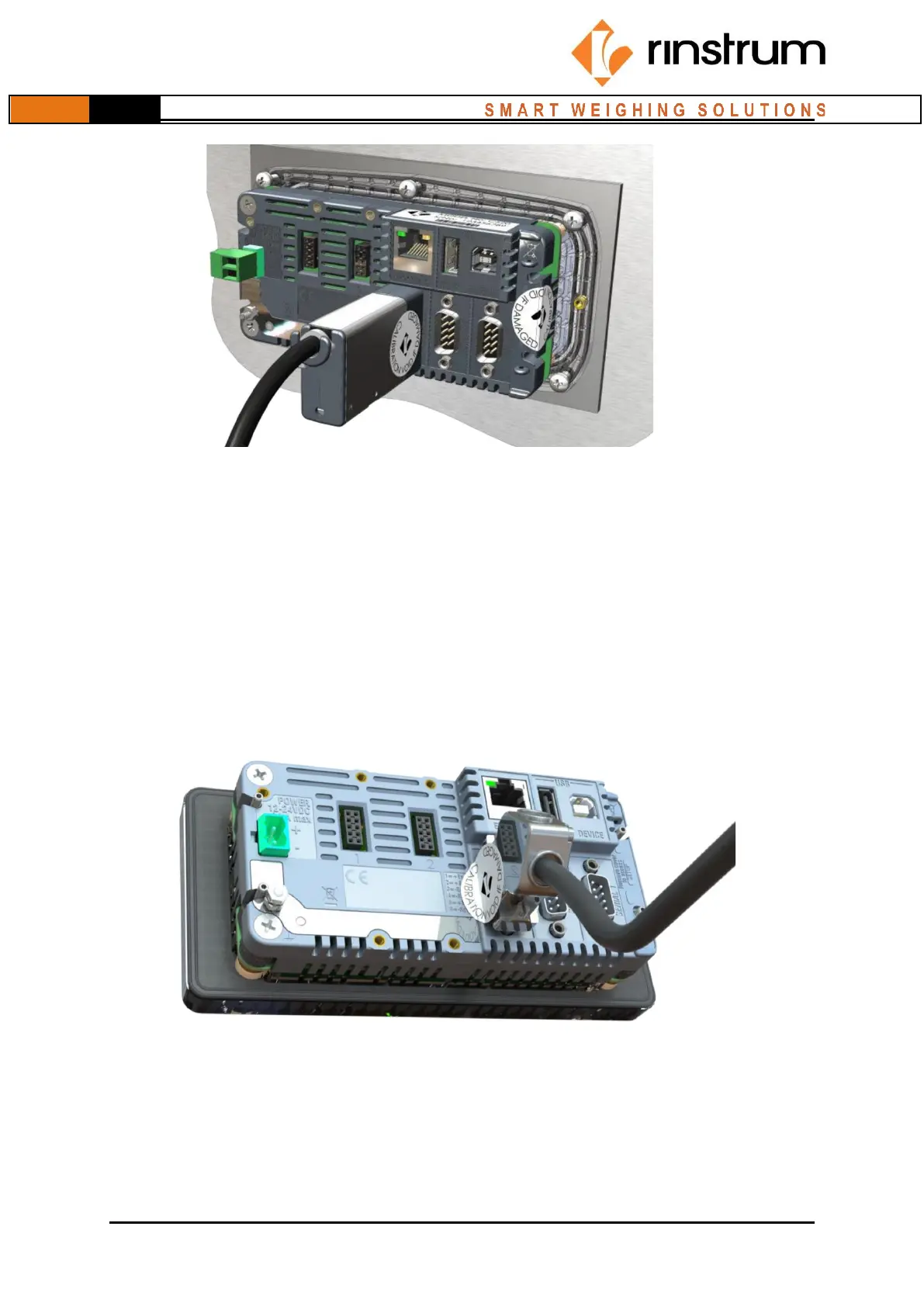

Figure 1: Setup Switch and pluggable screw terminal load cell connection sealing
with a sticker.
3. Either
• Place the load cell connector adaptor cover over the load cell connector
adaptor and place a sticker across the load cell connector adaptor cover as
shown in Figure 1.
Or
• Place a sticker across the load cell connector as shown in Figure 2
