WORK INSTRUCTION M500-605-100-M01 Rev 1.00
Page 3 M500-605-100-M01

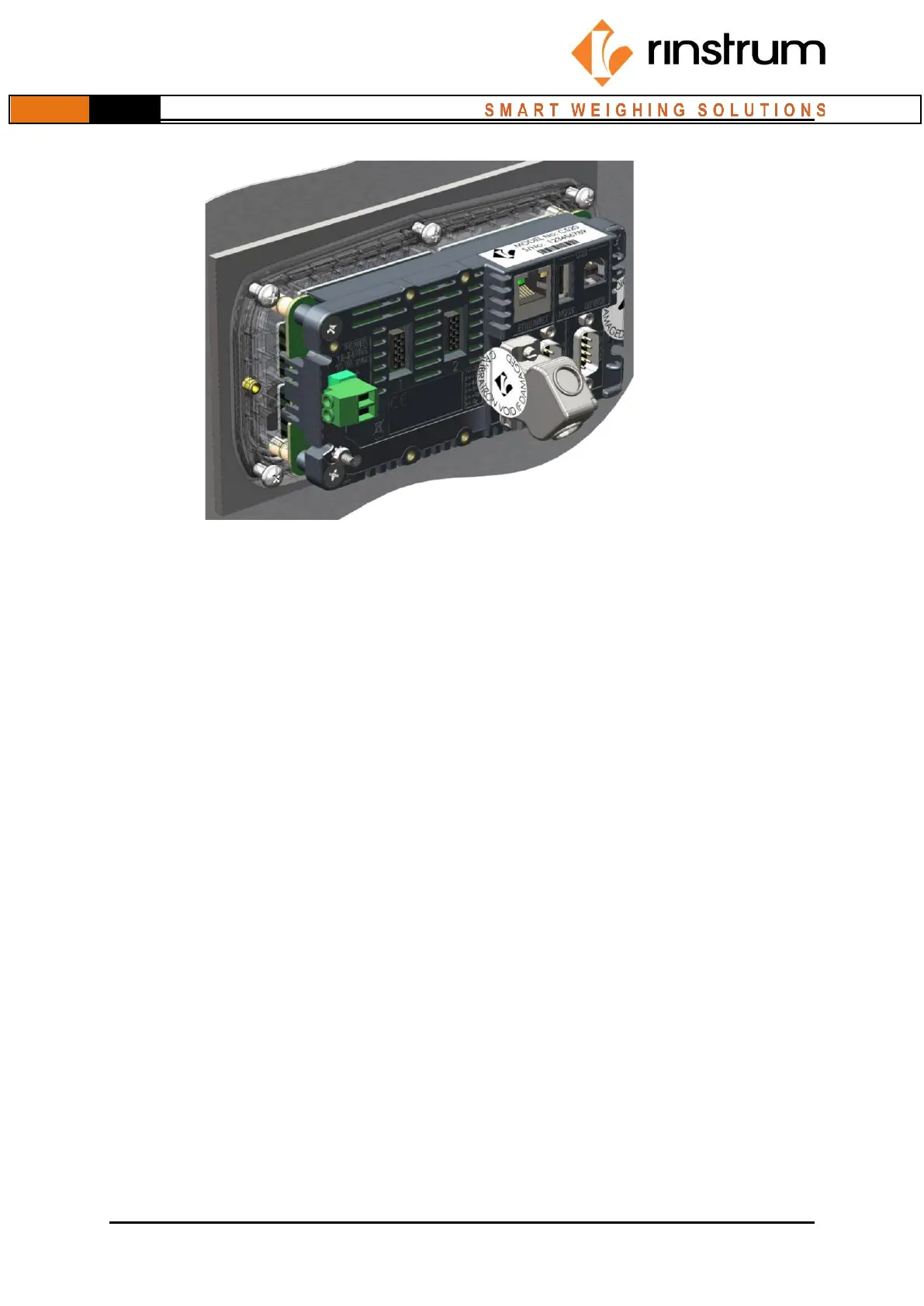

Figure 2: Sealing DB9 loadcell connection.
Sealing with wire and Lead seals
The Setup switch cover and pluggable screw terminal load cell connection can also
be secured with wire and Lead seals if required. This will also seal access to two of
the enclosure closure screws.
Equipment required.
• Wire and Lead seals
• Setup switch cover
• Load cell connection cover
Method
Place the setup switch cover in position so that it covers the setup switch and 2
closure screws.
Insert wire seals through loops provided and close the seals as shown in Figure 3.
Place the load cell connection cover over the load cell connector.
Insert a wire seal through the connections cover provided and close the seals as
shown in figure 3.
