5. Basic Operation

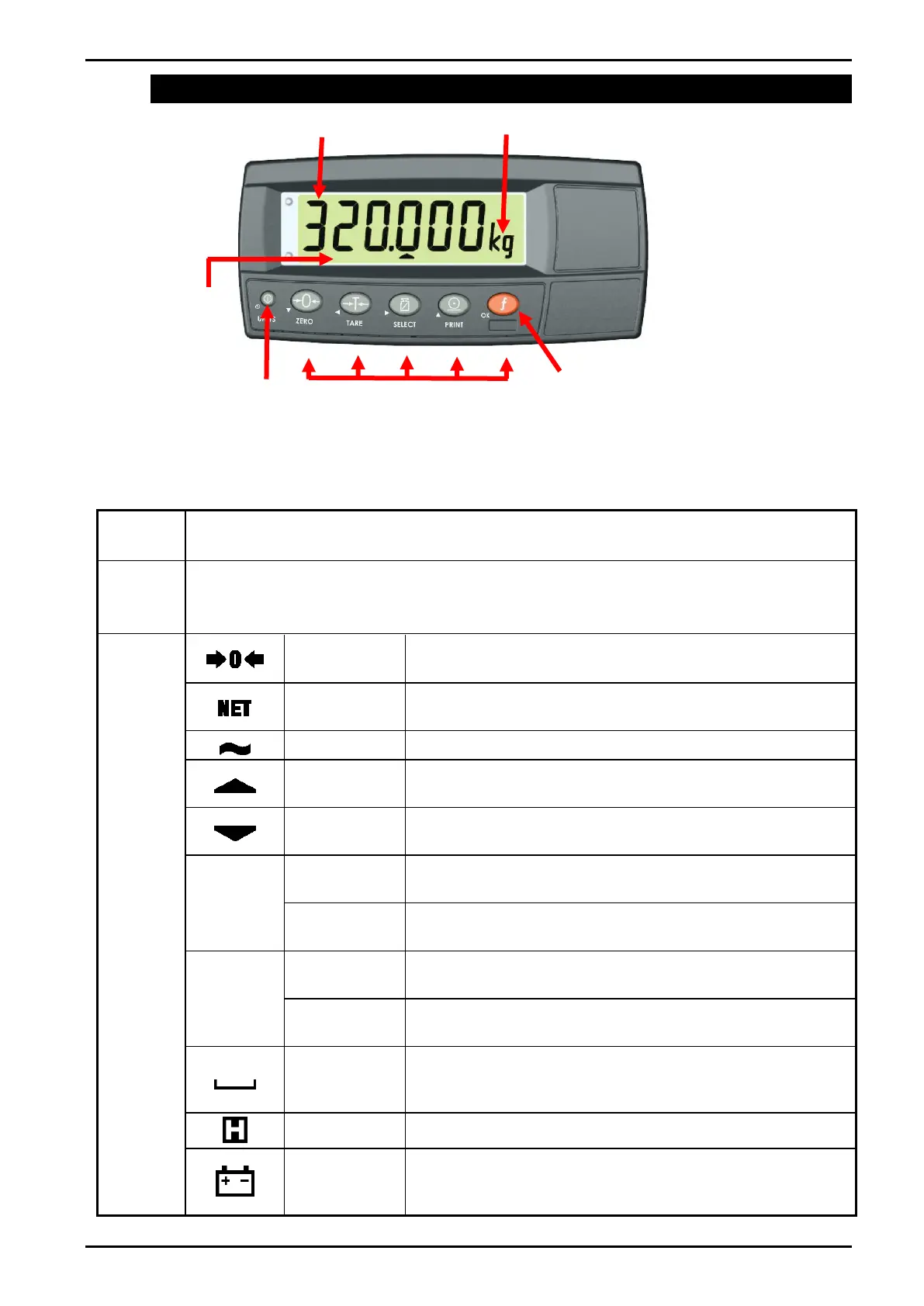

Figure 16: Display and Controls Illustration
5.1. Display
Weight
Display
The Weight Display indicates the weight readings, setup information, errors, and
warnings.
Units
Display
The Units Display shows the units of the weight reading as: grams (g), kilograms (kg),
pounds (lb), tonnes (t) or none.
If the instrument is set up for counting the units display will show pieces (p).
Annunciators
ZERO
Visible when the gross reading is within  ¼ of a division
of true zero.
NET
Visible when the displayed reading represents NET
weight.
MOTION
Visible when the displayed reading is not stable.
OVER
Visible when either of the setpoints is set as type OVER,
and the weight is above the target weight.
UNDER
Visible when either of the setpoints is set as type
UNDER, and the weight is below the target weight.
1
OUT 1
Visible when Output 1 is turned ON and dual range is not
enabled.
RANGE 1
Visible when dual range is enabled and range 1 is active.
(K35* only)
2
OUT 2
Visible when Output 2 is turned ON and dual range is not
enabled.
RANGE 2
Visible when dual range is enabled and range 2 is active.
(K35* only)
ZERO BAND
Visible when the displayed weight is within the zero
'dead' band setting. (The zero band symbol shows near
the top right corner of the display.)
HOLD
Visible when the displayed reading is held.
LOW
BATTERY
Visible when battery voltage is too low and batteries
need replacing or recharging. (The low battery symbol
shows in the top right corner of the display.)
Operation Keys
Power Key
Annunciators
Weight display
Units display
Function Key
(User defined)
