Reference Manual V1.19
Software Versions 4.xx
Page
64
003R
-682-
11
9
17.

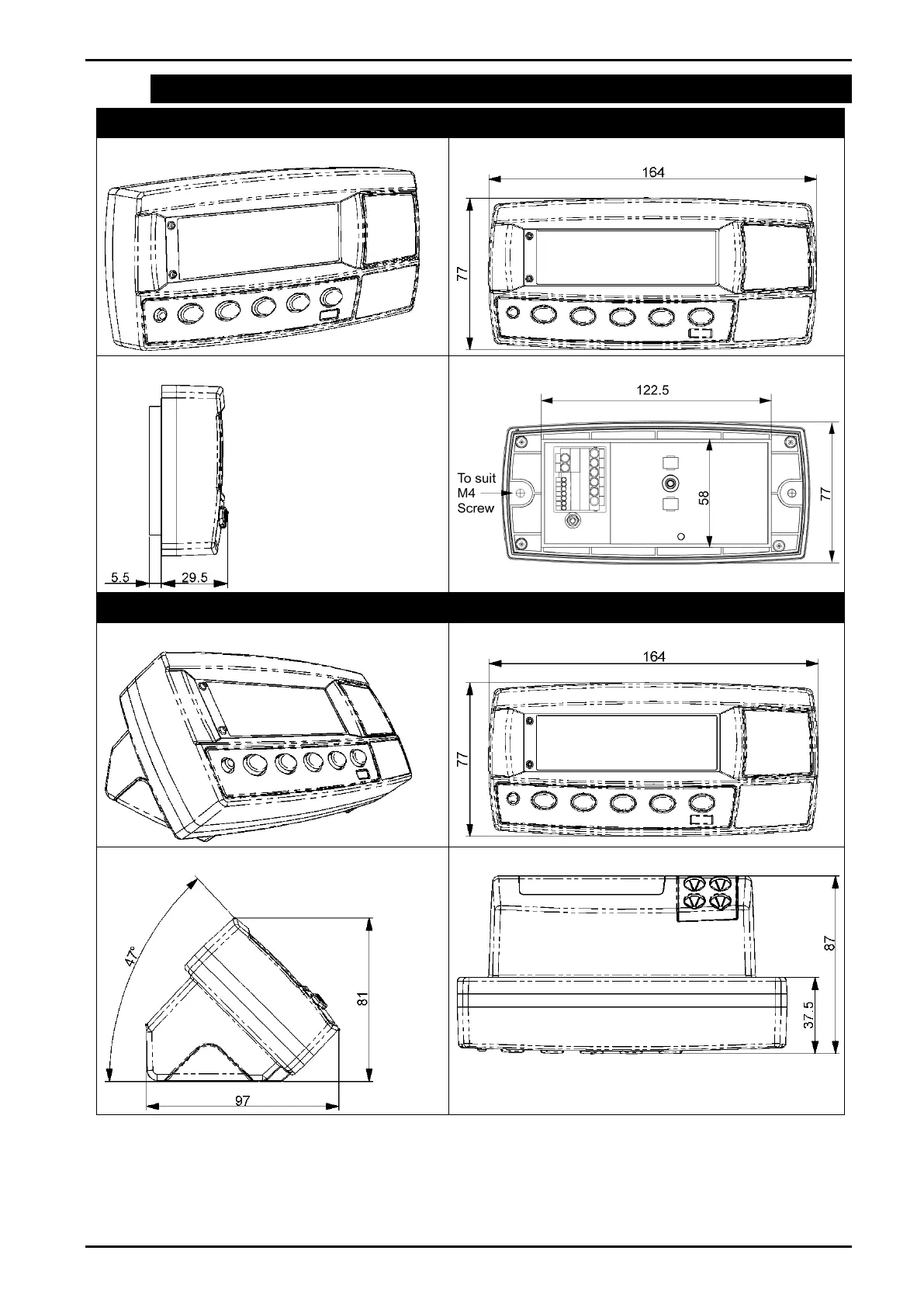

Appendix –
ABS R320 Dimensions
Weight Indicator
Dimensions in mm (1 inch = 25.4 mm)
3D View
Front View
Side View
Back View
Weight Indicator
(Desk Mount with Battery
Compartment)
Dimensions in mm (1 inch = 25
.4 mm)
3D View
Front View
Side View
Top View
65
67
Table of Contents
Table of Contents
3
Introduction
7
Overview
7
Approvals
8
Trade Versions
8
The Manuals Set
8
This Reference Manual
8
Document Conventions
8
Specifications
9
Installation
10
Introduction
10
General Warnings
10
Electrical Safety
10
Cleaning
10
Panel Mount Template
10
Cable Connections
11
DC Power (DC PWR +, DC PWR -)
11
Load Cell Connection
11
Load Cell Signals and Scale Build
11
4-Wire Connection
12
Auxiliary Connections
13
RS-232 Serial
13
Remote Input
16
Outputs
17
Opto-LINK (Optional)
18
Connecting Shields
19
Cable Shield Connection and Earthing
19
Regulatory Sealing Requirements
19
Data Entry
20
Editing Annunciators
20
Numeric Entry
21
Selections and Options
21
Basic Operation
22
Display
22
Has a Key Been Locked
23
Editing Function
23
Stability - What Is a "Stable Error
23
POWER Key
23
ZERO Key
24
TARE Key
24
SELECT Key
24
PRINT Key
25
FUNCTION Key
25
Configuration
26
General Setup Information
26
Basic Weighing Terminology
26
Filtering Techniques
27
Industrial Vs OIML and NTEP Modes
27
Calibration Counter
27
Passcodes
28
Full Setup Passcode
28
Safe Setup Passcode
28
Setup Lock-Out
28
Calibration
29
Performing a Digital Calibration with Test Weights
29
ZERO (Zero Calibration Routine)
30
SPAN (Span Calibration Routine)
30
Performing a Calibration with Direct MV/V Entry
30
DIR.ZER (Direct Zero Calibration Entry)
30
DIR.SPN (Direct Span Calibration Entry)
30
Using Linearisation
31
ED.LIN (Edit Linearisation Points)
31
CLR.LIN (Clear Linearisation)
32
Using Gravity Compensation - K35
32
Quick Calibration
32
Setup
33
Accessing Setup
33
Access Using Full Setup
33
Access Using Safe Setup
33
Setup Display Prompts
34
Exiting Full or Safe Setup
34
Groups and Items
34
Setup Menus
35
BUILD (Scale Build)
35
OPTION (Scale Options)
36
CAL (Scale Calibration)
37
SPEC (Special Settings Menu)
38
SERIAL (Serial Communications Options)
40
SET.PTS (Set Points)
40
LIVE (Live Weight) - K35
40
CLOC (Clock) - K35
42
TEST (Special Test Functions)
42
FACTRY (Factory Adjustment Menu)
43
End - (Leaving Setup)
43
Serial Outputs (K344, K35*)
44
Serial Output Types
44
NET - Network Communications
45
Network Protocol SIMPLE
45
Auto Weight Format String
46
Menu Setup - SERIAL (Serial Communications Options)
46
Standard Printing - K344 (no Clock/Calendar)
49
Standard Printing - K35* (with Clock/Calendar)
50
Printing Number of Pieces with Counting Active
50
Printing Total Weight
51
Printing Total Weight and Number of Pieces
51
Programmable Printing - K35
52
How to Set Custom Print Strings Using View 300
52
Tokens
52
Using Tokens Example
55
Clear Custom Print Strings
55
Printing Custom Print Strings
55
Master Serial Output
55
Auto Output Speed
55
Print Interlock
55
Unit Switching
55
Setpoints-K346/K354
56
Setpoint Menu Setup - SET.PTS (K346/K354)
56
Setpoint Target
56
Setpoint Type (OVER/UNDER) and Hysteresis
56
Setpoints - K356
58
Setpoint Menu Setup - SET.PTS (K356)
58
Setpoint Configuration
59
Setpoint Source
59
Setpoint Target
59
Setpoint Type (OVER/UNDER) and Hysteresis
60
Special Functions Key - K35
61
Introduction
61
Key Functions
61
None
61
Test
61
Count
61
Units
61
HOLD and PEAK HOLD
62
Live.wt
62
Show.t
62
Hi.res
63
A.tare
63
Set.pt
63
Net.hld
64
Med.hld
64
MVV
64
Appendix - Trade Sealing Details
65
Appendix - Abs R320 Dimensions
66
Appendix - Stainless Steel R323 Dimensions
68
Setup Menu Quick Reference
70
Error Messages
74
Weighing Errors
74
Setup and Calibration Errors
75
Diagnostic Errors
76
Appendix - Rinwire Protocol
77
Glossary Terms
81
List of Figures
81
List of Tables
82
Index
83
