TECHNICAL DATA
• Input Voltage: 12v Pb battery or
10~15v power supply
• Charge Voltage: 1~25 cells ( 1.2 to 30v )
• Fast Charge Current: 0.1 to 5.0A-dependant on
battery being charged
•Trickle Charge Current:
– Manual Mode only: Capacity/20 pulsed
– Tx battery: 50mA
– Ni-MH battery: 0mA
– Pb battery: 100mA
• Discharge Current: 20W
• Display: 2 x 16 Two Line LCD
• Cooling Fan
•Overload Protection
• Short Circuit Protection/Electronic Shut Off
• Reverse Polarity Protection on both Input and Output
• Pb battery charge function
• Size: 145(W) x 92(L) x 40(H)mm
•Weight: 560g

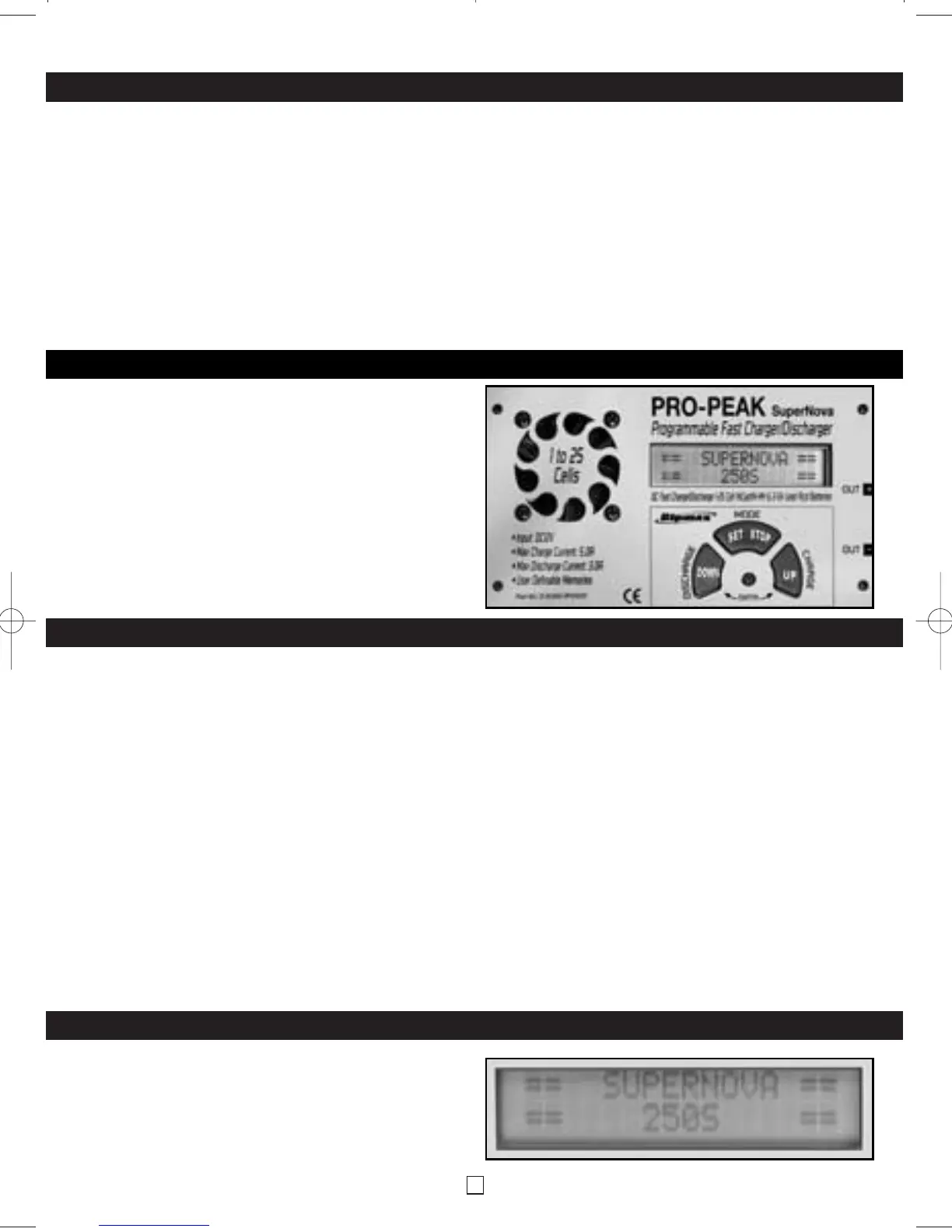

INPUT BUTTONS
SET/STOP:
This is used to enter and exit program
mode and to stop charging and
discharging procedure.
CHARGE/UP: – Starts charging procedure.
– Increases figure/amount.
– Moves the cursor to the right.
DISCHARGE/DOWN: – Starts discharging procedure.
– Decrease figure/amount.
– Moves the cursor to the right.
There are three input buttons on the SuperNova 250s.
EXTREMELY IMPORTANT - READ BEFORE USING CHARGER - SAFETY PRECAUTIONS
• Place the charger on a firm level surface for charging.
• DO NOT cover charger.
•Take great care over battery polarity, and observe the battery
manufacturer's recommendations.
• NiCad/Nickel Metal Hydride cells become WARM to the
touch when charged. If the pack feels HOT to the touch,
disconnect it at once.
•Connect the input leads to the 12v supply first, then connect
the battery to be charged.
• ALWAYS disconnect the NiCad/Ni-MH /Pb battery when NOT
charging, as they may discharge themselves if left connected.
• DO NOT allow the input crocodile clips to touch each
other or the case of the charger when the NiCad/Ni-MH/Pb
battery is connected as this may cause a short circuit.
•Avoid short circuits.
• If NiCad/Ni-MH packs are severely overcharged they may
become very HOT. For this reason it is always best to place the
pack on an insulated heat resistant surface for charging.
• The charger must ONLY be used in completely dry
conditions.
• DO NOT disassemble the charger.
• NEVER leave the charger unattended whilst charging.
• DO NOT fast charge batteries immediately after use while
they are still warm, allow to cool to ambient temperature
before charging.
CONNECTION TO POWER SUPPLY
The SuperNova is designed to operate using either a 12 volt
Lead Acid (Pb) battery or a suitable 10-15volt power supply.
Connect the red wire from the charger to the + terminal of
the power source, the black wire to the – terminal.
When correctly connected, the initial display will appear as
follows, changing after a couple of seconds to, see top right.
