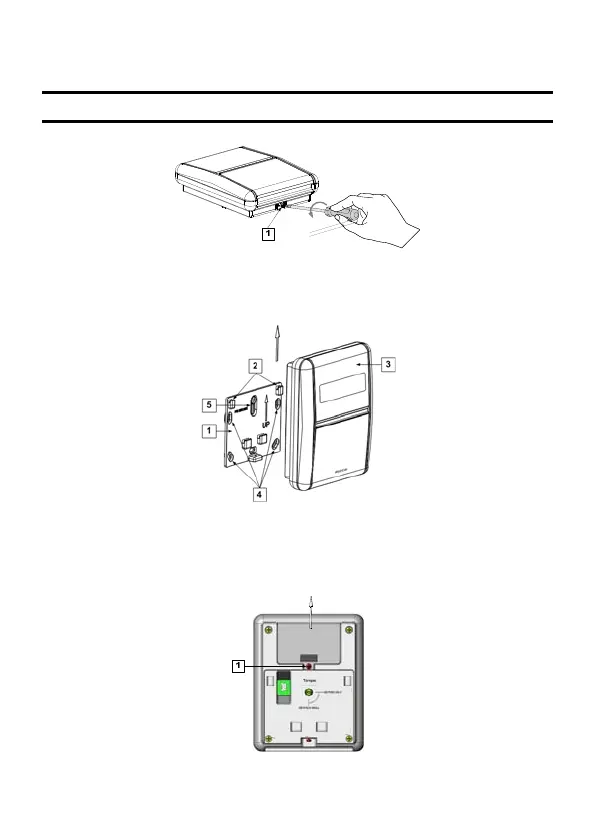

MOUNTING THE KEYPAD

Mountthekeypadonthewallusingthesuppliedmountingbracket.

Note:Beforemountingthekeypadtestthekeypadcommunicationwiththesystem.

1.ReleasetheMountingbracketscrew(1).



Figure1

2.SlideuptheMainUnit(3)toreleaseitfromthetwomountingbracketʹslockingtabs

(2).

3.Mountthebracket.



Figure2

4.Releasethebatterycoverscrew(1)andremovetheredisolationstrips.(Thekeypad

suppliedwith3batteries.)

5.Closethebatterycompartmentandmounttheke ypad tothemountingbracketina

reversesequencetotheremoval.



Figure3
