Maximum humidity 95% non-condensing
Sensitivity settings Dual stage potentiometer
Tri-colour LED indicator Orange: Over-sensitive
Green: Alarm & correct calibration
Red: Under-sensitive
Relay contact ratings:
Alarm relay 100mA at 24VDC, NC, Opto relay
Tamper relay 500mA at 24VDC, NC
Reed relay 500mA at 24VDC, NC
Time relay open in alarm 2.5 seconds
Latching modes Any or 1st to latch operation modes
Max no. of units on Any Latch loop 80
Max no. of units on 1st to Latch
loop 10
False alarm protection Digital microprocessor signal
processing and noise reduction circuits
with maximum ground plane
Electrostatic discharge No false alarms up to 8kV
RF immunity 40 V/m from 80MHz to 1GHz
Enclosure material Flame retardant ABS
Enclosure dimensions 25x28x95mm – detector,
10x12x58mm – magnet
Considerations for Magnet Installation
1 Install the ShockTec Plus G3 in a place that will enable you to
install the magnet in parallel to it. Generally, this position would
be on the frame of the opening to be protected, for example, a
door frame.
2 Install the magnet on the left side of the ShockTec Plus G3 as
indicated in Figure 3, with the following considerations:
i Mount the magnet opposite the middle of the ShockTec
Plus G3.
ii Maximum distance of the magnet from the Shocktec Plus
G3 is 20mm.
iii Position the magnet as close as possible to the same
plane level as the back surface of ShockTec Plus G3.
NOTE: Placing the magnet on the wrong side of the ShockTec Plus
G3 will cause a tamper alarm signal.
Multiple Unit Connection Procedure

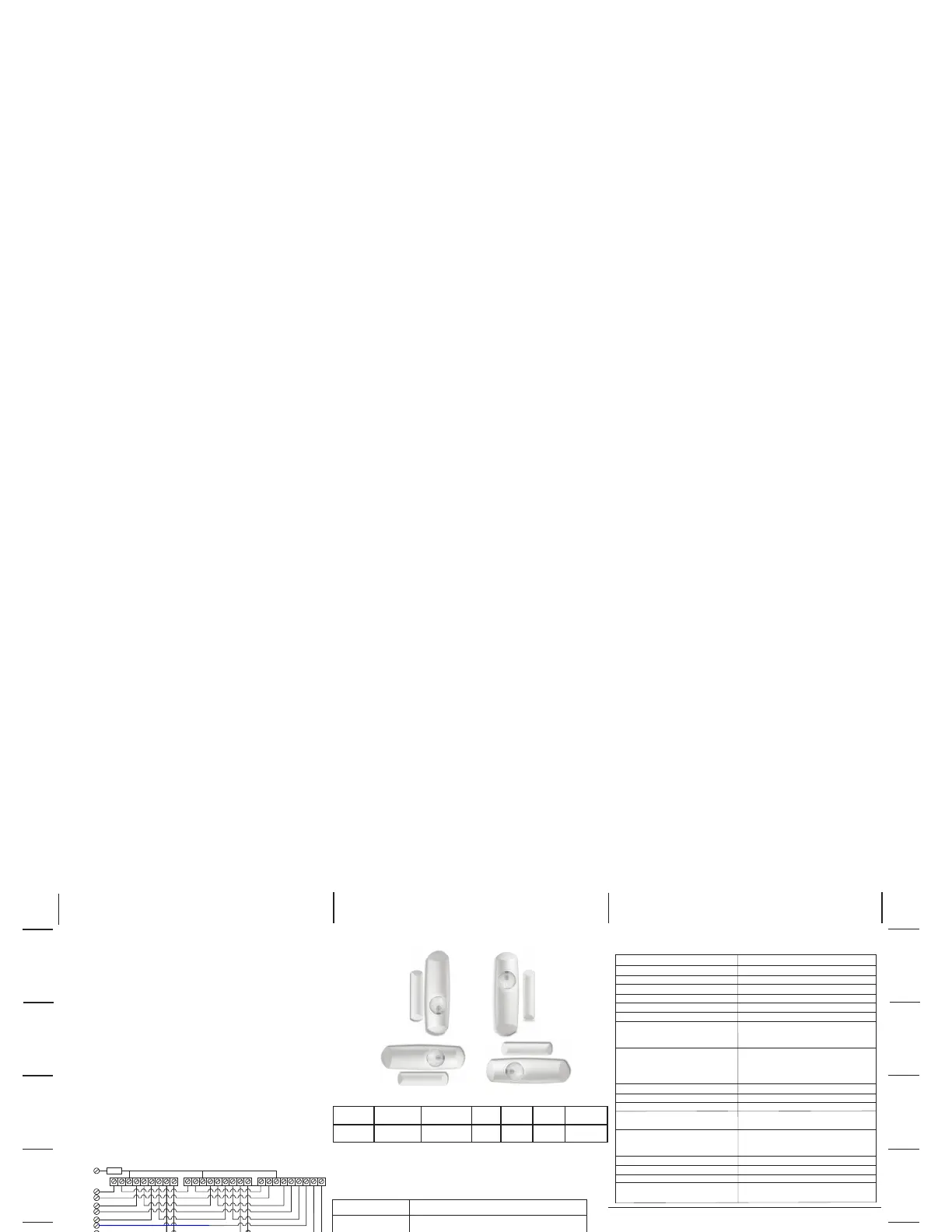

Figure 2: Multiple Unit Connection Procedure
Figure 3: Magnet Mounting Positions
Table 1: Typical Detection Range
The above values are typical and are subject to practical testing, which
must be performed for each installation. In some environments, these
values may differ from the values listed above.
Surface Concrete Brick Wall Steel Glass Wood Plywood
Radius 1.5m 2.5m 3m 3.5m 3.5m 4m
Ordering Information
Part number Description
RK601SM0000A ShockTec Plus with Magnet Grade 3, White
RK601SMBR00A ShockTec Plus with Magnet Grade 3, Brown
• PD6662, EN50131-2-6 Grade 3, Environmental Class II
United Kingdom
Tel:+44-161-655-5500
sales@riscogroup.co.uk
technical@riscogroup.co.uk
Italy
Tel: +39-02-66590054
info@riscogroup.it
support@riscogroup.it
Spain
Tel:+34-91-490-2133
sales-es@riscogroup.com
support-es@riscogroup.com
France
Tel: +33-164-73-28-50
sales-fr@riscogroup.com
support-fr@riscogroup.com
Belgium
Tel: +32-2522 7622
sales-be@riscogroup.com
support-be@riscogroup.com
USA
Tel:+305-592-3820
sales-usa@riscogroup.com
support-usa@riscogroup.com
Brazil
Tel:+55-11-3661-8767
sales-br@riscogroup.com
support-br@riscogroup.com
China
Tel: +86-21-52-39-0066
sales-cn@riscogroup.com
support-cn@riscogroup.com
Israel
Tel: +972-(0)3-963-7777
info@riscogroup.com
support@riscogroup.com
Contacting RISCO Group
RISCO Group is committed to customer service and product support. You can contact us through our website www.riscogroup.com or as follows:
All rights reserved. No part of this document may be reproduced in any form without prior written permission from the publisher.
12V
ALARM
TAMPER
12V TO
LED
REED
SWITCH
+
-
47K
© RISCO Group 11/07 5IN601S
Cut
Fold
Fold
Fold
Fold
Fold
Cut
Cut
Fold
Fold
Cut
Cut
Cut
Fold
Fold
Fold
Fold
Fold
Cut
Fold
Fold
Cut
RISCO Group Limited Warranty
RISCO Group and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials and
workmanship under normal use for 24 months from the date of production. Because Seller does not install or connect the
product and because the product may be used in conjunction with products not manufactured by the Seller, Seller can not
guarantee the performance of the security system which uses this product. Sellers obligation and liability under this warranty
is expressly limited to repairing and replacing, at Sellers option, within a reasonable time after the date of delivery, any
product not meeting the specifications. Seller makes no other warranty, expressed or implied, and makes no warranty of
merchantability or of fitness for any particular purpose. In no case shall seller be liable for any consequential or incidental
damages for breach of this or any other warranty, expressed or implied, or upon any other basis of liability whatsoever.
Sellers obligation under this warranty shall not include any transportation charges or costs of installation or any liability for
direct, indirect, or consequential damages or delay. Seller does not represent that its product may not be compromised or
circumvented; that the product will prevent any persona; injury or property loss by intruder, robbery, fire or otherwise; or that
the product will in all cases provide adequate warning or protection. Buyer understands that a properly installed and
maintained alarm may only reduce the risk of intruder, robbery or fire without warning, but is not insurance or a guaranty that
such will not occur or that there will be no personal injury or property loss as a result. Consequently seller shall have no
liability for any personal injury, property damage or loss based on a claim that the product fails to give warning. However, if
seller is held liable, whether directly or indirectly, for any loss or damage arising from under this limited warranty or otherwise,
regardless of cause or origin, sellers maximum liability shall not exceed the purchase price of the product, which shall be
complete and exclusive remedy against seller. No employee or representative of Seller is authorized to change this warranty
in any way or grant any other warranty.
WARNING: This product should be tested at least once a week
Technical Data
Supply voltage 9V –16V DC
Current drain 7.5 mA Typical (14 mA Max)
Operational temperature -20°C to +55°C (-4°F to 131°F)
Storage temperature -20°C to +60°C (-4°F to 140°F)
ShockTec Plus with Magnet Grade 3
