Installation/Service/Owner's Manual Dok‑Commander
®
Publication: AMEN00070 2020-01-30 39

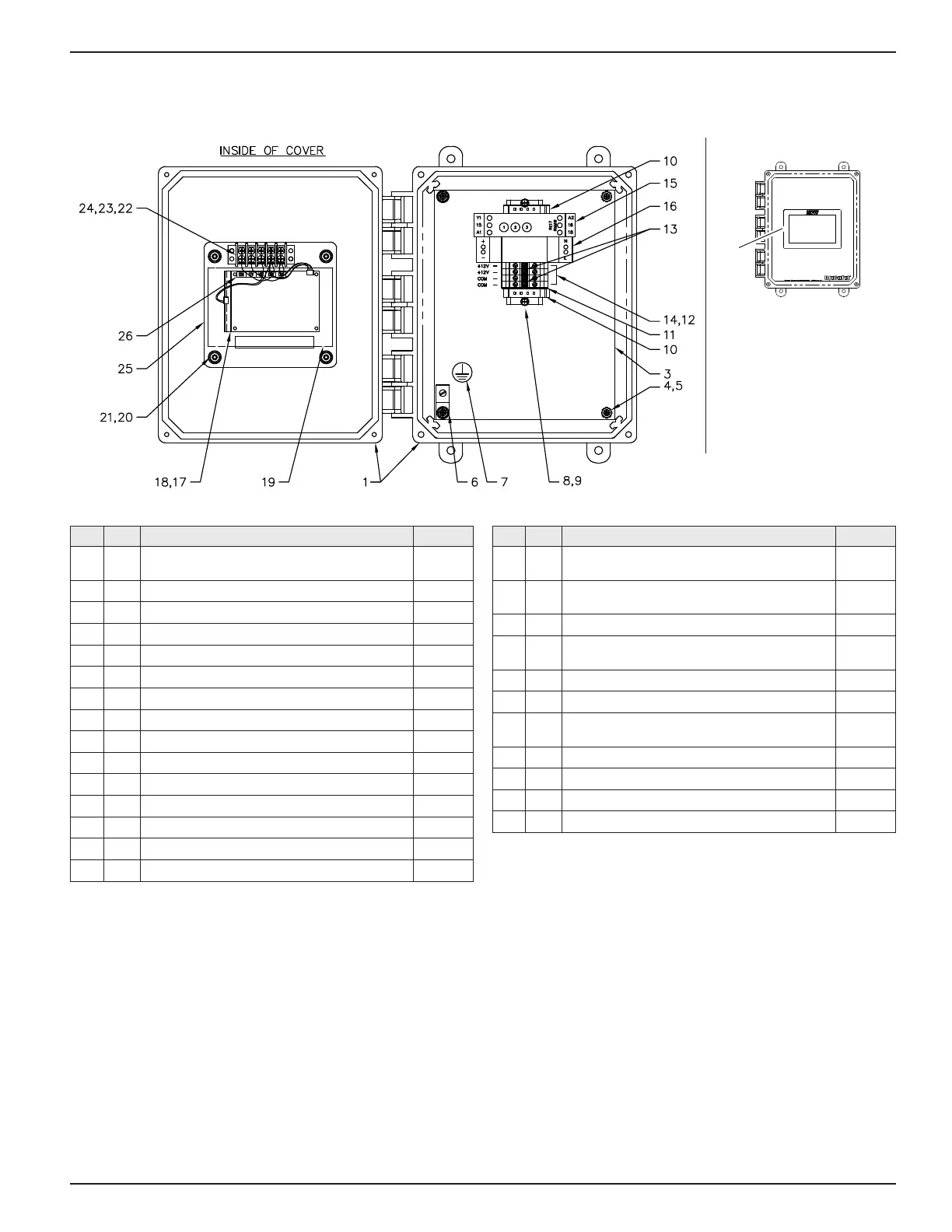

PARTS
Lok-Vu Control Box
Front Cover
2
<LOK-VU CB PARTS 181115.PDF>
# QTY DESCRIPTION PART #
1 1
CONTROL BOX ASSEMBLY Lok-Vu
STANDALONE
156619
2 1 DECAL COV Lok-Vu STANDALONE 156290
3 1 PNL DRLD 10 X 8 Lok-Vu STANDALONE 156611
4 4 SCR #10-32X.500 MACH RND PHLP 51629
5 4 WSHR #10 LK EXT TOOTH ZP 51762
6 1 LUG GROUND 55902
7 1 DECAL GND LABEL 105454
8 2 SCR #8-32X.313 MACH PAN PHLP ZP 149317
9 4" RAIL MTG DIN 15MM HGT SLOT(1L) 109339
10 2 TERMINAL END RETAINER 66067
11 1 TERMINAL END BARRIER 65599
12 4 TERMINAL MARKER 65601
13 2 TERMINAL BLOCK CENTER JUMPER 2P (W4) 113590
14 4 TERMINAL BLOSK 600V 30A 22-10AWG IEC 65476
15 1 TIMER RELAY (.05S-60HR) INPUT(12V) 156613
# QTY DESCRIPTION PART #
16 1
POWER SUPPLY INPUT(100-264V)
OUTPUT(12V/1.25A)
156614
17 1
DISPLAY 5.0" TFT W/CONTROL
CIRCUIT BOARD
149537
18 7 TAPE FOAM DOUBLE SIDED .5 X .125 107615
19 1
DISPLAY MOUNTING BRACKET
DOK-VU 5.06L
149536
20 4 RUBBER GROMMET .625OD .375ID .625THK 149535
21 4 SCREW #8X1.0TRIM BLACK WASHER HEAD 150468
22 1
TERMINAL BLOCK 5PT 20A 300V LOW
PROFILE
149775
23 2 SCREW #6-32 X .5 PAN HEAD 105842
24 2 LOCK NUT #6-32 HEX WSHR(EXT TOOTH) 111742
25 1 CIRCUITBOARD COVER Lok-Vu 149911
26 1 DECAL TERMINAL STRIP 5PT(COM/12V) 150508
