PARTS
GWC-1000
# QTY DESCRIPTION PART #
- X GWC10 RIGHT SIDE FACING DOCK ALP 0152598
1 1 CHOCK ALUM 7 X 9.5 X 16.092L 0152599
2 1 BRKT INSERT WLDMT WHLCHK 0152620
3 1 JUNCTION BOX ALUM 0152615
4 1 SENSOR U-SONIC PRGMD 0152618
5 1 CONN FEM M8 4PIN 90DEG 0152617
6 2 SCR ALLEN HEAD M3 ×25 SS 0152680
7 2 NUT M3 SS 0152611
8 2 SCR PHMS PHLP M4×20 SS 0152710
9 2 NUT M4 SS 0152610
10 1 CORD GRIP STRAIGHT 90DEG 0152612
11 1 CORD GRIP STRAIGHT 0152613
12 1
COIL CORD 4.5M (STD) 0152614
COIL CORD 7M (NON-STD / SPCL ORDER) 0158573
13 2 SCR ALLEN HEAD M8 SS 0152676
14 2 WSHR LK SPT M8 SS 0152674
# QTY DESCRIPTION PART #
15 1 HANDLE PIVOT CHOCK 0152600
16 1 HNDL WLDMNT PIVOT CHOCK 0152604
17 1 HANDLE SHOVEL FIBERGLASS 0152601
18 2 SCR HHMS M6×45 ZP 0152678
19 2 NUT M6 ZP 0152677
20 1 PIN COTTER 5MM X 40MM ZP 0152675
21 1 WSHR FLAT ID23×OD39×T3 SS 0152711
22 1
MOUNTING BRKT W/JB
(INCLUDES ITEMS 23 & 24)
0159200
23 1 MOUNTING BRKT 0152629
24 1
JUNCTION BOX ASSY
(INCLUDES ITEMS 25-28)
0152625
25 1 JUNCTION BOX DRILLED 0152626
26 1 CORD GRIP STRAIGHT 0152681
27 4 SCR PHMS PHLP M4×12 SS 0161583
28 2 CORD GRIP STRAIGHT STRAIN RELIEF 0158840
29 1
HANDLE KIT GWC10
(INCLUDES ITEMS 15-21)
0159187
INCLUDES ITEMS 25-28
INCLUDES ITEMS 15-21
24
4
23
3
5
6
7
8
9
28
10
11
1
12
2
13
14
15
18
19
20
16
21
17
22
27
26
28
25
29
INCLUDES ITEMS
23 & 24

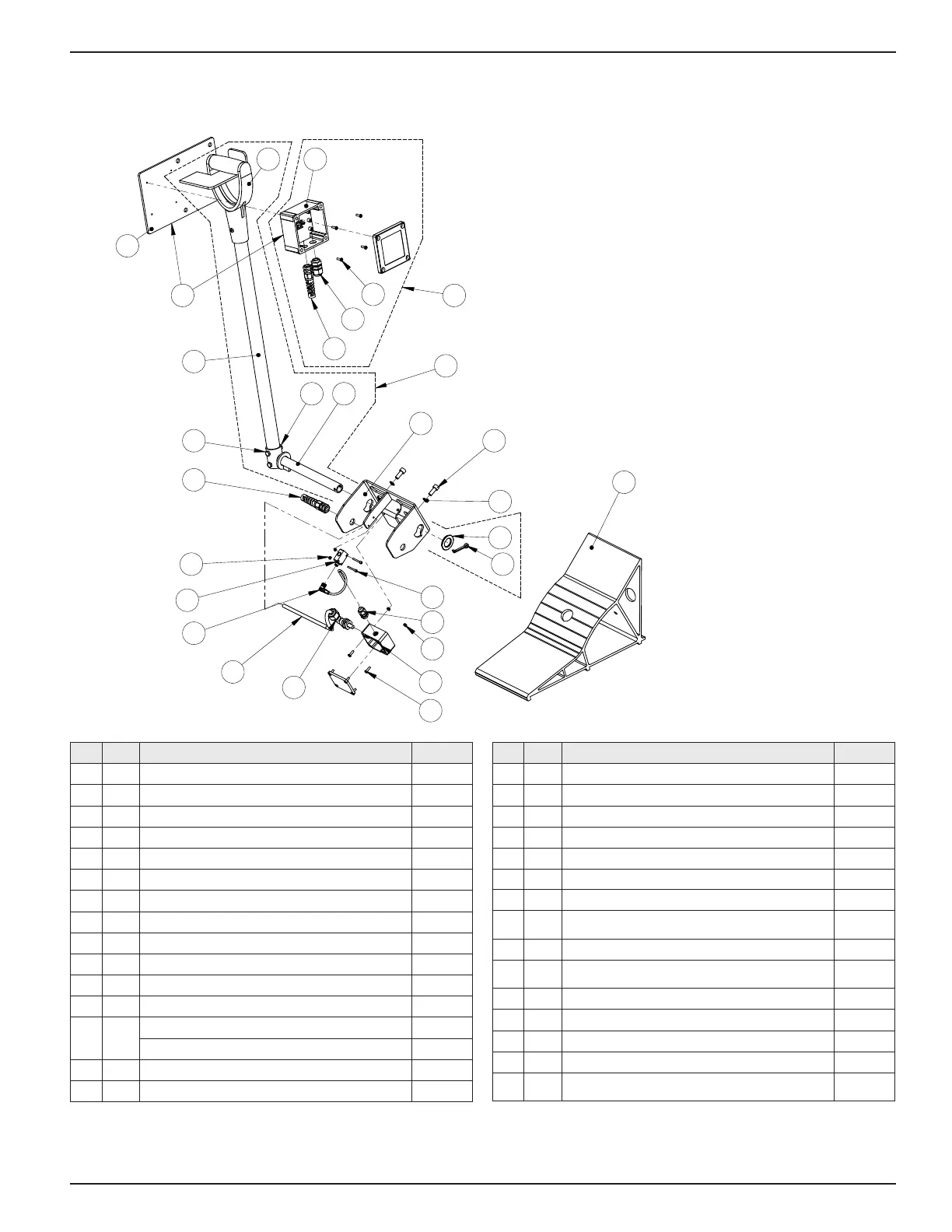

<Ballooned GWC parts explosion.pdf>
NOTE:  For ordering purposes, the leading "0" or "00" may need to be dropped from Part Number (e.g. "0054321" could be "54321" or "0123456" could be "123456").
Rite‑Hite
®
Installation/Service/Owner's Manual Genisys™ GWC‑1000 Global Wheel Chock
Publication: AMEN00274 2020-06-26 19
