RITE-HITE RHE3 User Manual

HYDRAULIC OPTION - HYDRAULIC SCHEMATIC
14 Pub. No. 1223 - February 2015
RITE-HITE
®
RHE3 Dock Leveler Owner’s Manual
LEVELER RAISE
RELIEF VALVE
1500 PSI
MOTOR
3250 RPM
1/3 HP
REVERSIBLE
PUMP
0.0246 IN /REV
UP
3
DN
2" BORE x 6" STROKE
LEVELER DOWN
RELIEF VALVE
1500 PSI
M
CYLINDER

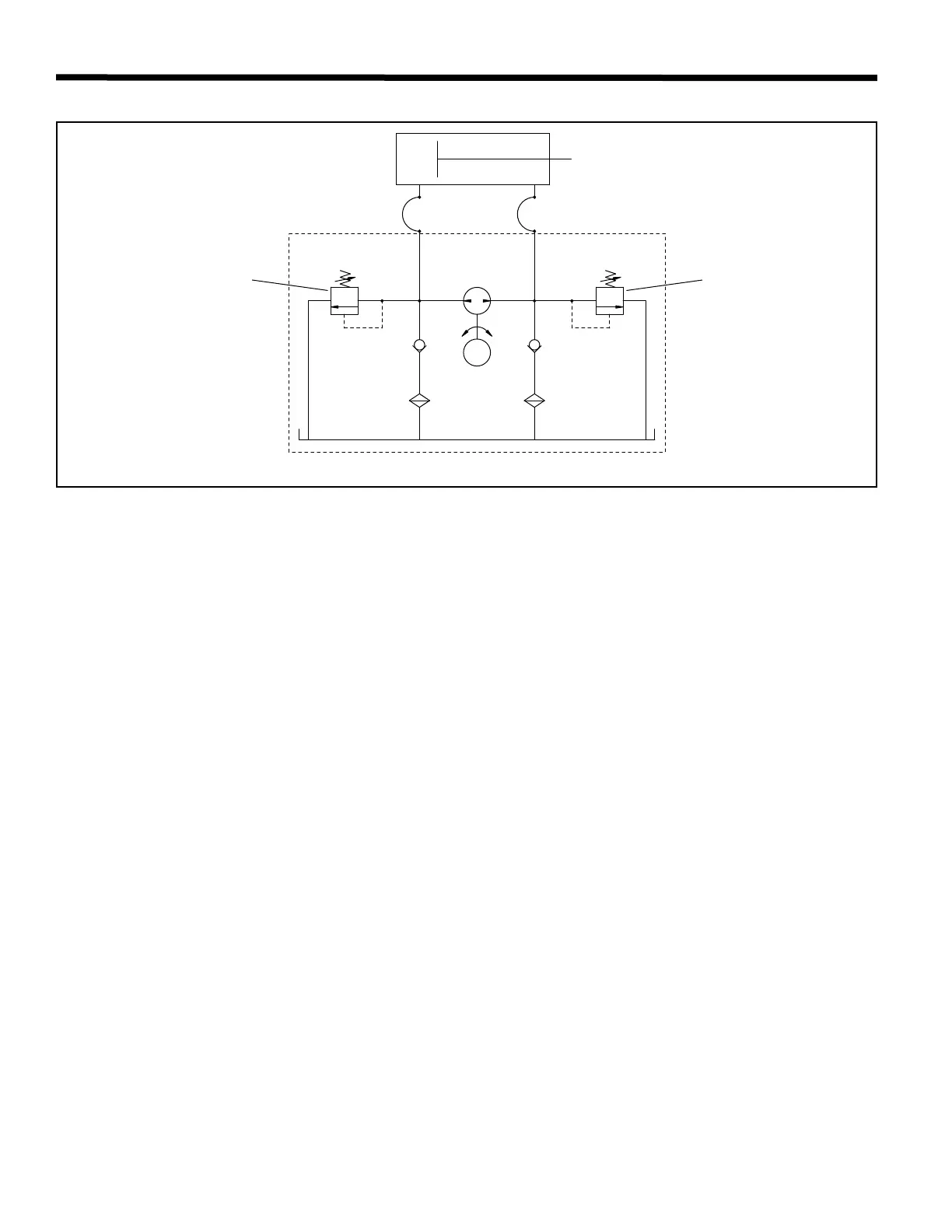

FIGURE 8 - HYDRAULIC SCHEMATIC
(Not Field Adjustable)
(Not Field Adjustable)
