15

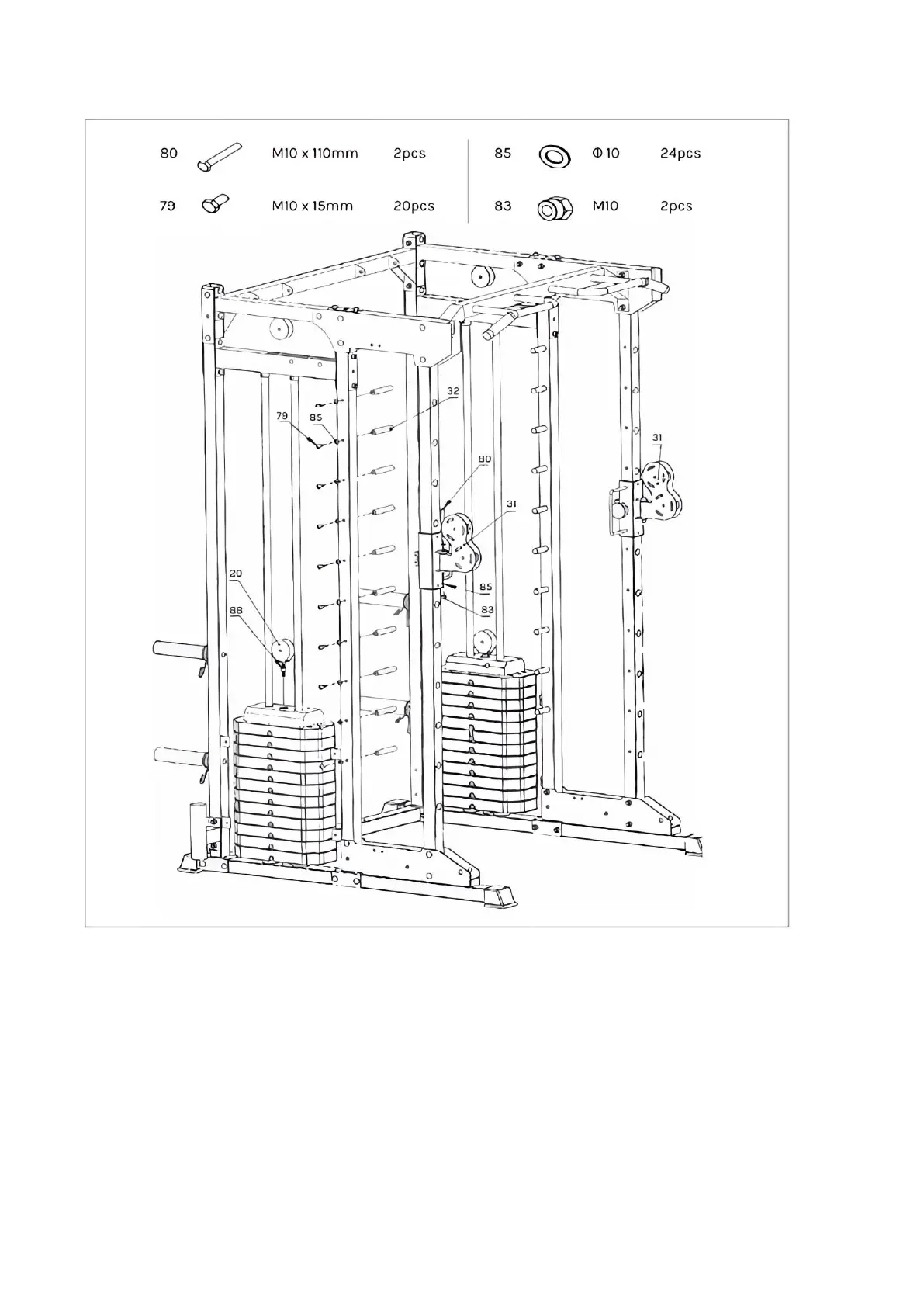

STEP12
1. Secure part (#32) onto part (#7) and (#8) using:
- 20 x part (#79) pre-installed on part (#32) - 20x part (#85)
2. Attach part (#20) to part (#88), then connect part (#88) with part
(#85) onto part (#21), in order as shown.
3. Repeat step 2 for the other side.
4. Fit the sleeve into part (#31), secure part (#31) to part (#30) using:
- 2x part (#80) - 2x part (#83) - 4x part (#85)
