Operator's Manual
LOCKDOWN 2-MAN Ladder Stand

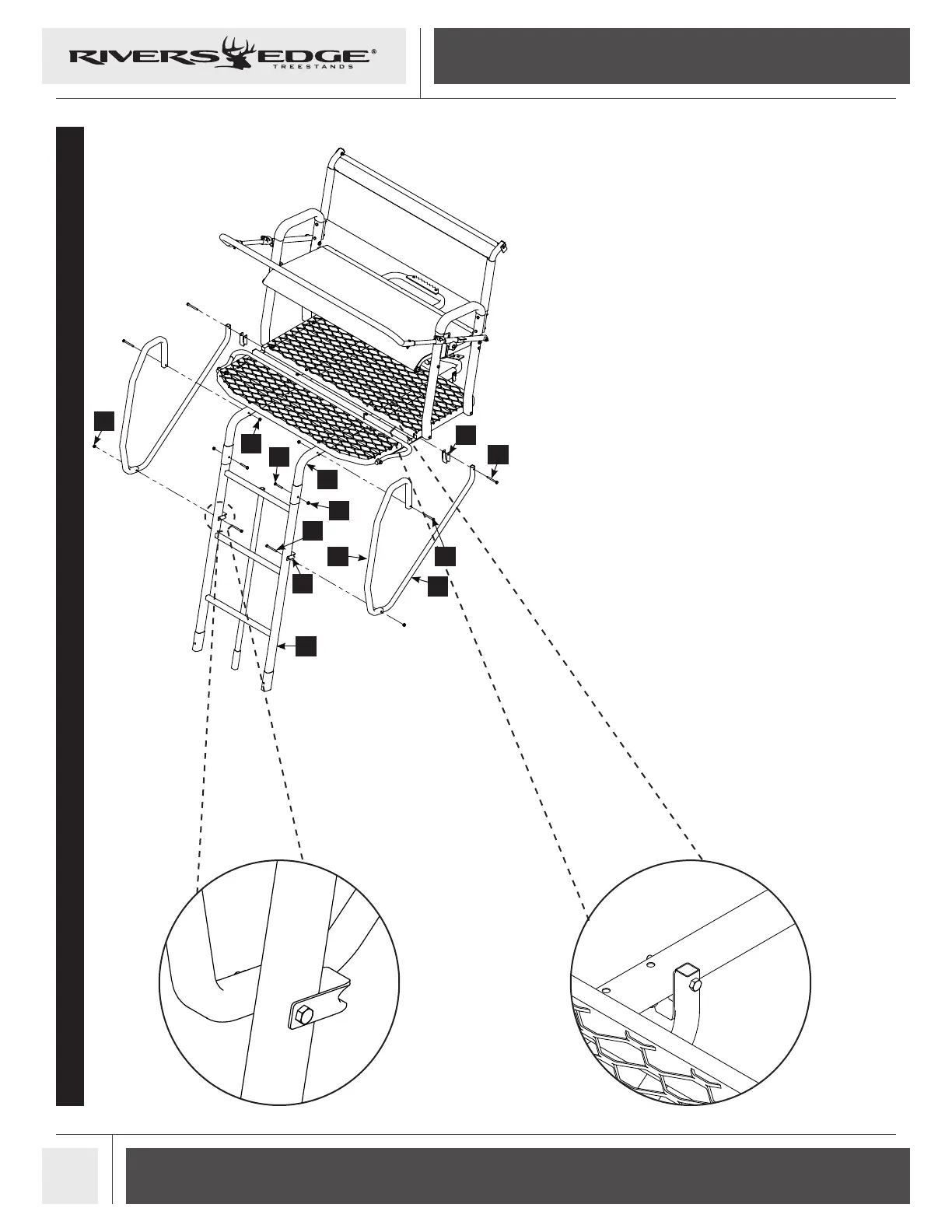

STEP 12
mesh hidden for clarity
DETAIL A
DETAIL B
1
46
7
46
5
4
52
44
52
7
14
52
46
12. Slide the top ladder section (14) into the pockets
on the J-tubes (1) and secure using two 1/4-20 x
1-3/4 IN bolts (44) and nuts (52).
Pre-assemble the platform braces (5) with the
ladder hand rails (4) by inserting one end of each
platform brace (5) into the lower end of each
ladder hand rail (4) and aligning the holes.
Then, attach the pre-assembled platform braces (5)
and ladder hand rails (4) and four strap guides (7)
to the rest of the treestand using six 1/4-20 x 2-1/2
IN bolts (46) and nuts (52). Pay close attention to
DETAIL A and DETAIL B for proper positioning of
strap guides (7).
