LOCKDOWN™ 21’ 360 1-MAN

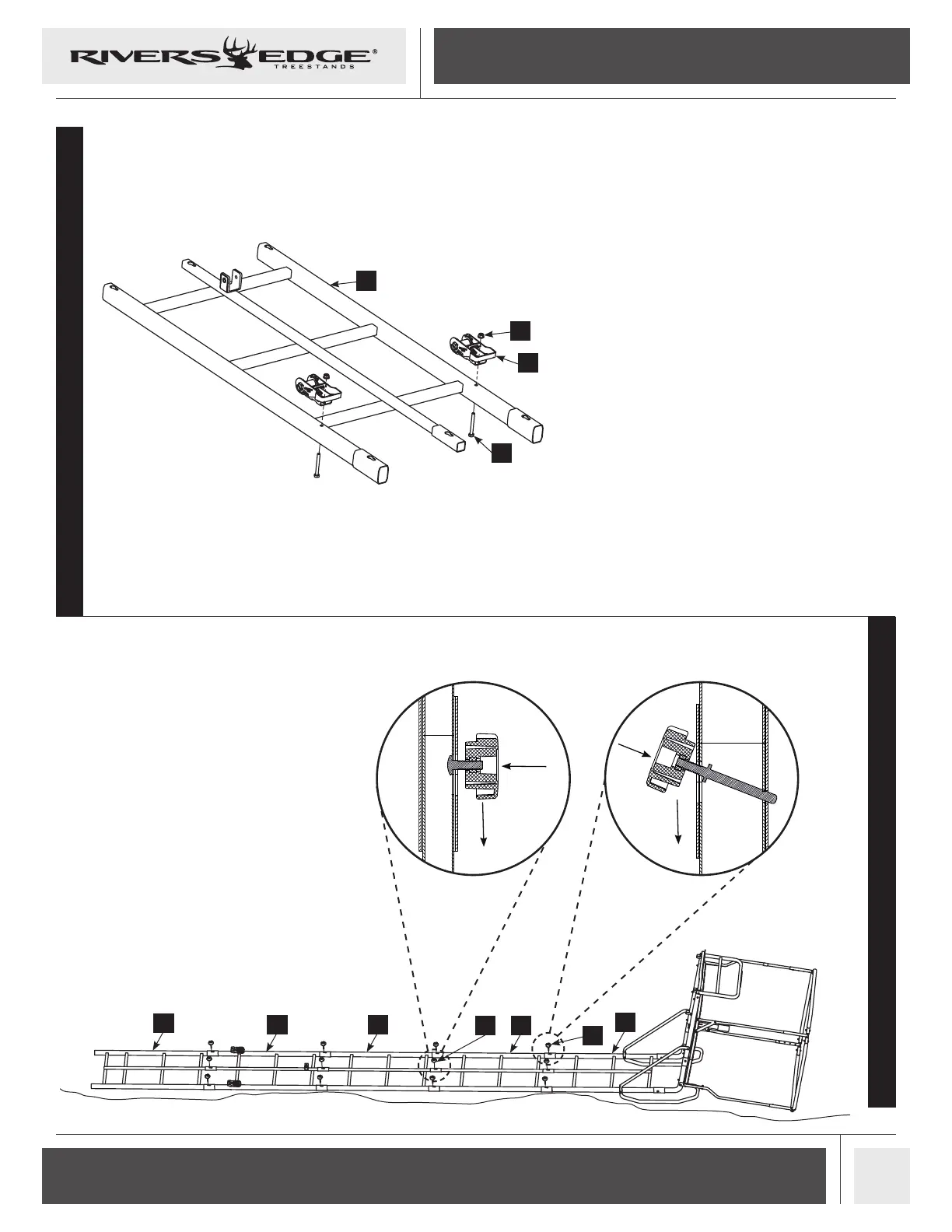

14. Attach the ladder ratchets (16) to the ladder
section with the stabilizer bar mount (13) using
two 1/4 X 2-1/4 IN bolts (41) and nuts (44). Set
aside for now.
15. Ladder sections are assembled on the ground
in the following order: bottom ladder section
(12), ladder section with stabilizer bar mount
(13), two middle ladders sections (10) and the
top ladder section (11) with the treestand top
assembly.
The ladder sections are secured together
with two dierent types of knobs, Silent
LadderLock (1) and Silent LadderLock with
stud (17). The four Silent LadderLocks (1) are
used for the center pocket on each section
SEE DETAIL A. The eight Silent LadderLocks
with stud (17) are used for the two outside
pockets on each section SEE DETAIL B.
NOTE: Do not attach seat to platform
assembly until after stand is completely
upright and secured to tree.
STEP 14
STEP 15
13
44
16
41
12
13 10
11
10
17
1
DETAIL A DETAIL B
