Operator's Manual
LOCKDOWN™ 21’ 360 1-MAN
ASSEMBLY INSTRUCTIONS
IMPORTANT ASSEMBLY TIP:
Do not tighten any nut and bolt combinations completely
until all parts are assembled together! Finger tighten plus
one turn of a wrench only! This will temporarily hold the
lock- nut on the bolt while helping alignment of all parts!
After all parts are assembled together, all nut and bolt
combinations must be completely tightened.
All assembly must be done in this order at ground
level before uprighting.
Do not remove labels/warnings from product, they are
there for your safety.
Recommended for adult use only.
STEP 1
STEP 2
38
26
44
25

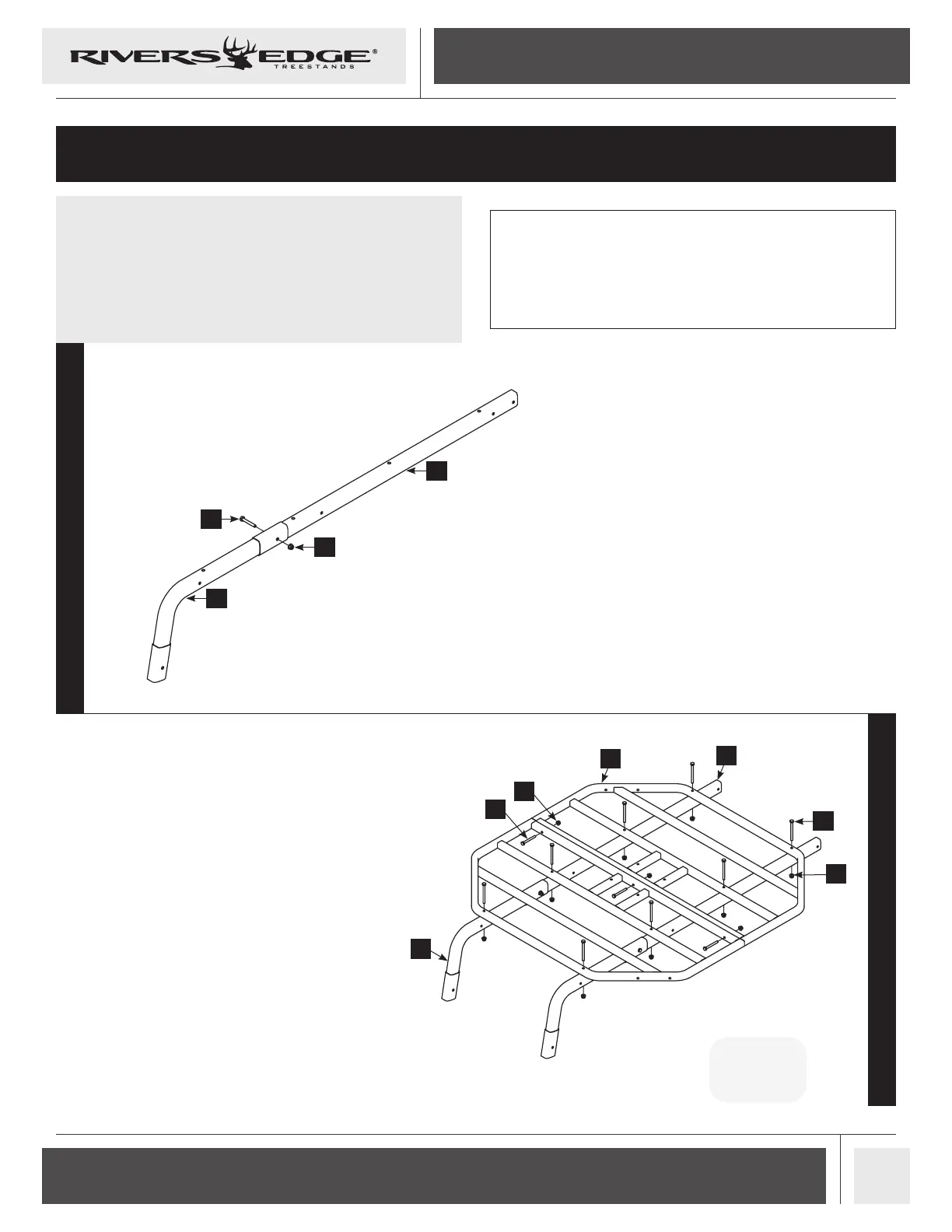

1. Insert each J-tube extension (26) into a J-tube
with pocket (25) and secure using a 1/4 X 1-3/4
IN bolt (38) and nut (44).
2 Attach the platform sections (27) together using
three 1/4 X 2-1/4 IN bolts (41) and nuts (44).
Attach the platform assembly to the J-tube
assemblies (25,26) using eight 1/4 X 3 IN bolts
(43) and nuts (44).
mesh hidden
for clarity
41
25
44
27
26
43
44
