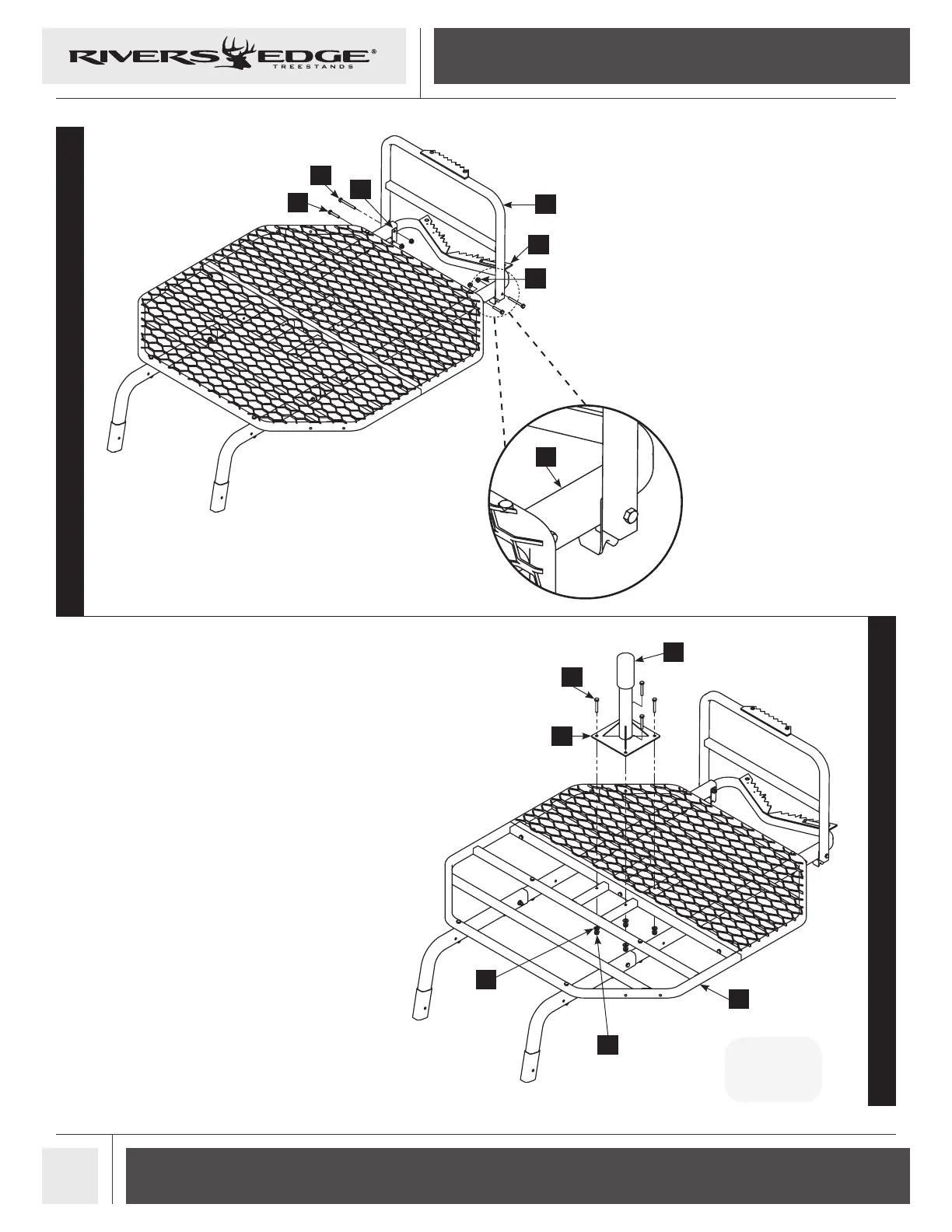

STEP 3
STEP 4
3. Insert bottom tree blade (14) into ends of each
J-tube extension (26). Slide a strap guide (8)
onto each J-tube extension (26) and align with
rear hole on each side. Secure top tree blade
(23) and strap guide (8) to J-tube extensions
(26) using two 1/4 X 2-1/2 IN bolts (40) and nuts
(44). Secure the bottom tree blade to the J-tube
extensions using two 1/4 X 1-1/2 IN bolts (37)
and nuts (44). Pay close attention to DETAIL A
for proper positioning of strap guides (8).
4. Attach the bottom seat post (3) to the assembled
platform using four 1/4 X 1-3/4 IN bolts (38), four
1/4 IN steel washers (39) and nuts (44).
mesh hidden
for clarity
23
40
37
8
44
26
14
5
27
38
3
39
44
DETAIL A
