Operator's Manual
LOCKDOWN™ 21’ 360 1-MAN
STEP 5
STEP 6

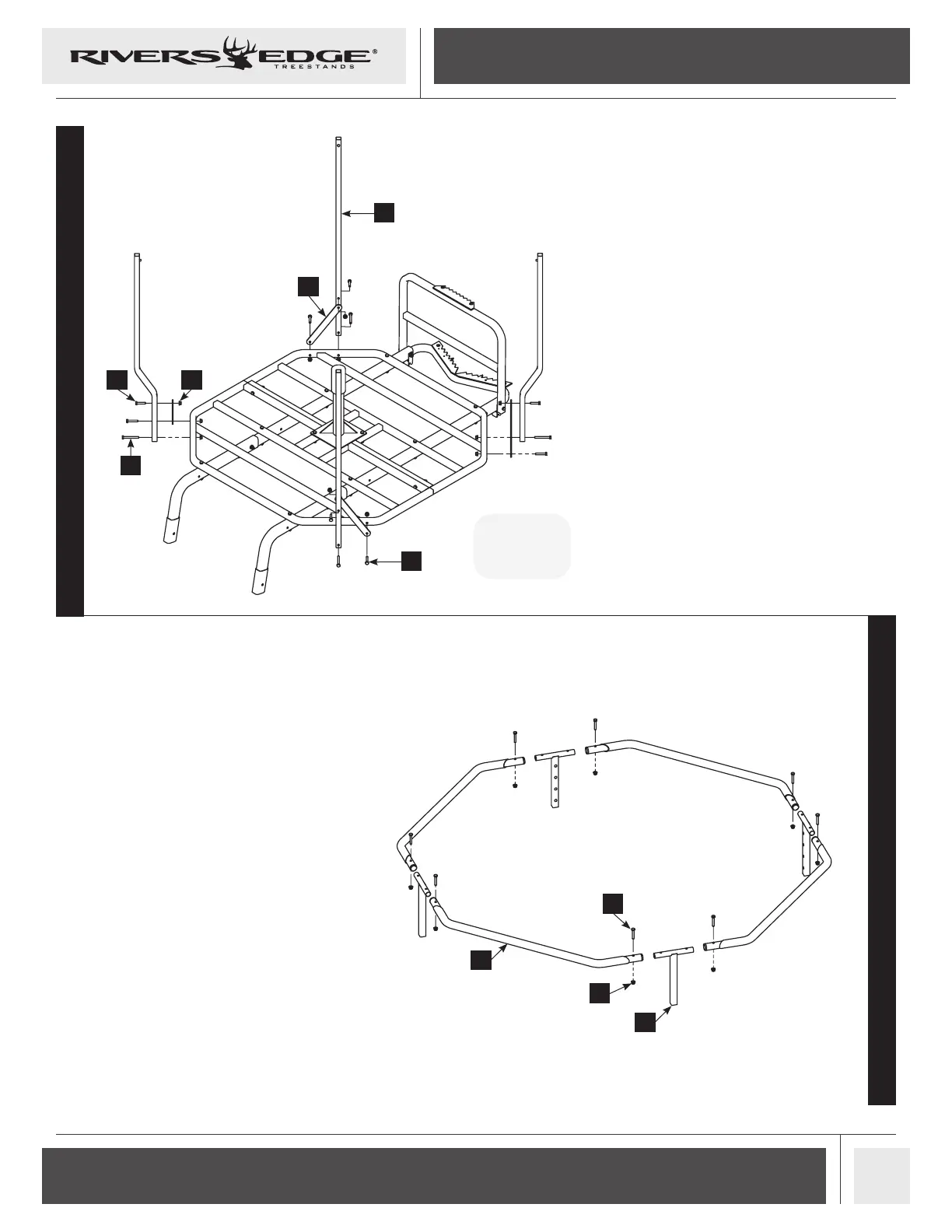

5. Attach four vertical supports (24) to the
assembled platform using four 1/4 X 2-1/4 IN
bolts (41) and nuts (44). Attach one support
brace (18) to the inside of each vertical support
(24) using a 1/4 X 1-1/4 IN bolt (45) and nut (44).
Attach to the opposite end of each support
brace (18) to the platform assembly using four
1/4 X 1-1/2 IN bolts (37) and nuts (44).
6. Assemble the shooting rail by inserting a
shooting rail hub (20) into each end of the
shooting rails (19). Secure using eight 1/4 X
1-1/2 IN bolts (37) and nuts (44).
NOTE: Pay close attention to the
orientation of the shooting rail hubs
(20). The four adjustment holes
should face the inside.
mesh hidden
for clarity
24
4445
41
18
37
37
44
20
19
To Next Page
