Operator's Manual
LOCKDOWN™ 21’ 360 1-MAN

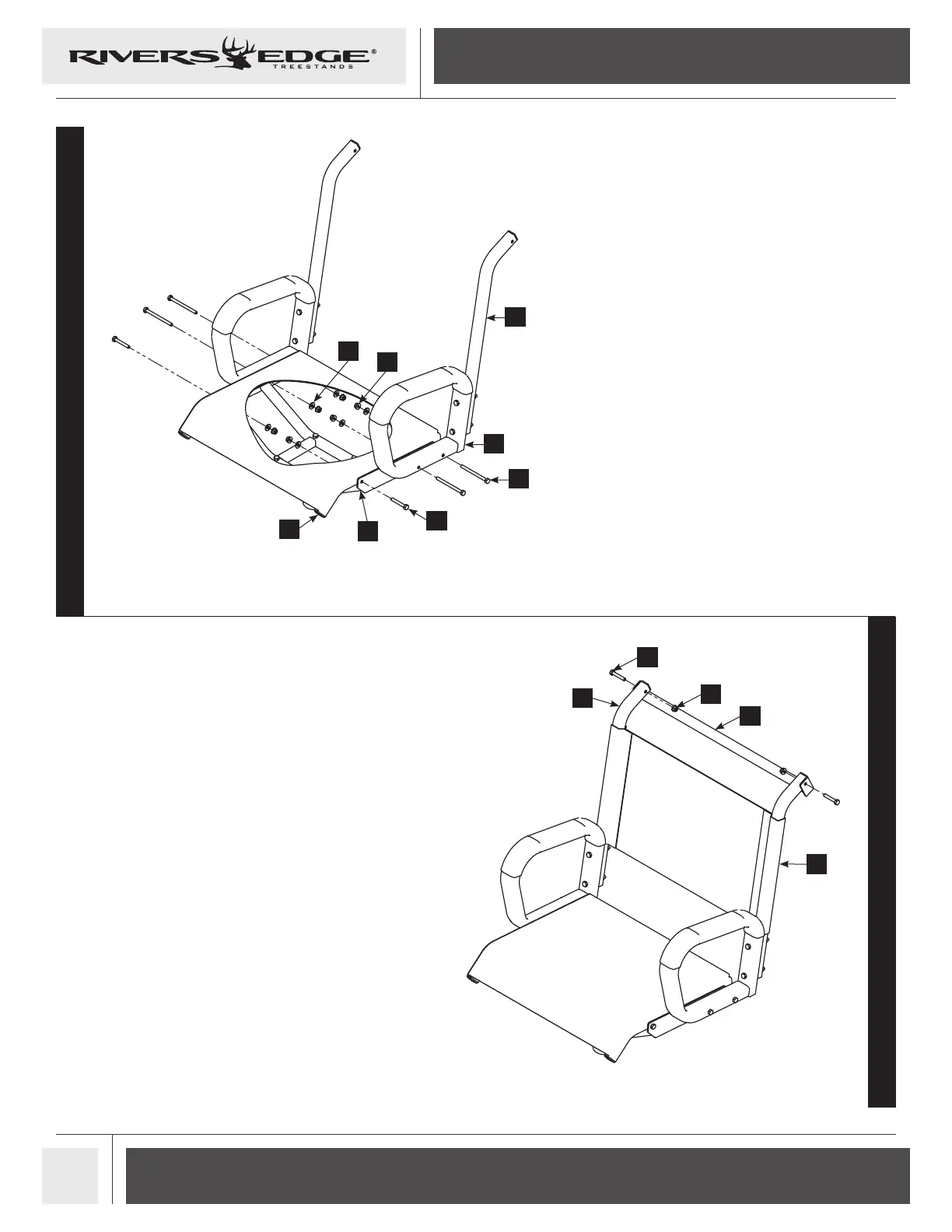

STEP 12
12. Next attach the seat assembly (30) and two
armrests/backrest assemblies (21, 22) to the
seat frame (29) using four 1/4 X 3-1/4 IN bolts
(42), two 1/4 X 1-3/4 IN bolts (38), six 1/4 IN steel
washers (39), and six nuts (44). The seat assembly
(30) will be tensioned to the inside of the seat
frame (29) by tightening the bolts.
13. Slide the backrest (31) onto the backrest tubes
(21). Attach the backrest spreader (32) to the top
of the backrest tubes (21) using two 1/4 X 1-1/2
IN bolts (37) and nuts (44).
NOTE: Do not attach seat to platform
assembly until after stand is completely
upright and secured to tree.
STEP 13
42
21
22
39
44
38
29
32
31
21
44
37
