Operator's Manual
LOCKDOWN™ 21’ 360 1-MAN

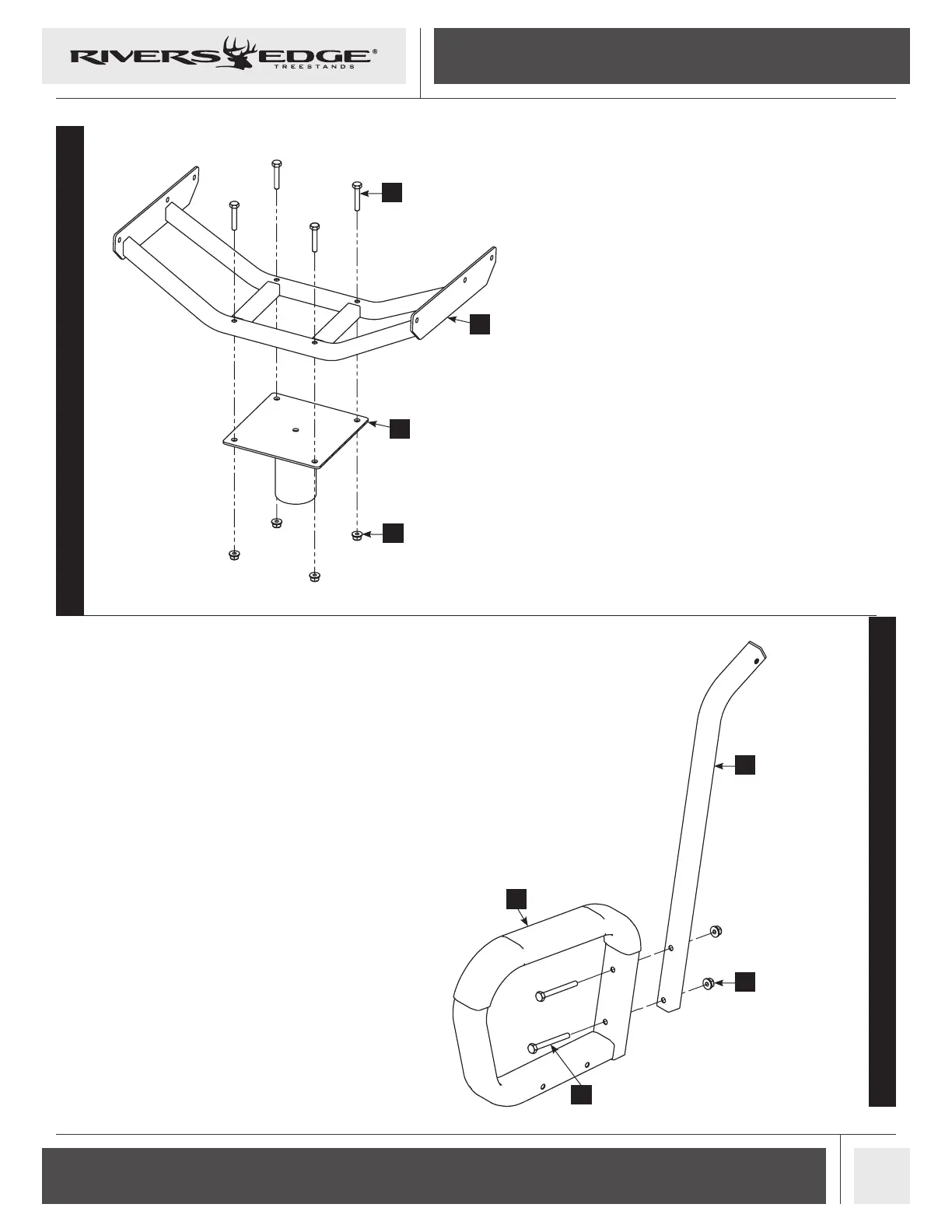

STEP 10
10. Begin assembly of the seat by attaching the top
seat post (4) to the seat frame (29) using four 1/4
X 1-1/2 IN bolts (37) and nuts (44).
STEP 11
11. Attach one backrest tube (21) to an armrest (22)
using two 1/4 X 2-1/2 IN bolts (40) and nuts (44)
for each armrest/backrest assembly.
37
29
4
44
21
44
22
40
