Operator's Manual
RETREAT 1-MAN Ladder Stand
FIGURE 5
FIGURE 6
FIGURE 5A
19
13
9
19
37
23
27
23
36
38
36
20
10
26
29

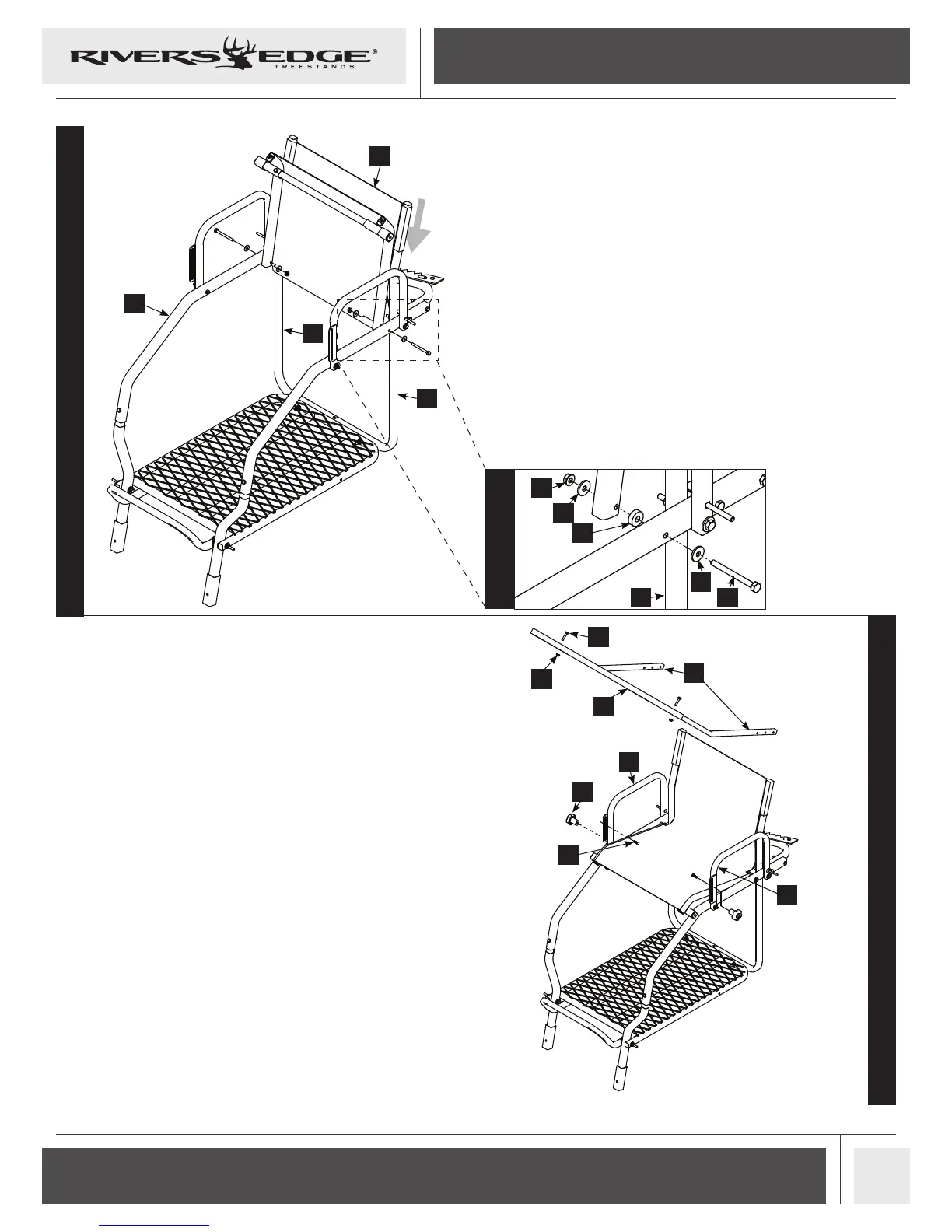

11. Take seat assembly (13) and slide over the top rear seat supports: left
(19) and right (14) as shown by arrow in FIGURE 5.
12. Connect the seat assembly (13) to the seat side rails (9) using two
1/4-20 X 2-3/4 IN bolts (37), four yellow washers (23), two yellow
spacers (27) and two 1/4-20 nuts (36). SEE FIGURES 5 & 5A.
13. Connect the two shooting rail braces (20) to the shooting rail (10)
using two 1/4-20 X 1-1/4 IN bolts (38) and two 1/4-20 nuts (36).
SEE FIGURE 6.
14. Install two M6 X 29 MM knobs (29) on armrests (11 & 12) with
M6 X 20 MM carriage bolts (26) as shown in FIGURE 6.
12
11
14
To Next Page
