Rivulis F2400 Media Filter
4

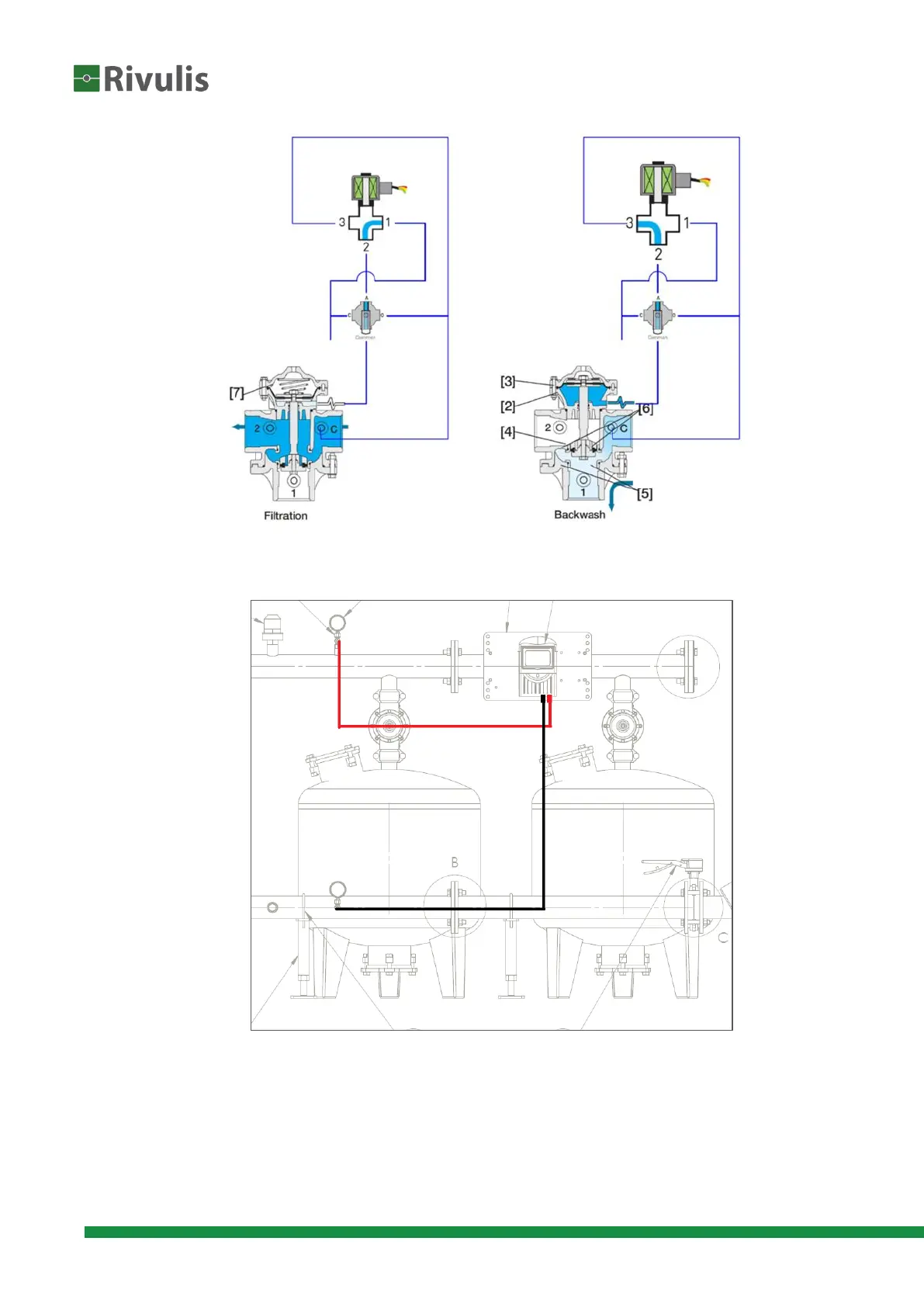

Image.3. Example of a hidraulic circuit in a backflushing valve with manual selector and latch
solenoid
Image. 4. Example of connections between the Programmer’s DP sensor and the
inlet/outlet of the array (High pressure: red, Low pressure: black)
