Rack Gizmo Wiring Diagram

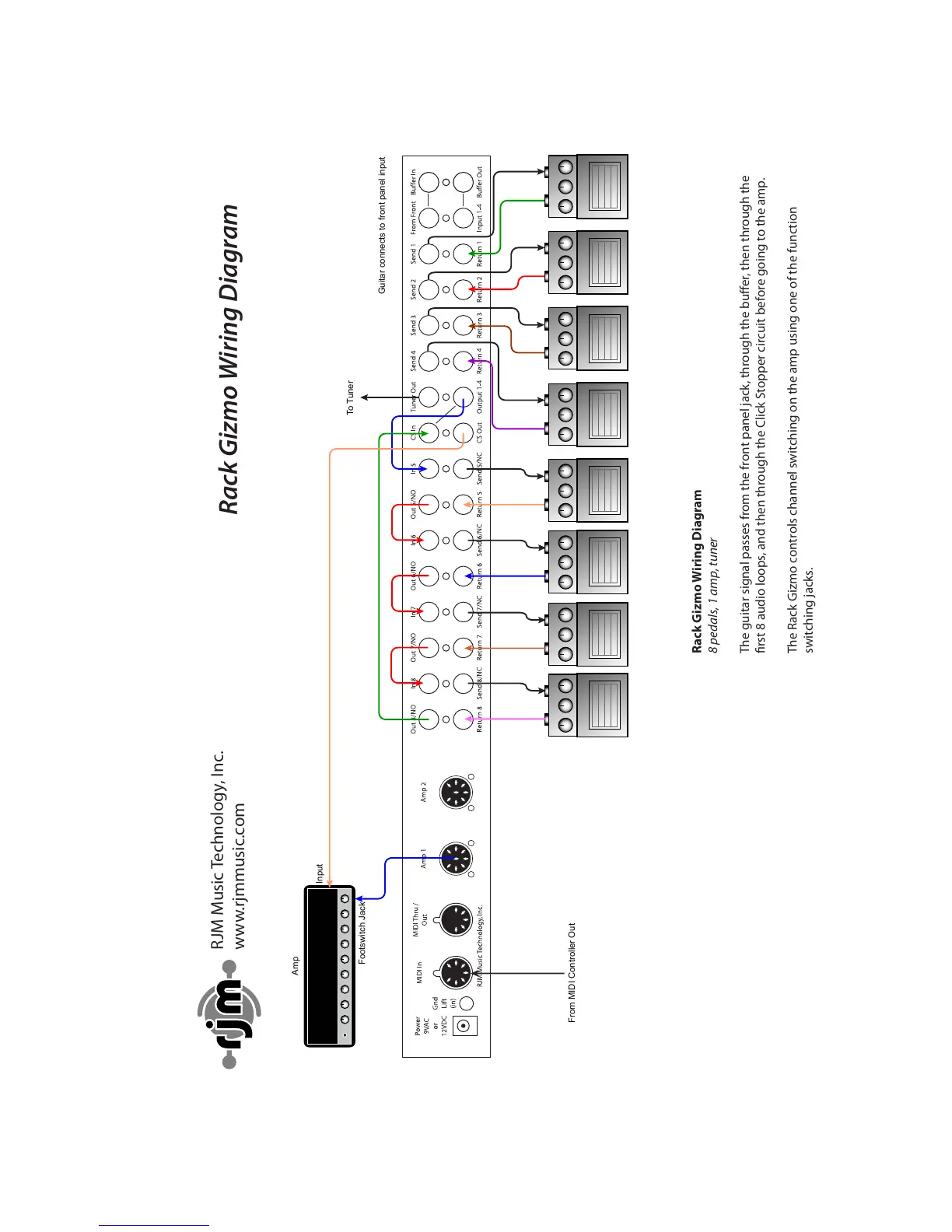

Rack Gizmo Wiring Diagram 8 pedals, 1 amp, tuner The guitar signal passes from the front panel jack, through the buer, then through the rst 8 audio loops, and then through the Click Stopper circuit before going to the amp. The Rack Gizmo controls channel switching on the amp using one of the function switching jacks.
Guitar connects to front panel input
From MIDI Controller Out
To Tuner
Footswitch Jack
Input
Amp
