User's Guide AEB4/8-O
7
9. Pin assignment of the TRS jacks
The analog outputs are accessible through stereo ¼" TRS jacks.
The AEB4-O is fitted with electronically balanced, single channel outputs (+ = tip). The servo
balanced output stage allows to use monaural TS jacks (unbalanced) with no loss in level.

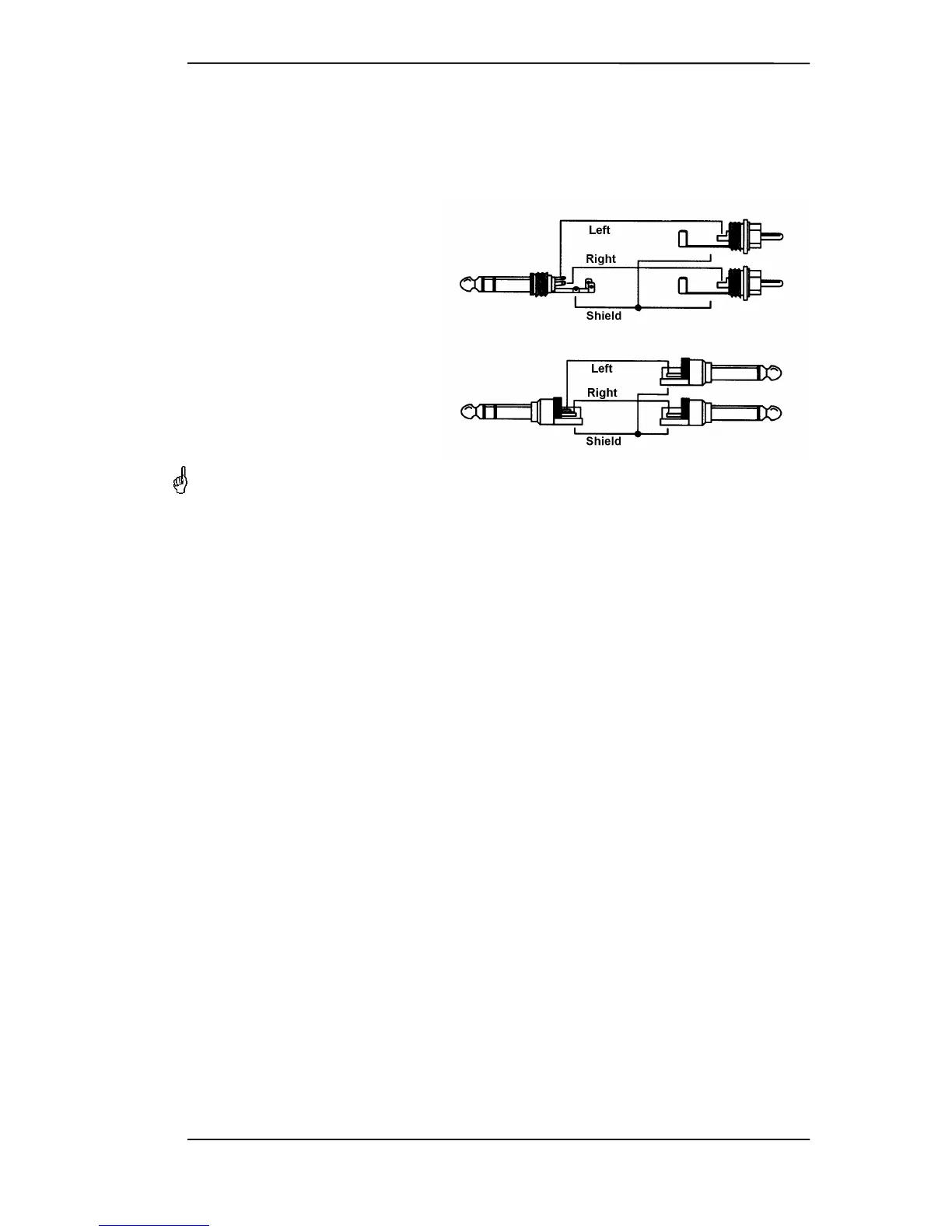

The AEB8-O is fitted with unbalanced
stereo outputs. Use an adapter TRS
plug to coaxial (phono) plugs, or TRS
plug to TS plugs (see drawing to the
right) for connection to external
equipment. We recommend to use so
called 'insert' cables.
The pin assignment follows interna-
tional standards. The left channel is
connected to the tip, the right channel
to the ring of the TRS jack/plug.
Tip: Up to 4 headphones can be connected directly to the AEB8-O!
10. Warranty
Each individual AEB undergoes comprehensive quality control and a complete test in a PC envi-
ronment at RME before shipping. The usage of high grade components allows us to offer a full
two year warranty. We accept a copy of the sales receipt as valid warranty legitimation.
RME’s replacement service within this period is handled by the retailer. If you suspect that your
card is faulty, please contact your local retailer. The warranty does not cover damage caused by
improper installation or maltreatment - replacement or repair in such cases can only be carried
out at the owner’s expense.
RME does not accept claims for damages of any kind, especially consequential damage. Liabil-
ity is limited to the value of the AEB. The general terms of business drawn up by Synthax OHG
apply at all times.
11. Appendix
RME news, driver updates and further product information are available on our website:
http://www.rme-audio.com
If you prefer to read the information off-line, you can load a complete copy of the RME website
from the RME Driver CD (in the \rmeaudio.web directory) into your browser.
