RMS MARLEY - Folding and Unfolding; Back Extender

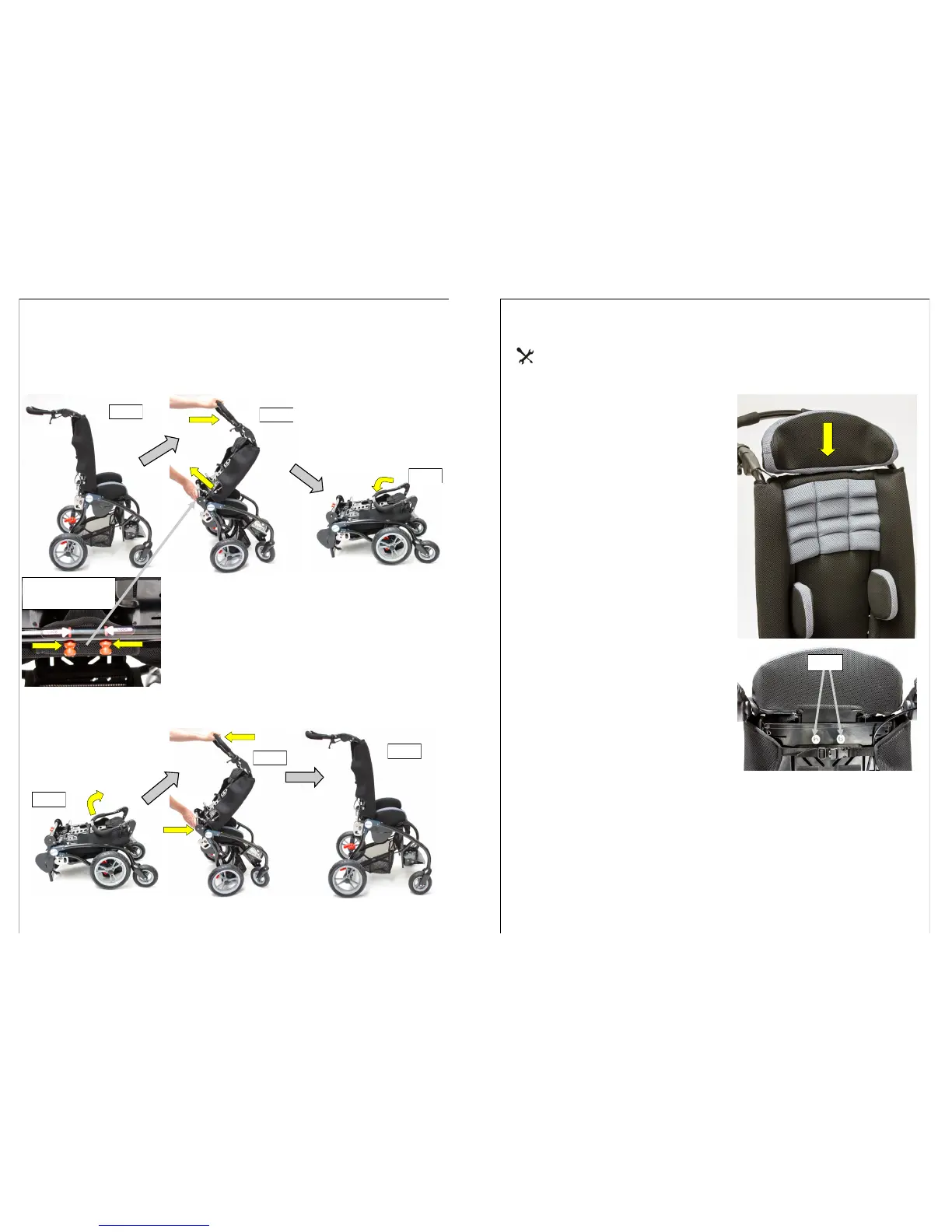

FOLDING the marley
Before folding the marley, apply both Parking Brakes and fold the footrest
upwards against its support panel. While holding the push handle, release the
seat locking mechanism (step 2), then push the push handle forwards until the
marley folds down flat (step 3).
The push handle may also
be folded downwards
against the backrest if
required, (step 3).
UNFOLDING the marley
After raising the push handle to the vertical position,
grasp the marley as shown below (step2). Whilst
pulling the push handle towards you, push the centre
area away from you until the marley opens out as
step 3.
NOTE: With the marley fully unfolded, the seat
locking mechanism is designed to engage automatically. This can be confirmed by
checking that both RED lock buttons are in line with the RED LOCK lines as shown
and then by lightly rocking
the push handle backwards
and forwards.
8
Step 1
Step 2
Step 3
Compress both RED
buttons to unlock
Step 3
Step 2
Step 1
BACK EXTENDER
Back Extender is supplied with fixings.
Tools Required: 10mm Spanner.
 Unfasten the top of the backrest
upholstery and temporarily fold forwards.
This will expose two mounting holes at
the top of the backrest panel.
 From the front of the backrest panel,
insert both M6 Carriage Bolts supplied
and loosely install the M6 nuts and
washers at the rear of the backrest panel.
 Slide the Back Extender downwards over
the front face of the backrest panel,
ensuring both slots engage under the
heads the Carriage Bolts.
 With the back extender correctly engaged
at the required height, finally tighten both
nuts sufficient to prevent any movement.
 Re-attach the backrest upholstery around
the Back Extender.
13
Fixings
