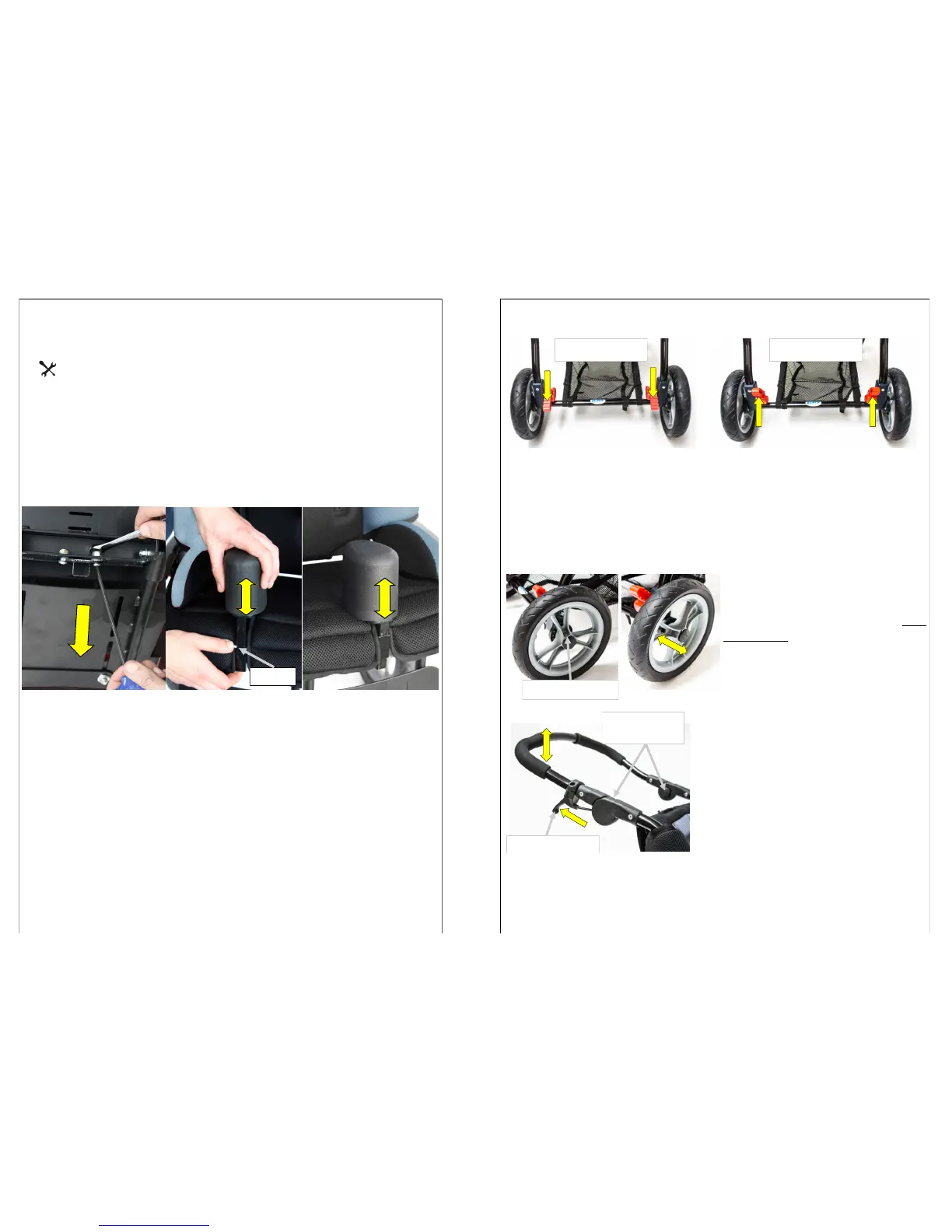

FITTING OPTIONAL ACCESSORIES
12
Pommel
Pic
ABDUCTOR (Pommel)
Abductor supplied with fixings.
Tools Required: 10mm Spanner and 4mm Hexagon Key
Locate the two pre-drilled mounting holes at the front of the seat panel.
Using the M6 Carriage Bolts, nuts and washers supplied, attach the mount to
the buggy seat and tighten sufficient to prevent any movement.
To insert the abductor, depress the pop-pin and push downwards until the pin
locks at the bottom of the mount. To remove the abductor, depress the pop-
pin and lift clear.
FRONT
Pop-Pin
BRAKE OPERATION
The marley Parking Brakes are easily foot operated as below.
Always apply both Brakes before making any adjustments, even on level ground.
Ensure both Brake Levers are fully raised to the “OFF “ position before moving off.
QUICK RELEASE REAR WHEELS
To reduce it’s over-all weight and/or for easier storage, the marley is equipped
with Quick-release rear wheels. After removing the occupant, set the brakes to
the OFF position before removing each wheel by depressing the spring retaining
clip in the centre of the wheel as
indicated.
To refit each wheel, depress the spring
retaining clip and slide the wheel Fully
and Firmly onto it’s axle before
releasing the retaining clip. Carefully
check to ensure both wheels are
locked in place before moving off.
TILT-IN-SPACE OPERATION
The Tilt Control lever is mounted on the Push
Handle, enabling convenient and easy
operation of the seat tilt from 15° to 50°.
To re-position the seat, operate the lever and
either push down or raise the push handle
until the required amount of tilt is achieved,
then release the lever to lock the seat in
position.
After setting the tilt angle, it may be necessary to re-adjust the Push Handle height.
This can be done easily by depressing both black locking buttons shown above
simultaneously and raise or lower to the required position.
9
Brakes ON Brakes OFF
Wheel Retaining Clip
Tilt-in-space Control
Height adjustable
lock buttons
