Ifa120VACcircuitgetsoverloaded,thecircuitbreak erwilldisrupttheelectricity.


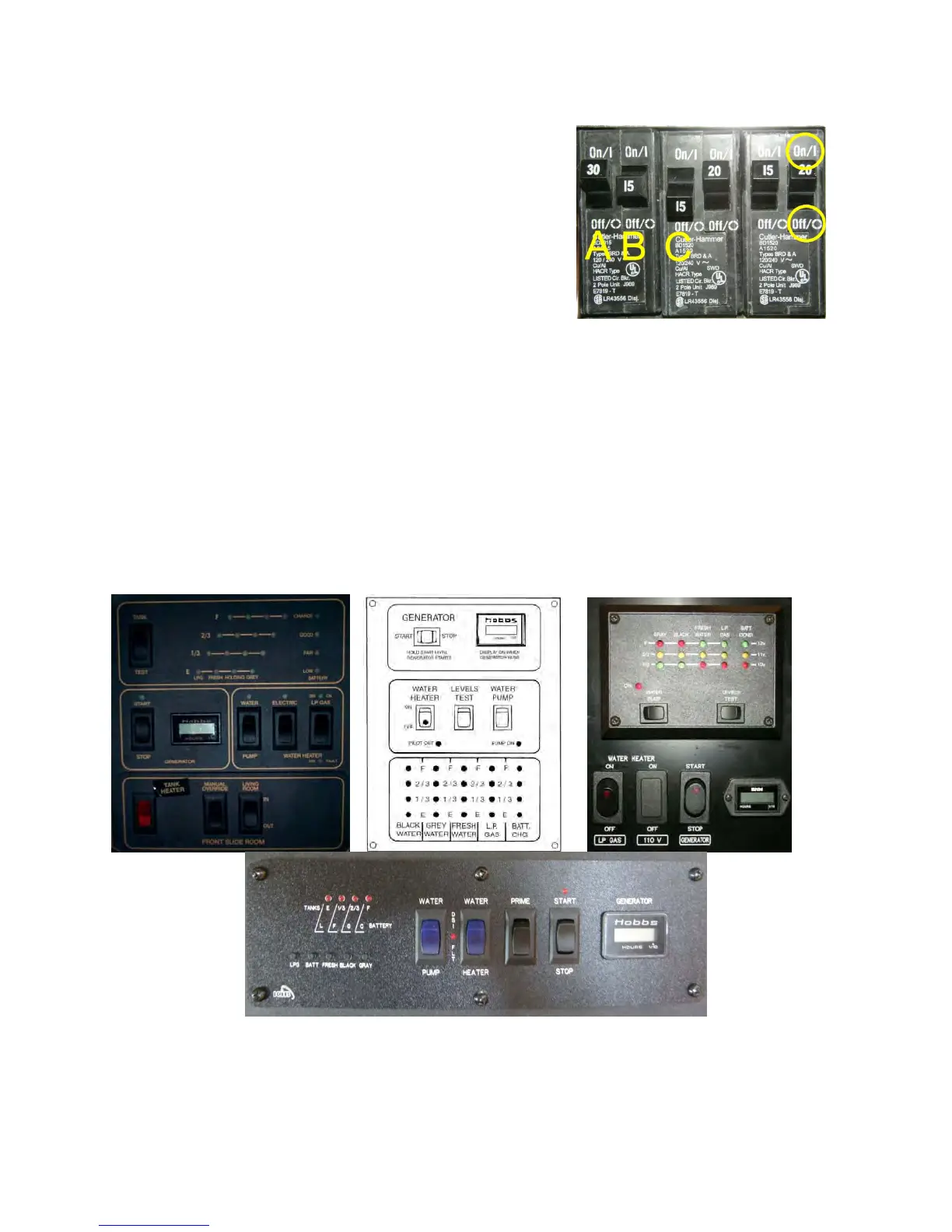

A showsacircuitbreakerintheONposition 
B showsacircuitbreakerhavingtripped–interruptedthe
electricityduetooverload
C showsacircuitbreakerisOFF
To reset a tripped (B) circuit breake r, it has to be turned
OFF(C)first,andthenitcanbeturnedbackON(A).Trying
to turn the circuit breaker back ON directly will not work
andkeepstheelectricityinterrupted.
ForfurtherinformationpleaseconsulttheTroubleshootingGuideonpage42.
Monitorpanel
Themonitorpanelprovidesyouwithanoverviewofthevarioussystems:
‐Freshwatertanklevel
‐Graywatertanklevel
‐Holding/Blackwatertanklevel
‐Propanetanklevel
‐Auxiliarybatteriescharging/condition
In addition, youcan operate the waterpump, waterheater; start/stopthe generatorand the
slide‐outroomsonsomemodels.

  



ForfurtherinformationpleaseconsulttheTroubleshootingGuideonpage42.
Typicalviews
–
mayvarydependingonmodel
Typicalview
