1
13
14

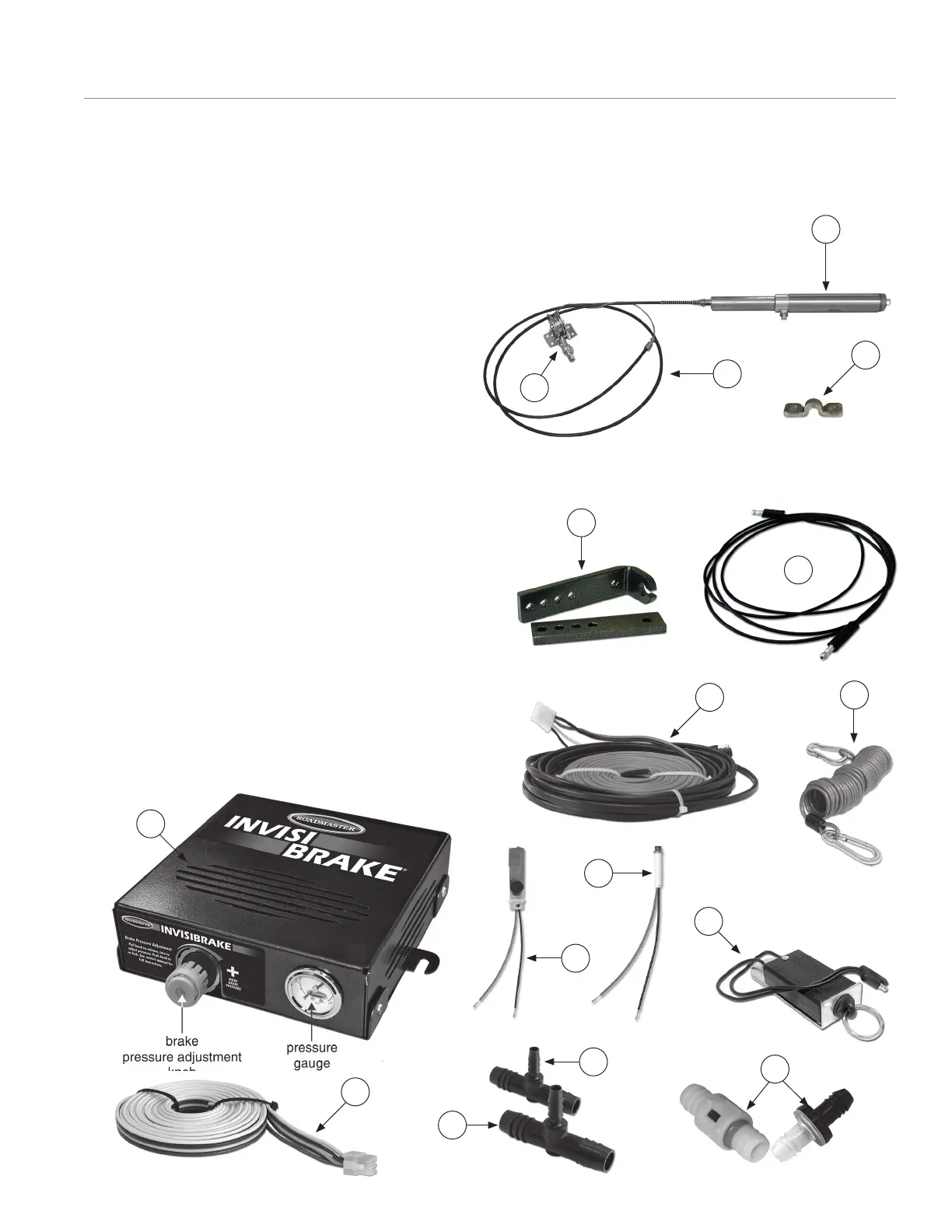

Components
7
21
22
11
12
10
23
3
1
4
6
(Components not shown to scale)
2
5
15
part number description
1 945201-00 ........InvisiBrake controller, complete
2 452109 ..............cable only
3 452109-20 ........air cylinder with air fitting
4 452104-10 .........pulley only
5 452140 ..............cable anchor bracket
6 945202-00 ........brake pedal clamp
(with mounting nuts and bolts)
7 450008 .............monitor wire patch cord
8 450008-15 ........car side monitor wire,
15 feet long (not shown)
9 450008-50 ........motorhome side monitor wire,
50 feet long (not shown)
10 945203-00 ........four-wire harness with 4-pin
connector:
break away, power and ground
11 8602 .................break away cable
12 650898 .............break away switch, pin and ring
200200-20 .......break away pin and ring only
13 300065-00 ........motorhome monitor LED
14 451350 ..............audio signal circuit board
15 Vacuum check valves
452141 ..............3/8" vacuum check valve
452142 ..............1/2" vacuum check valve
16 450701 ..............1/8" air line (not shown)
17 450700 .............1/4" nylon vacuum line (not shown)
18 452111 ..............1/4" rubber vacuum hose,
one foot (not shown)
19 452137 ..............3/8" rubber vacuum hose (not shown)
20 452136 ..............1/2" rubber vacuum hose (not shown)
21 4 52118 ..............3/8" vacuum line tee
22 452116 ..............1/2" vacuum line tee
23 945204-00 ........four-wire flat harness with six-pin
connector: towed lighting
