For vehicles with brake pedal presets —
Make certain that the cable and brake pedal clamp assembly were installed with the brake pedal as
close to the driver’s seat as possible. MAKE CERTAIN THAT THE BRAKE PEDAL IS AT THAT POSITION
WHEN TOWING.
As an option, the brake pedal may be moved to the desired position and disabled. Do not rely on a
mental note to never move the brake pedal.
Failure to follow these instructions may cause unintended braking and eventual brake failure, which
may result in property damage, personal injury or even death.

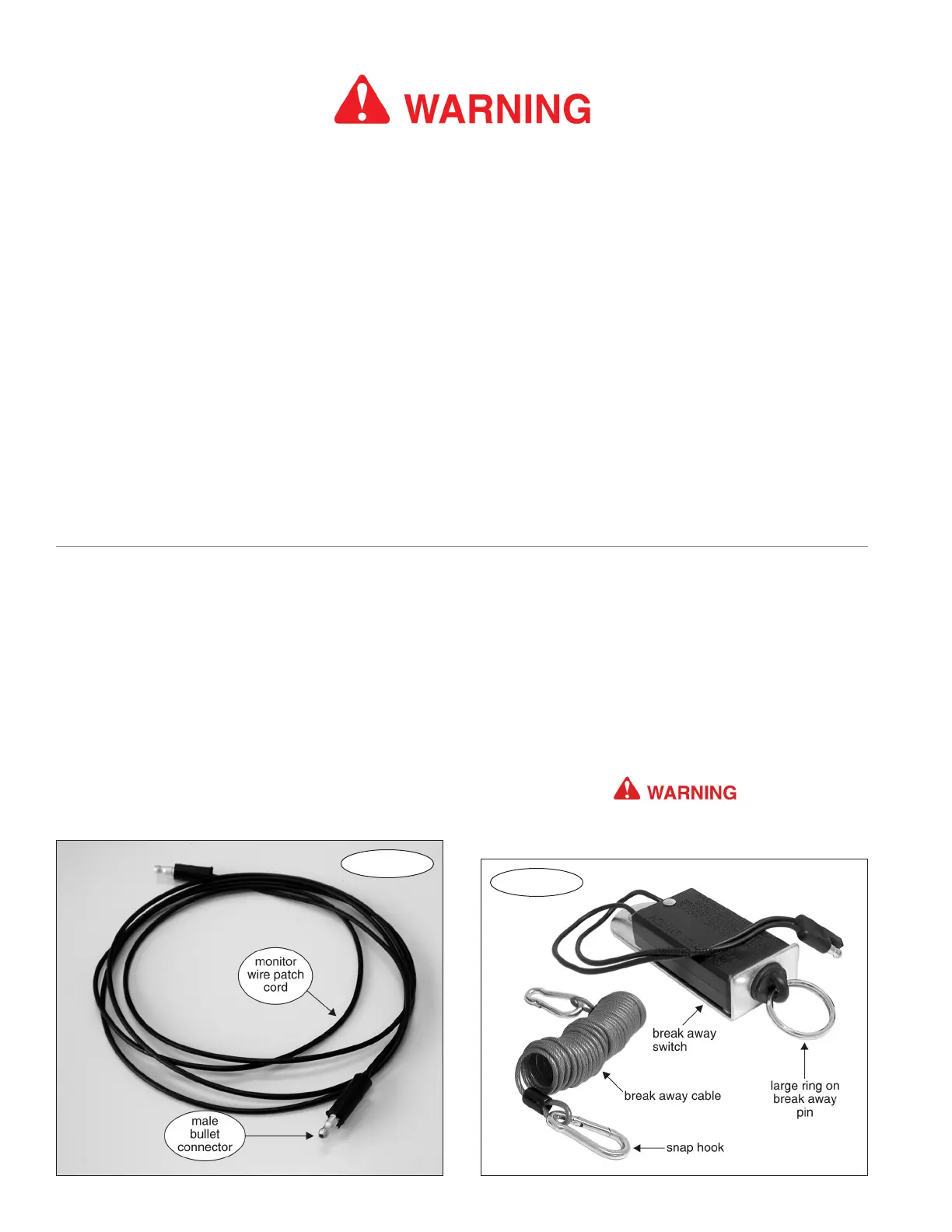

Figure 2
Figure 1
The installer should have pre-set the braking pres-
sure to a level appropriate to your vehicle. If the Invisi-
Brake brake pressure is ever adjusted, or if InvisiBrake
is transferred to another vehicle, follow all instructions
in the section titled “How to change the brake pres-
sure.”
1. Connect the monitor wire patch cord — plug the
monitor wire patch cord (Figure 1) into the front of the
towed vehicle and the rear of the motorhome.
Allow enough slack to prevent the patch cord from
being pulled loose when the motorhome turns. If the
cord is too long, wrap it around or through the umbilical
cord.
2. Connect the break away cable — Attach one of
Preparations for towing
If the InvisiBrake controller is installed under one
of the seats, carefully check to make certain that
the controller will not interfere with the movement
of the seat or affect any adjustments to the seat.
Severe non-warranty damage to the seat and/or the
controller can result if the seat comes into contact
with the controller.
If there is interference, make certain that the seat
is not moved beyond the point that would cause
damage.
Failure to follow these instructions may cause
property damage.
the snap hooks (Figure 2) to the large ring on the break
away pin (Figure 2) at the front of the towed vehicle,
then clip the other end of the break away cable to the
rear of the motorhome, close to the center.
Note: see the break away warnings beginning on
this page.
3. Turn the motorhome park lights on — this will ac-
tivate the InvisiBrake charge circuit, which will provide
a constant trickle charge to the vehicle’s battery during
towing.
4. Enjoy your travels.
When connecting the break away system, always
continued on next page
CAUTION — check seat movement and adjustments
