Side view Front view
Note: If the product is installed in a floor cabinet, the floor cabinet structure diagram shown in
the above figure is recommended to ensure the consistent visual effect between the
product door body and left & right cabinet doors.
Side plate
wrapped with the
bottom plate
Front
50
50
W
Fixed board

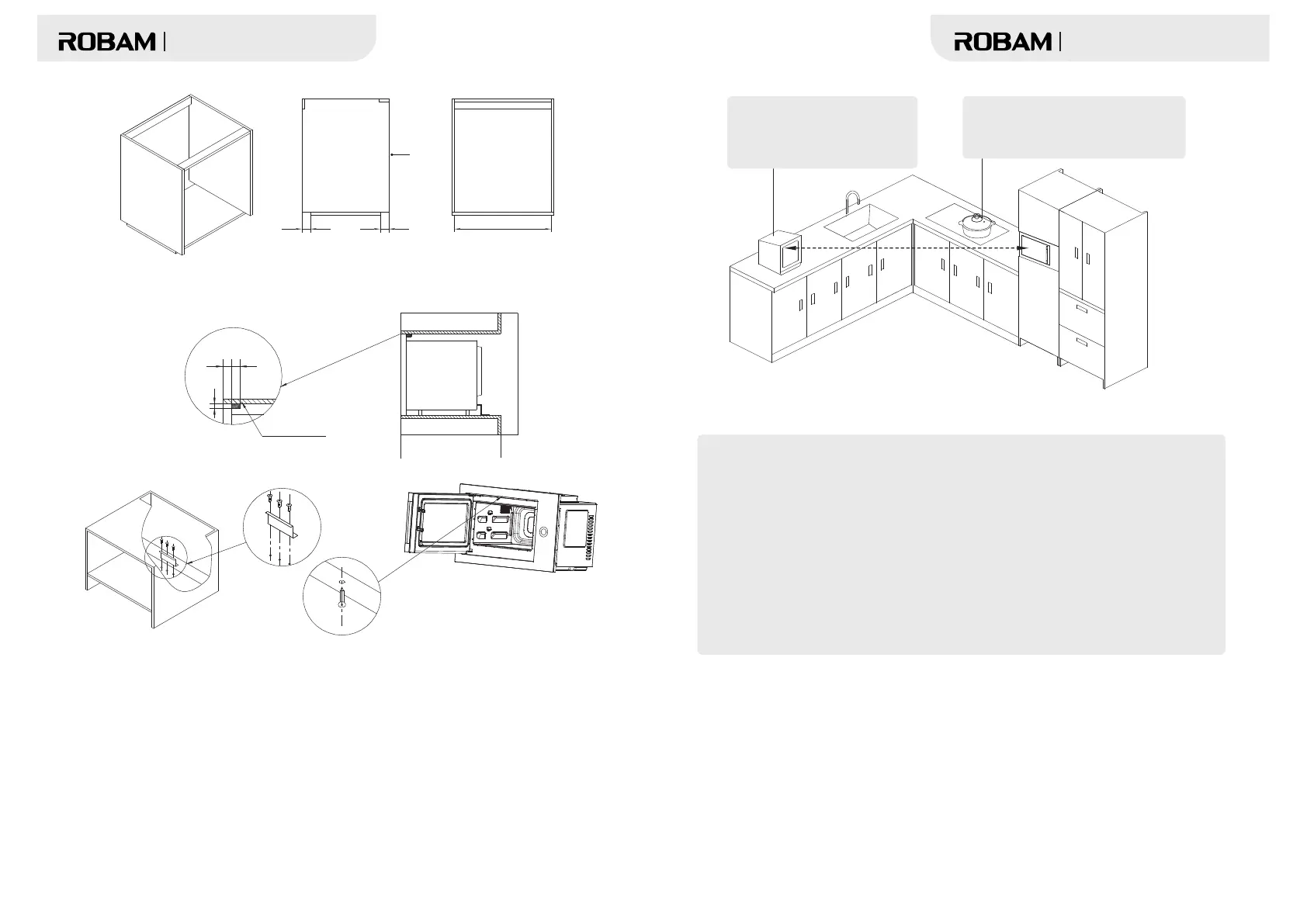

Fig. 3: schematic diagram of fully embedded installation of fixed board
20 20
16
Fig. 4: installation diagram
Be sure the oven is far away from
such appliances as TV set, radio and
antenna. (Otherwise, interference to
the image or sound of these
appliances will occur)
(The pictures are for reference
only and the physical products
shall prevail)
5M
Note: the upper part of the top shell of the complete appliance shall maintain a gap of more than
3mm with the cabinet.
Do not place the compact oven with
mi c row a ve in a pl a ce w ith hi g h
temperature and humidity. For example,
near a gas stove, live areas or sinks.
Power supply: the Robam compact oven with microwave shall adopt a separate
power supply system. If this system is not used, the fuse may blow or the cooking
time may be prolonged. However, high-capacity fuses are not supposed to apply
in the power system.
Grounding instructions: the equipment must be grounded. The plug must be
plugged into a properly grounded socket. The power cord must be easily
connected and disconnected to ensure that the power supply can be disconnected
at any time after the oven is installed.
Note: if the indoor temperature is too high, the compact oven with microwave
cannot be used. The compact oven with microwave is for residential use only.
Compact Oven with Microwave Compact Oven with Microwave
解冻
复热
双驱烤
组合
功能
默认
火力
默认
温度
默认
重量
默认时间
火力范围
温度范围
1档：300W
2档：550W
3档：700W
4档：800W
5档：1000W
1档：140℃
2档：160℃
3档：180℃
1档
2档
3档
4档
5档
5档
5档：1000W
2档：550W
/
/
/
/
/
/
20min
30s
20min
20min
1min50s
1min36s
100g
200g
/
/
/
/
3档：
180℃
/
/
/
/
/
5档：
1000W
/
1档
5档
微波
1000W
微波
烤烧
微波
550W
解冻
复热
双驱烤
组合
烤烧
微波
时间范围
加热管
800W
微波变频
器1000W
照明灯
2.5W
搅拌电机
4W
散热风机
18W
重量
范围
功能
5s-30min
1-90min
5s-90min
1-90min
1-90min
/
/
/
/
200g
300g
400g
500g
600g
100g
200g
300g
400g
500g
600g
700g
800g
900g
1000g
1100g
1200g
1300g
1400g
1500g
1600g
1700g
1800g
1900g
2000g
2100g
2200g
2300g
2400g
2500g
2600g
2700g
2800g
2900g
3000g
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
◎
◎
◎
◎
◎
◎
5s-90min
5s-90min
5s-90min
必选
受温度控制
