1.Be sure the copper core, copper cover, copper base and pan stand in right
position.Check the switch first before turn on the valve of the gas.(PIC1).
2.IGNITION METHOD: Push the switch and turn to 90 degrees anti-clockwise for the
strong fire(PIC2),meanwhile the poop sound of pulse firing can be heard. The full
push should be taken for 3-5 seconds till the flame comes out. Otherwise, the same
operation above should be retaken. In addition, push the switch and turn to 90
degrees anti-clockwise again is the small flame. (PIC 3)
Use Instruction
REMARKS:
①The first ignition or that of the first reuse of the gas hob may not work immediately,
because of the air inside the tube.Only repeat the operation will work.
②Between copper core and copper base, there is some gap, and it may cause flame.
It’s normal action.
3.SWITCH-OFF:Turn the switch to the position clockwise(PIC 1) and the fire will be
switched off.
4. FIREPOWER CONTROL: Operate according to the instruction mark.

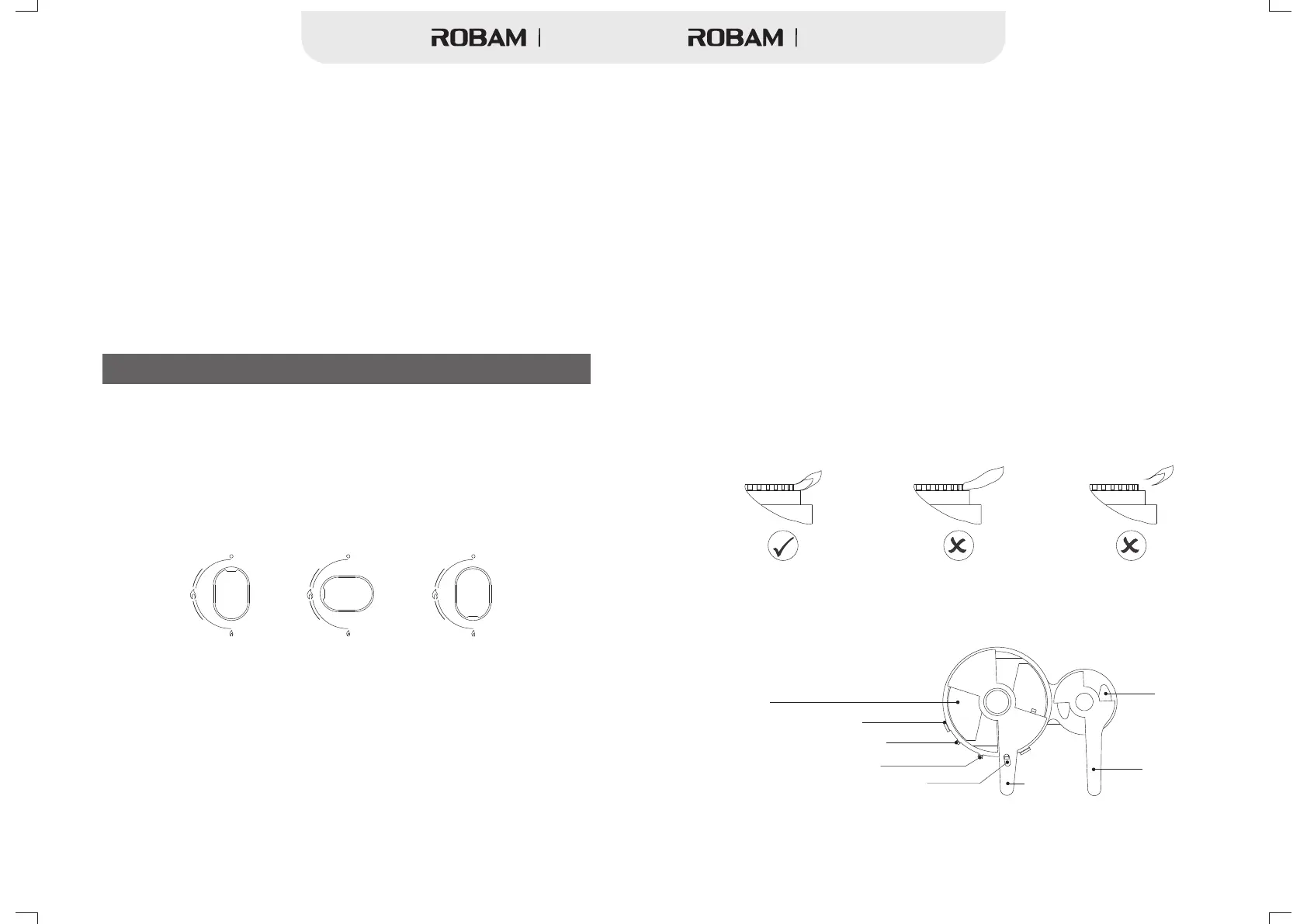

picture1 picture2 picture3
5. AIRFLOW CONTROL: The air valve, which is used to control the airflow to make the fire
in the good condition, can be adjusted through the spot nail of air valve adjustment under
the cooktop. By turning it clockwise or anti-clockwise to control, which leads the flame
changes accordingly and confirmed until the flame in steady and normal blue color
condition. ( PIC below). The way of distinguishing the flame status is as follows:
●Air deficiency: the flame is stretched and takes on yellow or red, the interior and exterior
flame is faintly.
● Air superabundance: the flame is unstable, about to leave the fire cover or flame
becomes short obviously (sometimes will occur backfire when using manufactured
gas), and color of flame appear cyan.
● Combustion well: the flame takes on cyanine, no yellow flame or red fire, the interior
and exterior flame is clear.
In flow
Stop block for air door
Stop block for nature gas
Stop block for liquid propane gas
Stop block for manual gas
Air door
Air door
In flow
Normal
(Full Combustion)
Yellow Flame
(Air deficiency)
Floating Flame
(Air superabundant)
4.The size of the borehole should be taken according to the requirement, and put the
built-in gas hob to match the borehole.
5.If the G1/2 inch connector is used, please make sure to put the rubber gasket
inside the connector and the leaking test should be taken before use.
6.The qualified reduction valve should be used when the LPG is used as the
source of the gas.
7.Assisting pan stand is available for some models, and only can be used for pan of
φ100mm.
5
6
Gas Hob Gas Hob
