Page: 12

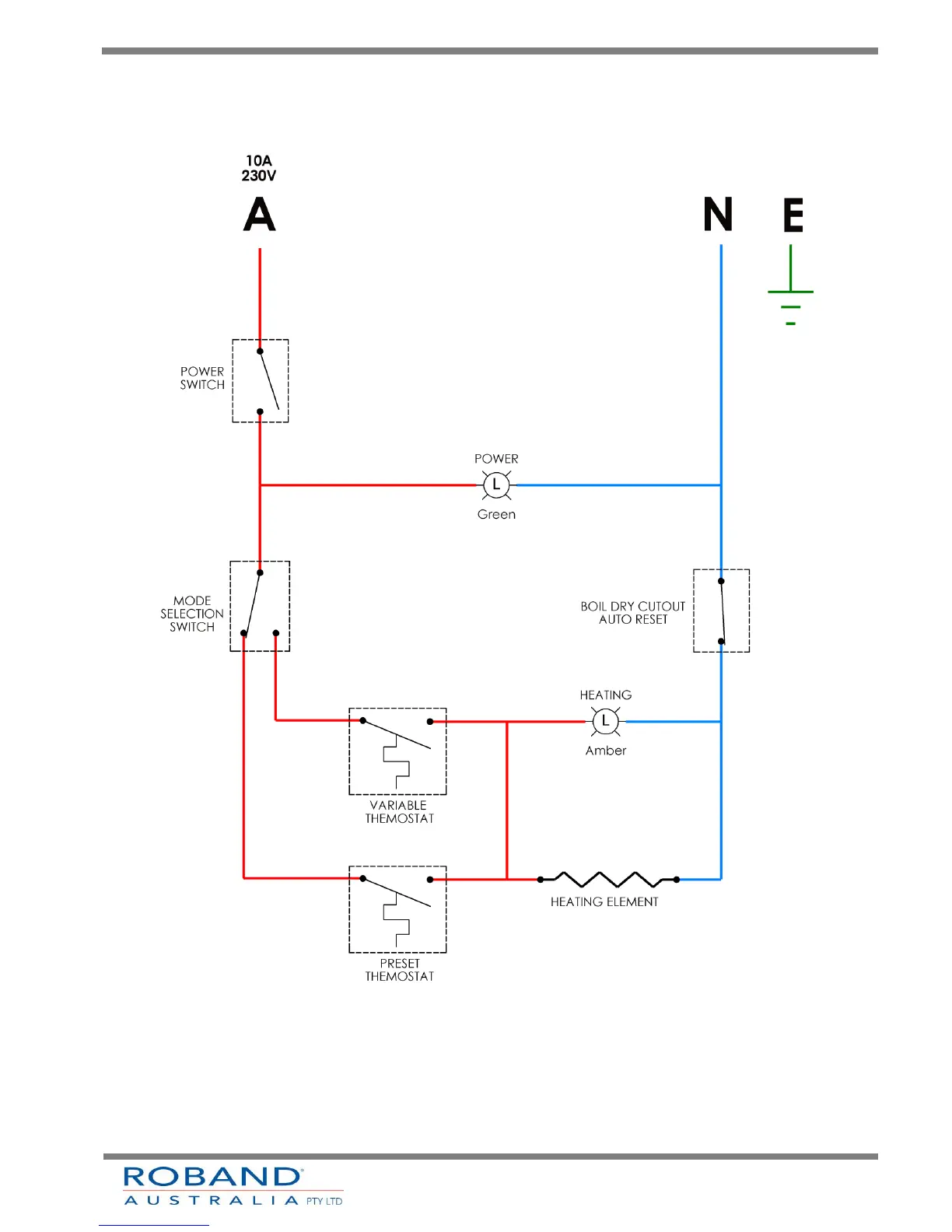

CIRCUIT DIAGRAM
UDS10VP, UDS20VP, UDS30VP
NOTE: This circuit diagram has been provided for reference and to assist
qualified service and repair agents only. Under no circumstances should
person’s not suitably qualified attempt repairs to any electrical equipment.
