Operating Instructions
Roxxy BL-Control 900 series
8
Introduction
A range of compact, lightweight speed controllers exploiting the new Cool Power FET technology, resulting in particularly high-performing, extremely
versatile controllers which are ideal for model aircraft, boats, cars and electric helicopters. The speed controllers are particularly well suited for use in
conjunction with the ROXXY series of brushless motors, but can also be employed with other BL motors.
Please read right through these instructions before connecting and using the controller.

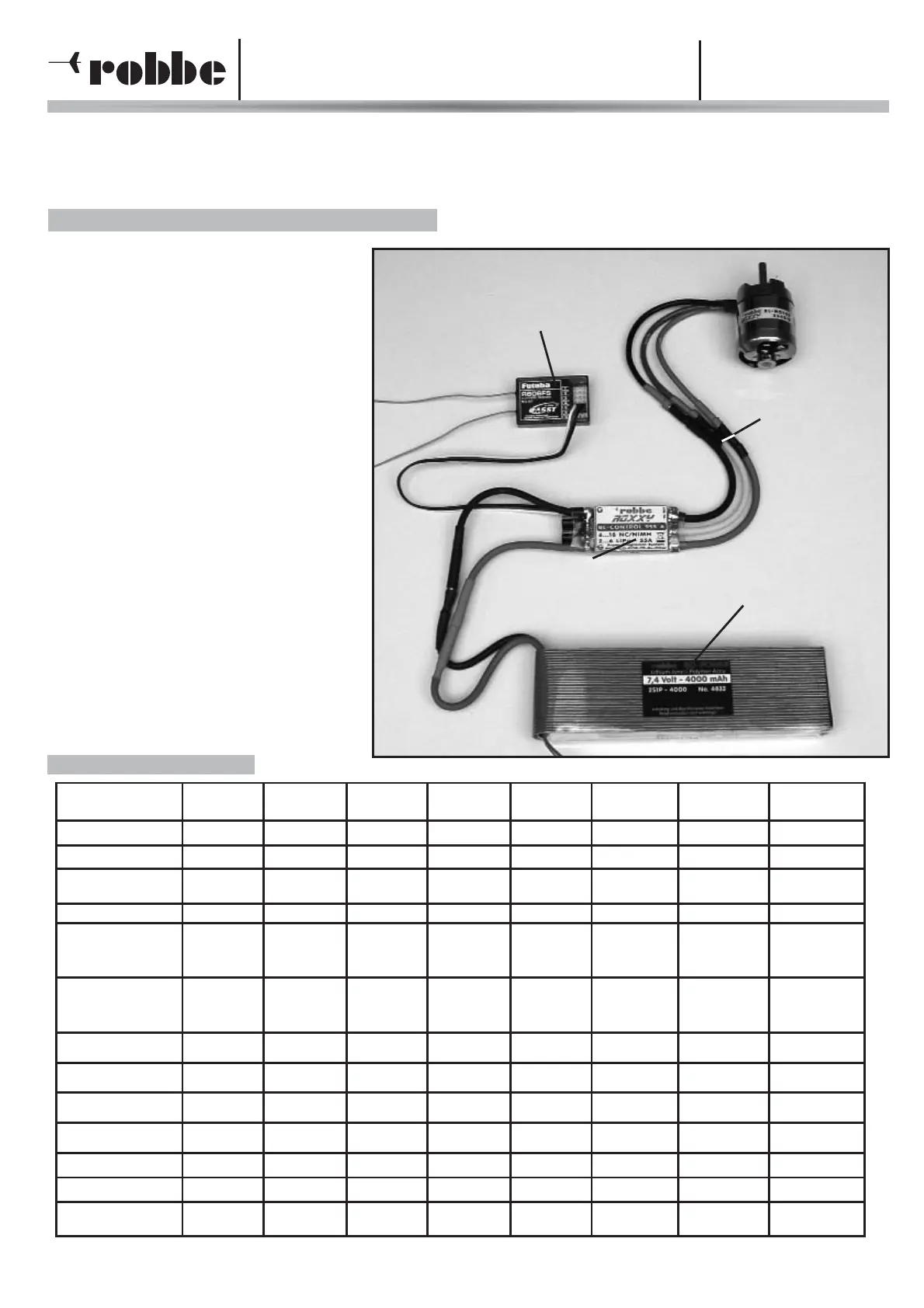

1. Connections, special features
Drive battery
Motor controller
motor connection
Receiver
2. Specification
Prepare the red (positive) wire and the black (nega-
tive) wire for connection to the drive battery by at-
taching a suitable connector system. Insulate each
individual soldered joint with a heat-shrink sleeve.
BL 908
No. 8627
BL 918
No. 8628
BL 930
No. 8629
BL 930-6
No. 8630
BL 940-6
No. 8631
BL 950-6
No. 8632
BL 960-6
No. 8634
BL 9100-6
No. 8635
Load current: 8 A 18 A 30 A 30 A 40 A 50 A 60 A 100 A
Peak load: 12 A 22 A 35 A 35 A 50 A 60 A 70 A 110 A
Dimensions (mm):
35x22x7 38x22x7 49x25x10 49x25x10 66x25x10 66x25x10 66x25x10 76x26x13
Weight (g): 15 g 25 g 29 g 29 g 47 g 49 g 49 g 67 g
Cell number: 6...12 NC/
NiMh
2...4 LiPo
6...12 NC/
NiMh
2...4 LiPo
6...12 NC/
NiMh
2...4 LiPo
6...18 NC/
NiMh
2...6 LiPo
6...18 NC/
NiMh
2...6 LiPo
6...18 NC/
NiMh
2...6 LiPo
6...18 NC/
NiMh
2...6 LiPo
6...18 NC/
NiMh
2...6 LiPo
BEC: 5,5 Volt
max. 2 A
5,5 Volt
max. 2 A
5,5 Volt
max. 2 A
5,5 Volt
max.2 A
5,5 Volt
max.3A/
peak 5A
5,5 Volt
max.3A/
peak 5A
5,5 Volt
max.3A/
peak 5A
5,5 Volt
max.3A/
peak 5A
SPS: yes yes yes yes yes yes yes yes
Rx-Filter: yes yes yes yes yes yes yes yes
PCO: yes yes yes yes yes yes yes yes
POR: yes yes yes yes yes yes yes yes
hec: 32 kHz 32 kHz 32 kHz 32 kHz 32 kHz 32 kHz 32 kHz 32 kHz
TP: yes yes yes yes yes yes yes yes
Cool Power FET: - - yes yes yes yes yes yes
