Robern Uplift Tech - Surface Mounting: Cabinet Hanging

7
© 2019 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Part no. 209-1311-rA rev. 06/13/19
Uplift Tech Cabinet


screws and tighten until there is a strong resistance. Do not overtighten.
4. Lift the cabinet and place the cabinet onto the Z mounting bar.







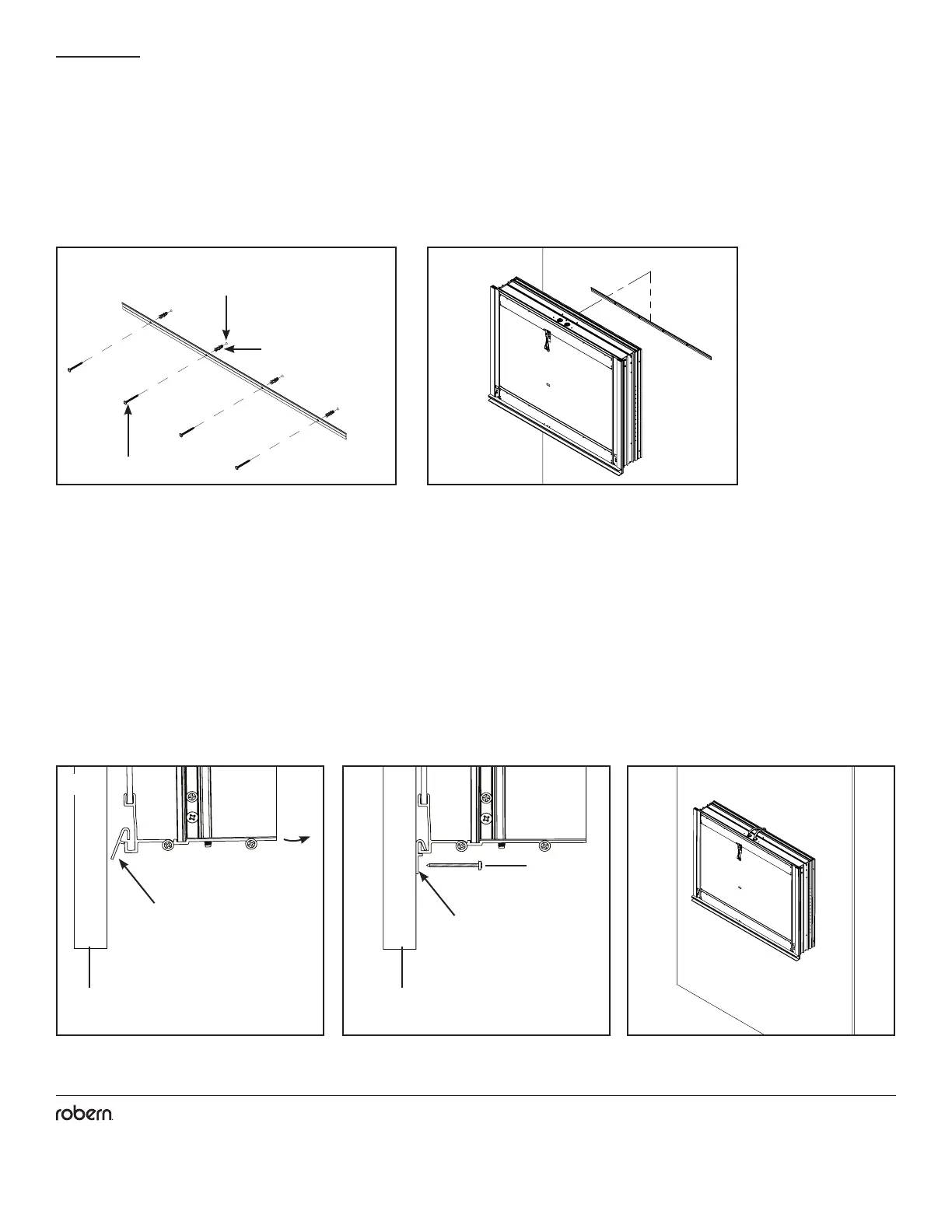

STEP 1B - SURFACE MOUNTING
3b
5/16"

203-1349
SS674
4
Pull bottom of cabinet away
from the wall by about 1/2"
and attach lower mounting
brackets as shown (some
components have been
hidden for clarity)
25.563
DETAIL A
SCALE 1 : 1
5 6 7
Wall Wall



