Preparing for use

Sharpening Belt Alignment

Place the front edge of the base plate so that it is level with the leading edge of the worktop or

bench. Screw or bolt the base plate in this position.

Ensure the on/o switch is in the OFF position and plug into a standard electric wall socket. Check

the cable is in a safe position and that all moving parts of the machine are clear of any obstruction.

Switch on the power at the wall socket and switch the system on. Before operating the machine

please watch the belt to check for alignment, it has been pre-tracked in the factory but it may have

moved during transit.

Those marked* are included in the ProEdge Plus.

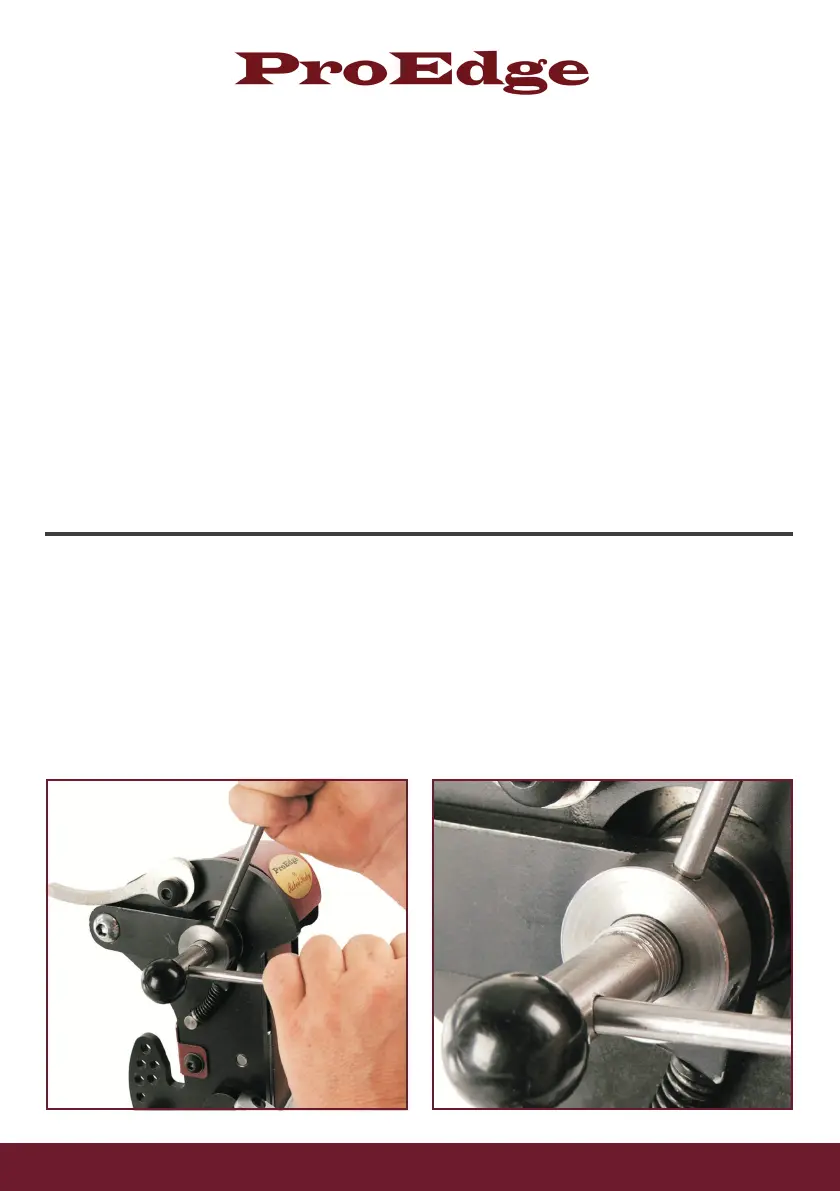

HowtoadjusttheBeltAlignment

While the system is running, place the two tracking adjustment bars into the holes in the spindle shaft

and the locking collar. Holdtheshaftstationaryandslackenthelockingcollar(anti-clockwise)

priortomovingthetrackingshaft. Small adjustments of the tracking shaft will move the belt to the

left and right on the pulley.

Please ensure the belt is tracked to the right hand edge of the backplate.
