Robin DY23-2D Service Manual

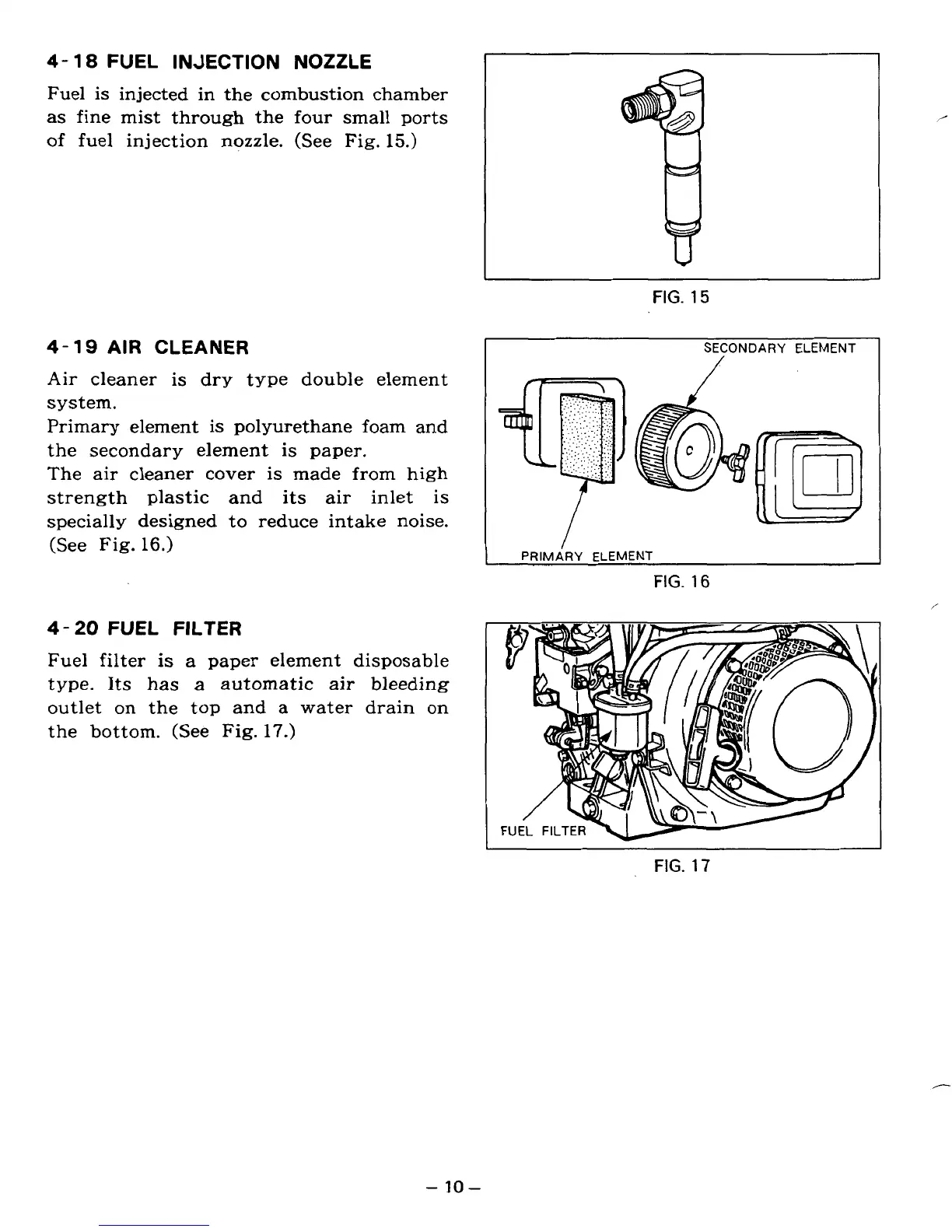

4-18 FUEL INJECTION NOZZLE
Fuel is injected in the combustion chamber
as fine mist through the
four small ports
of fuel injection nozzle. (See Fig. 15.)
4- 19 AIR CLEANER
Air cleaner is dry type double element
system.
Primary element is polyurethane foam and
the secondary element is paper.
The air cleaner cover
is made from high
strength plastic and its air inlet is
specially designed to reduce intake noise.
(See Fig.
16.)
4- 20 FUEL FILTER
Fuel filter is a paper element disposable
type.
Its has a automatic air bleeding
outlet
on the top and a water drain on
the bottom. (See Fig.
17.)
FIG. 15
SECONDARY ELEMENT
/
PRIMARY ELEMENT
FIG. 16
/
FIG. 17
- 10-
