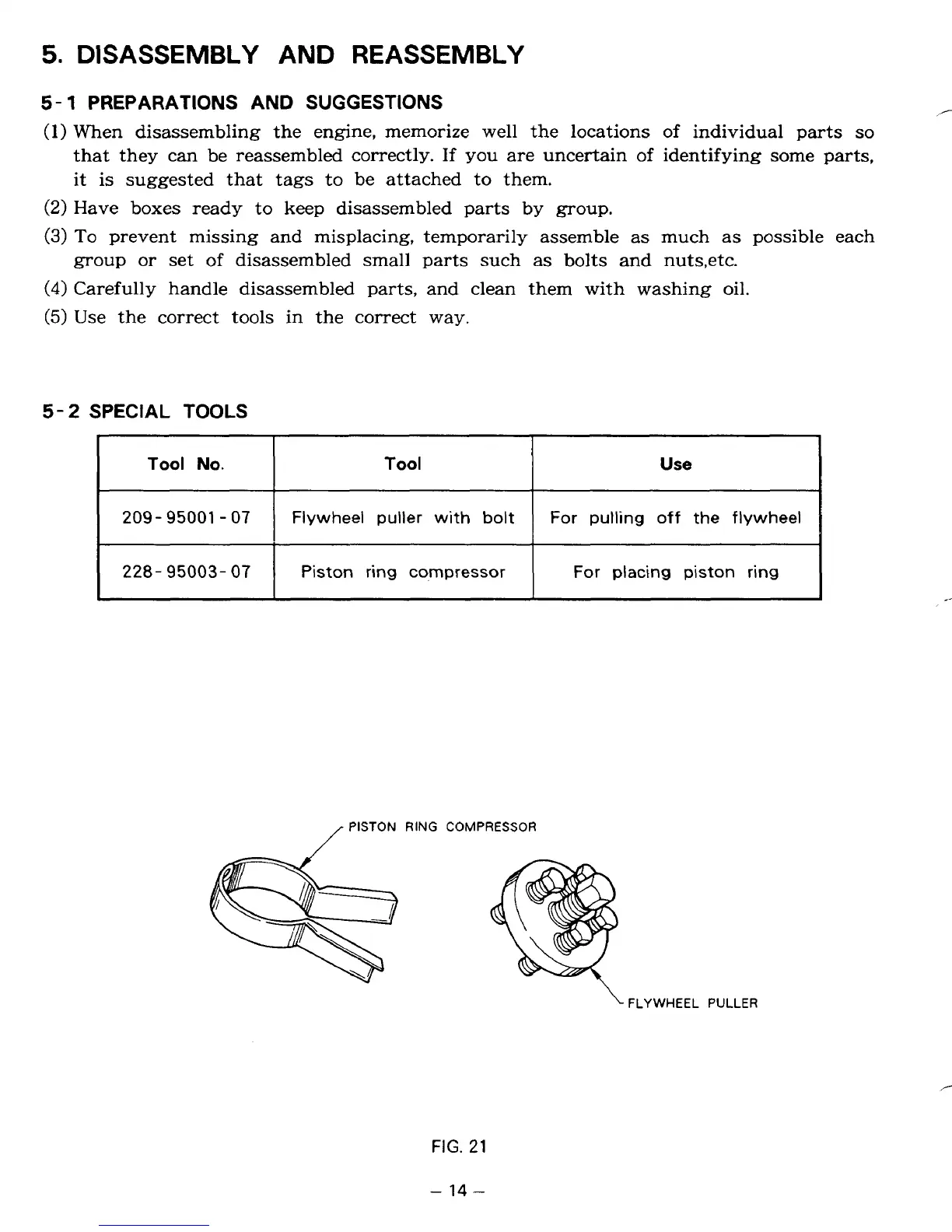

5.
DISASSEMBLY
AND
REASSEMBLY
5-
1
PREPARATIONS AND
SUGGESTIONS
/-
(1)
When disassembling the engine, memorize well the locations of individual parts
so
that they can be reassembled correctly.
If
you
are uncertain
of
identifying some parts,
it is suggested that tags to be attached to them.
(2)
Have boxes ready to
keep
disassembled parts by
group.
(3)
To
prevent missing and misplacing, temporarily assemble as much as possible each
group
or
set
of
disassembled small parts such as bolts and nuts,etc.
(4)
Carefully handle disassembled parts, and clean them with washing oil.
(5)
Use the correct tools in the correct way.
5-2
SPECIAL
TOOLS
Tool
No.
Use
Tool
209-
95001
-
07
For pulling
off
the
flywheel
Flywheel puller with
bolt
228-
95003-
07
For placing piston ring
Piston ring cqmpressor
.
f
PISTON
RING
COMPRESSOR
FLYWHEEL
PULLER
/-
FIG.
21
-
14
-
