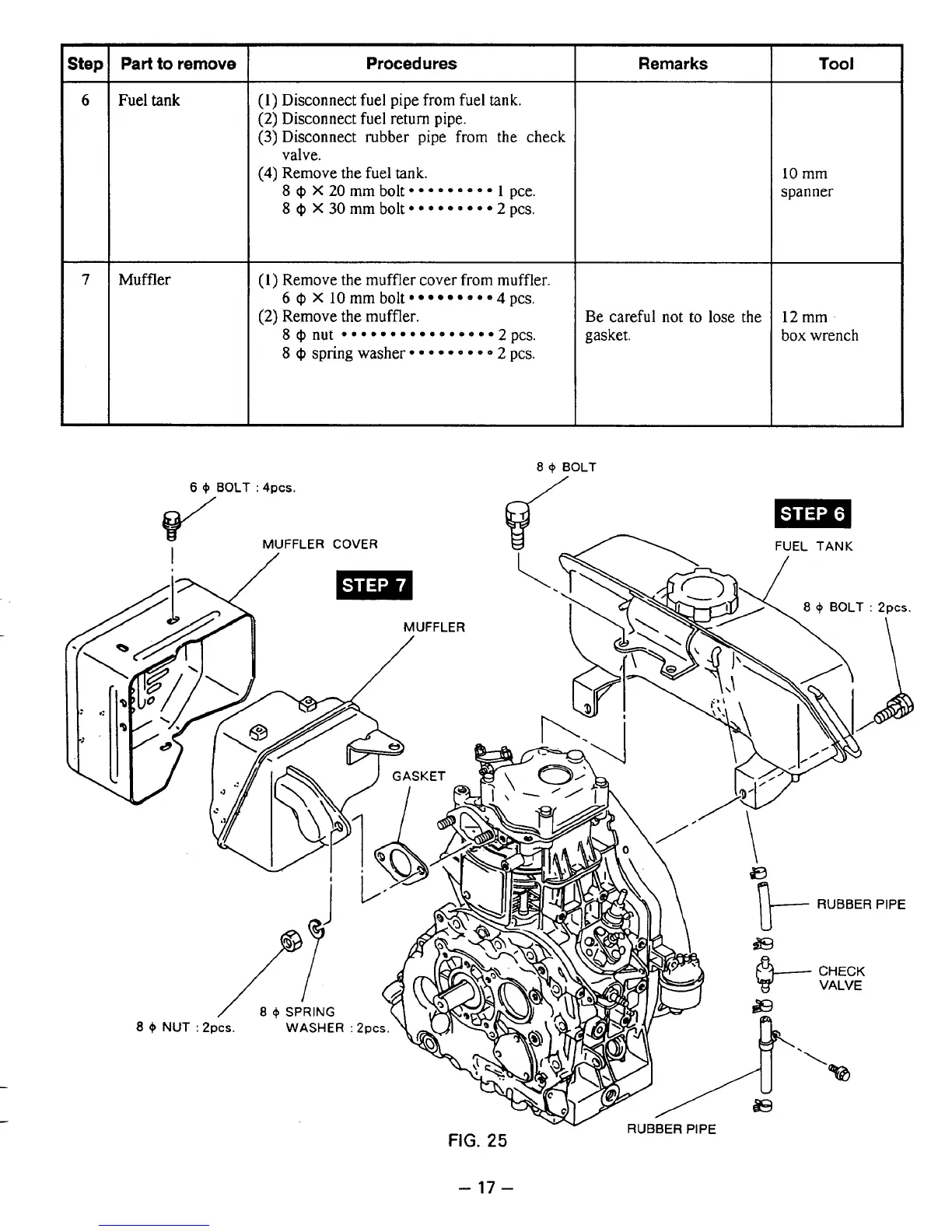

Robin DY23-2D Service Manual

step I Part to remove
6
Fuel tank
7
Muffler
Procedures
I
Remarks
(1) Disconnect fuel pipe from fuel tank.
(2) Disconnect fuel return pipe.
(3) Disconnect rubber pipe from the check
(4) Remove the fuel tank.
valve.
8 Q X 20mmbolt*****e.e* 1 pce.
8 @ X30mmbolt*****~***2pcs.
(1) Remove the muffler cover from muffler.
6 @ X 10 mm bolt 9 e * * 4 pcs.
(2) Remove the muffler.
8 @nut
8 Qspringwasher*****~*~~2pcs.
Be careful not to lose the
gasket.
a + BOLT
6 + BOLT : 4pcs. /
Tool
10 mm
spanner
12 mm
box wrench
- 17 -
