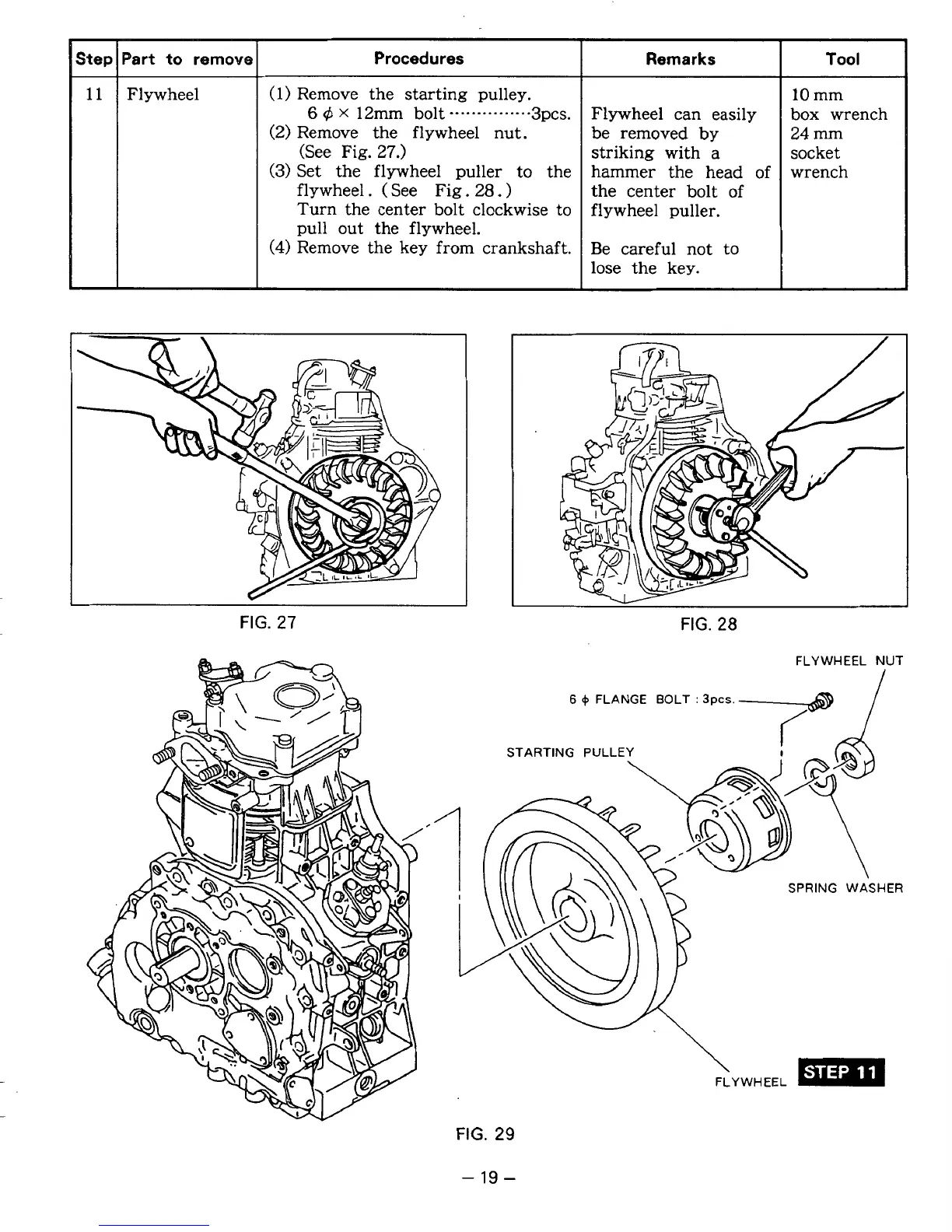

Robin DY23-2D Service Manual

-
Step
11
Part to remove
Flywheel
Procedures
Remarks
(1) Remove the starting pulley.
(2) Remove the flywheel nut.
striking with a
(See Fig. 27.)
be removed by
(3) Set the flywheel puller to the
hammer the head of
flywheel. ( See Fig. 28. )
the center bolt of
Turn the center bolt clockwise to
flywheel puller.
pull out the flywheel.
(4) Remove the key from crankshaft.
Be careful not to
6 ,$ X 12m bolt ....... ..... ... 3pcs.
Flywheel can easily
lose the key.
FIG. 27
Tool
10 mm
box wrench
24 mm
socket
wrench
v
FIG. 28
FLYWHEEL NUT
6 + FLANGE BOLT : 3pcs.-@
STARTING PULLEY
SPRING WASHER
FLYWHEEL
FIG. 29
- 19 -
