6-4
GOVERNOR MECHANISM
AND
OPERATION
6
-
4-
I
MECHANISM
The governor
is
centrifugal flyweight type, which means
a
flyweight is fitted to
the
governor
gear.
The governor sleeve is assembled
so
that it may slide toward the direction
of
the axis of the pump shaft, and it
is
in
contact with the flyweight. The governor
sleeve gets in touch with the governor yoke, and through the governor lever it makes
the
control
rack of injection pump operate. This mechanism enables to maintain constant
operation irrespective
of
load variation.
\
SMOKE
SET
SMOKE
SET
SPRING
Operation when load
is
applied
or
starting.
+
Operation when load is decreased
or
removed.

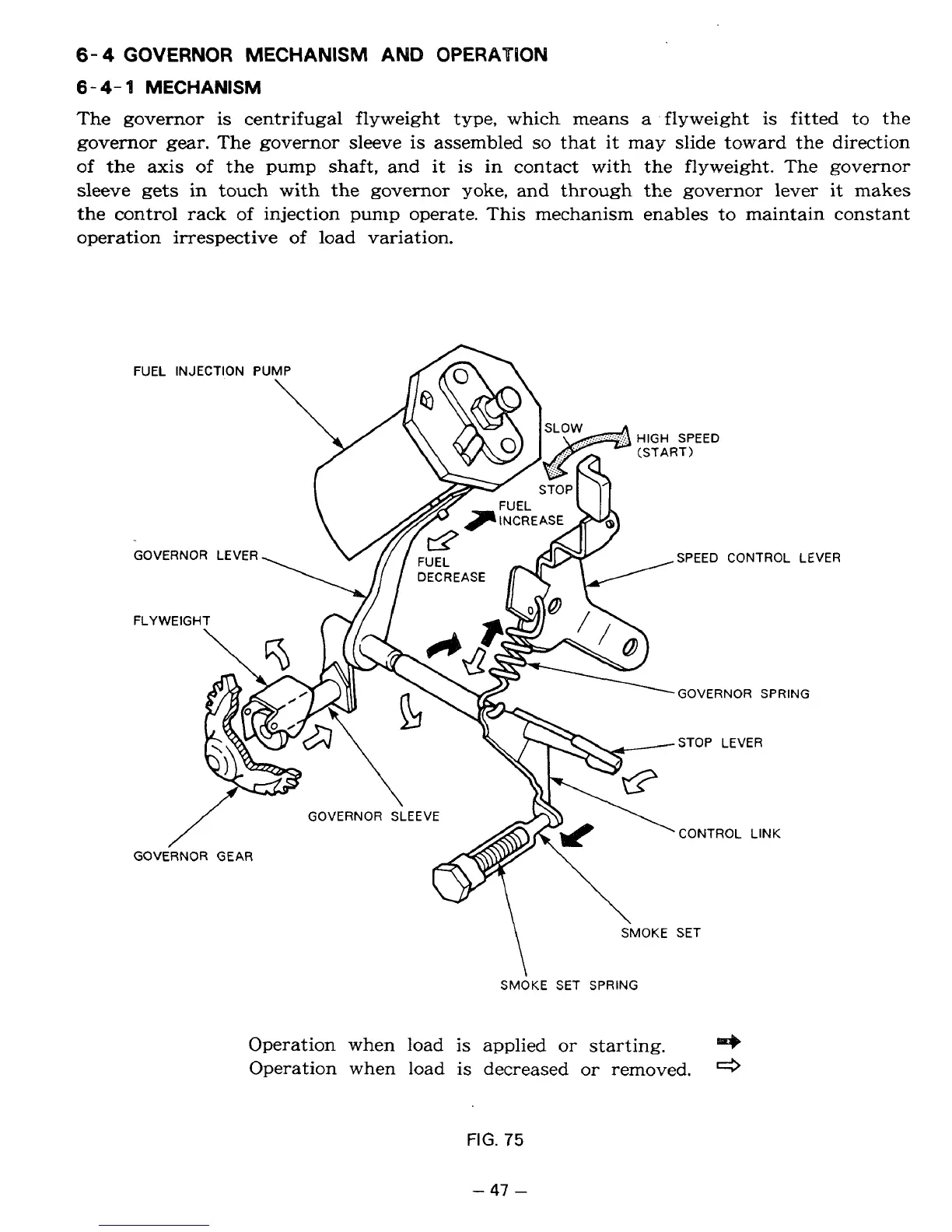

4
FIG.
75
-
47
-
