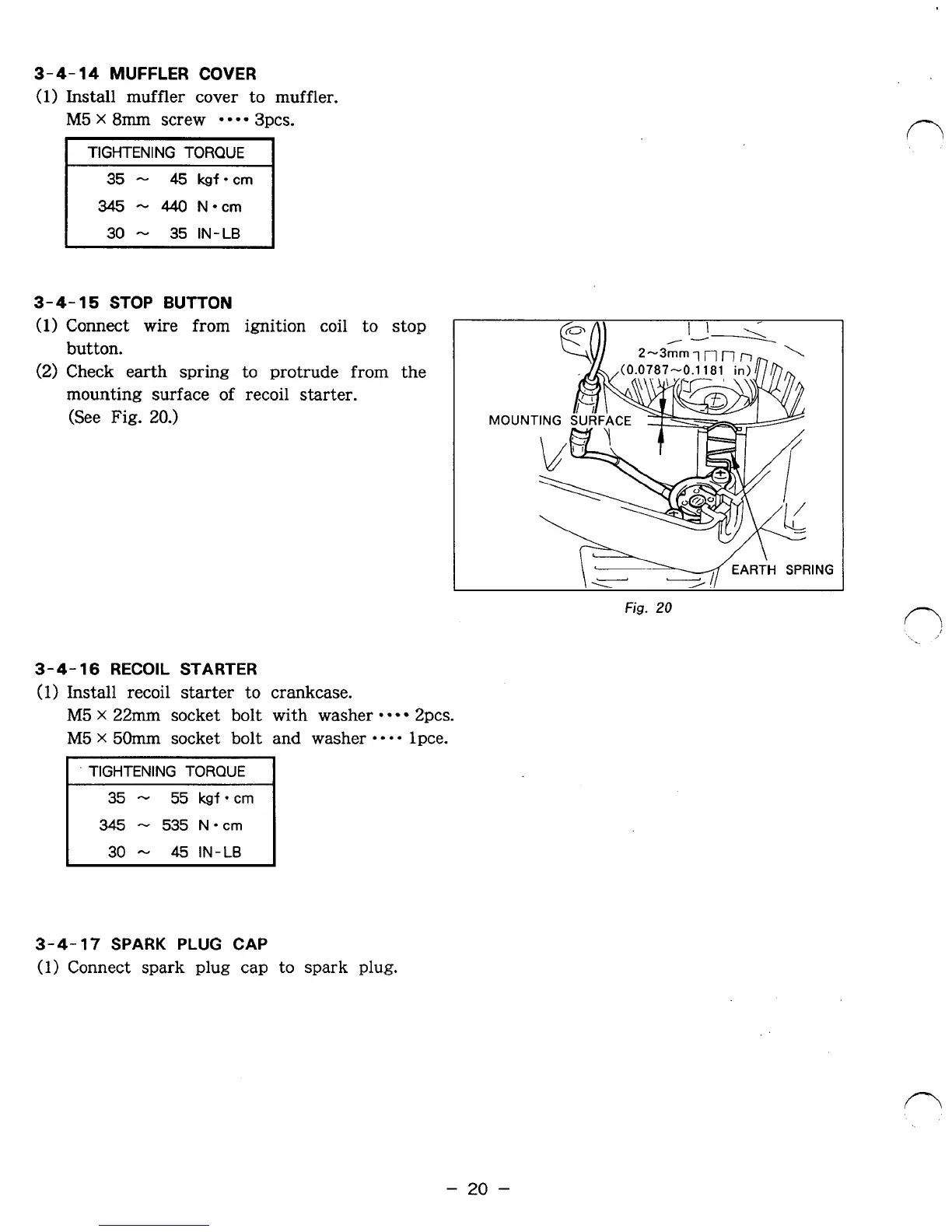

3-4- 14 MUFFLER COVER
(1) Install muffler cover to muffler.
M5 X 8mm screw 3pcs.
I TIGHTENING TORQUE I
35 - 45 kgf-cm
345 - 440 N-cm
I
30 - 35 IN-LB
I
3-4-15 STOP BUTTON
(1) Connect wire from ignition coil to stop
(2) Check earth spring to protrude from the
button.
mounting surface
of recoil starter.
(See Fig.
20.)
Fig. 20
3-4- 16 RECOIL STARTER
(1) Install recoil starter to crankcase.
M5 X 22mm socket bolt with washer 2pcs.
M5 X 50mm socket bolt and washer 0. -0 lpce.
I ' TIGHTENING TORQUE I
35 - 55 kgf *cm
345 - 535 N-cm
30 - 45 IN-LB
3-4-17 SPARK PLUG CAP
(1) Connect spark plug cap to spark plug.
- 20 -
