Robin EC04ER User Manual

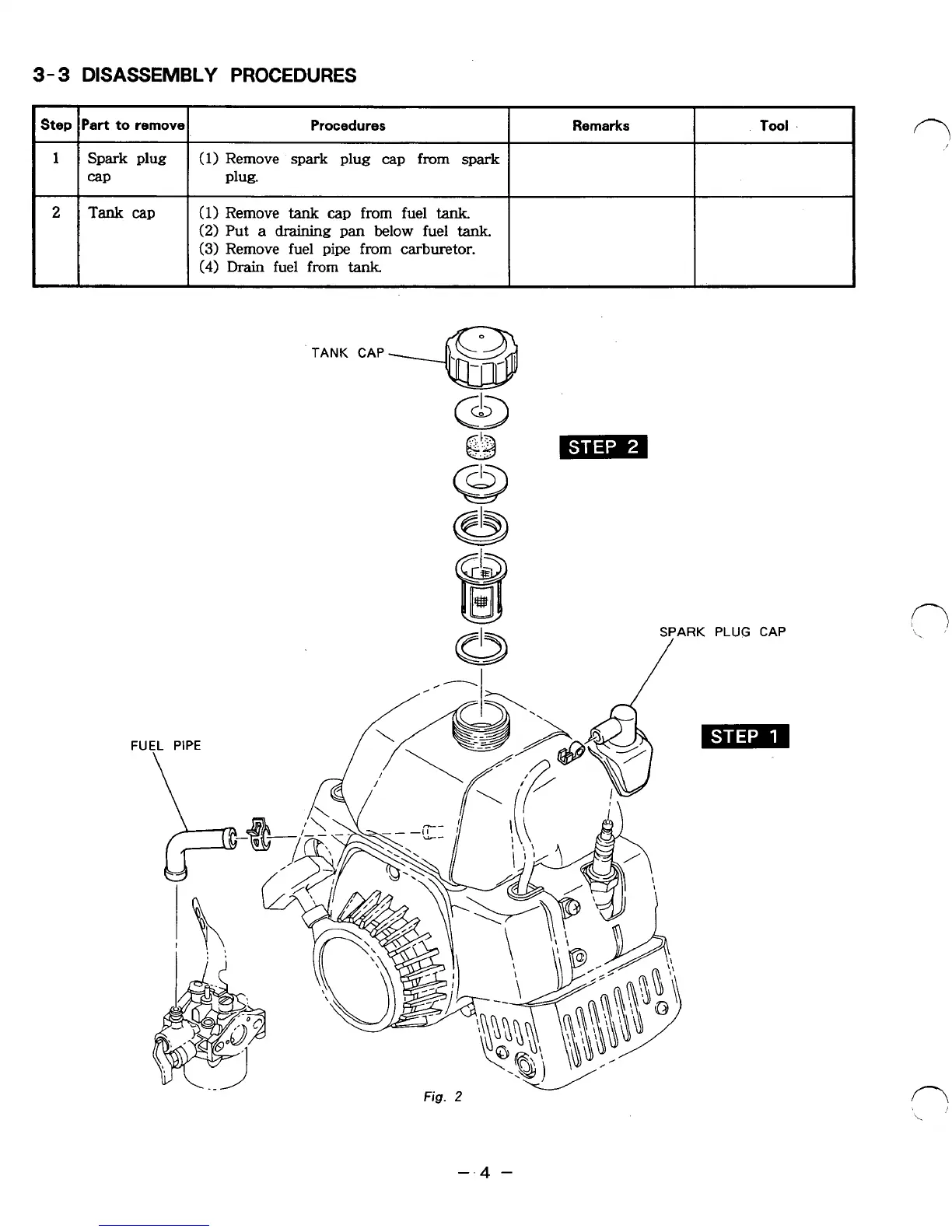

3- 3 DISASSEMBLY PROCEDURES
Step
Tool
Remarks Procedures
Part to remove
1
(1) Remove spark plug cap from spark
Spark plug
cap
plug.
~
2 Tank cap
(2) Put a draining pan below fuel tank.
(1) Remove tank cap from fuel tank.
(3) Remove fuel pipe from carburetor.
(4) Drain fuel from tank.
~ ~ ~~ ~
TANK CAP *
SPARK PLUG CAP
Fig. 2

Robin EC04ER Specifications

General

Brand	Robin
Model	EC04ER
Category	Engine
Language	English
