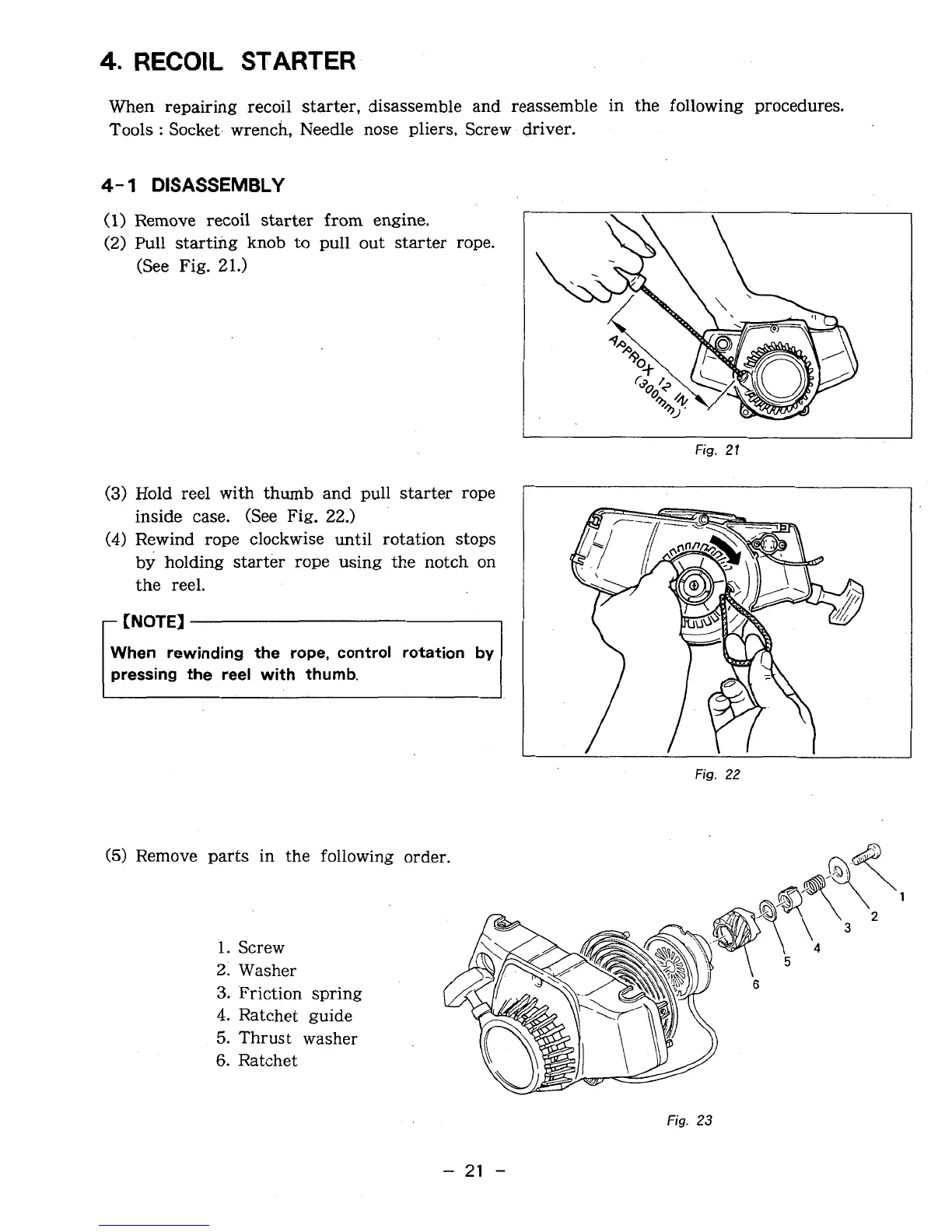

4.
RECOIL
STARTER
When repairing recoil starter, disassemble and reassemble in the following procedures.
Tools
:
Socket. wrench, Needle nose pliers, Screw driver.
4-
1
DISASSEMBLY
(1)
Remove recoil starter from engine.
(2)
Pull starting knob to pull out starter rope.
(See
Fig. 21.)
Fig.
21
(3)
Hold reel with thumb and pull starter rope
inside case. (See Fig. 22.)
(4)
Rewind
rope
clockwise until rotation stops
by holding starter rope using the notch on
the reel.
When rewinding the rope, control rotation by
pressing the
reel
with thumb.
Fig.
22
Remove parts in the following
1.
Screw
2:
Washer
3.
Friction spring
4.
Ratchet guide
5.
Thrust washer
6.
Ratchet
Fig.
23
-
21
-
